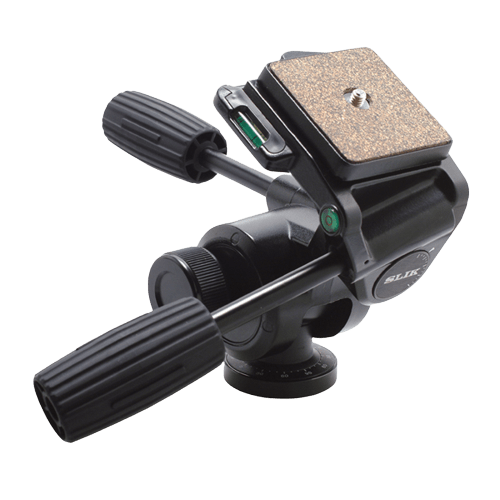

The SLIK SH-807E 3way pan head have a newly designed inner mechanism. This creates smoother movements when used with a heavy camera and lens. These heads are all metal with large quick release plates to securely mount heavy cameras and lenses. The handles have large rubberized grips to make moving and locking down the head much easier and more secure. Both have a larger, easier to use pan lock knob.

Three-axis bubble levels

Equipped bar-shaped bubble levels for horizontal and vertical leveling, and circular bubble level for portrait shooting. It is convenient as a guide of the horizontal setting.

Quick shoe lever with a safety lock

To avoid unexpected wobbling and unlocking the quick release shoe, the double action “safety lock” mechanism will securely hold the quick shoe on the platform and hold heavy camera & telephoto lens set up. Platform will accept DIN standard quick release shoe.

Head front design

By greatly cutting off the front of the pan head, it will avoids contacting large size lens with the pan head, and makes it easy to operate the iris ring.

Specifications

Type of Bubble Level: Double axis bubble level plus a round type bubble level

Size of camera platform: 57x59mm Q.R.S. 6196

Camera mounting screw: U1/4

Tripod mounting screw: U3/8

Height: 150mm

Weight: 1,000g

Load capacity: 10kgs

In The Box

SLIK SH-807E 3 Way Head
