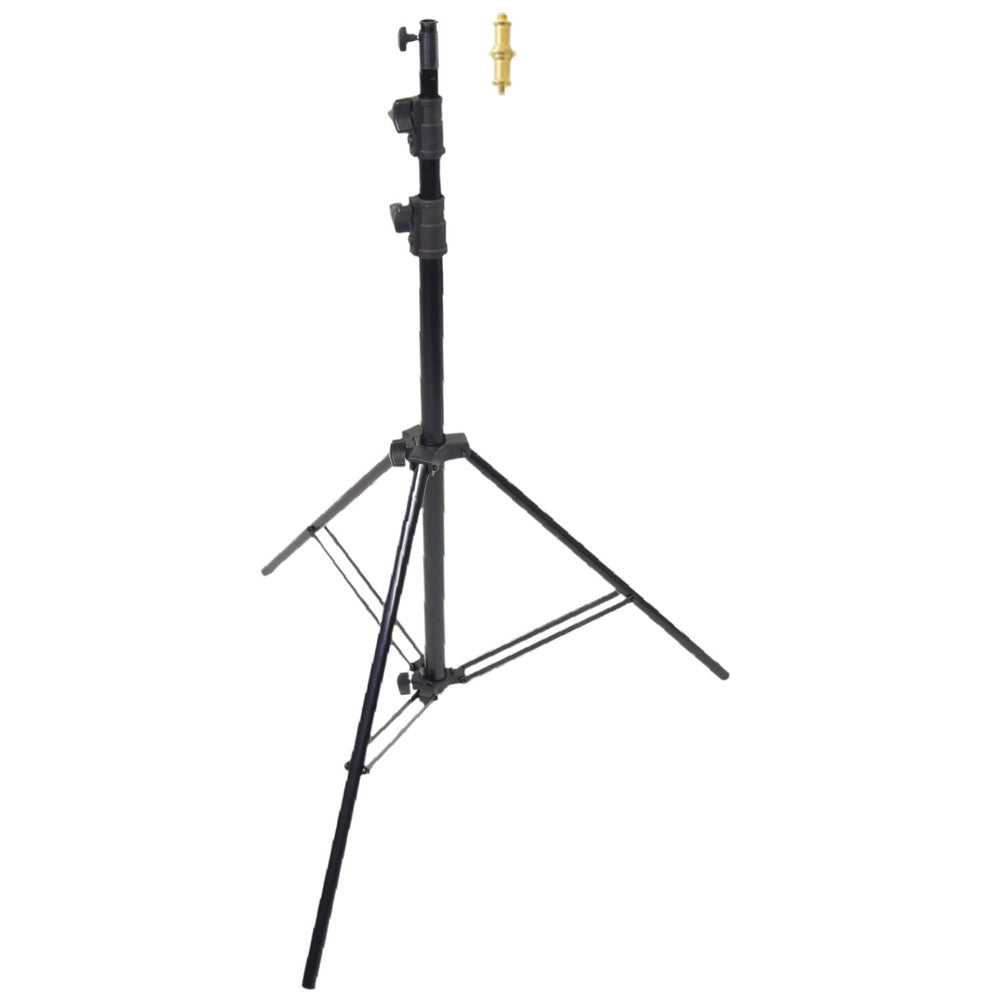

A lightweight aluminium baby stand: 2.9m max reach and 10kg payload, with the stand itself at just 2.2kg. Two risers, three sections, black anodised.

The stand top is a 16mm (5/8″) baby receiver — the socket a lighting fixture drops into — fitted with a detachable KS-017 Universal Adapter Spigot. Because the stud lifts out, the receiver takes a fixture’s own spigot directly, and the KS-017 itself carries 3/8″-16 and 1/4″-20 male threads for cameras, monitors and small accessories.

A 109cm footprint on a 2.2kg stand, wide enough to carry a large softbox without pulling to one side. Dual leg struts, assembled with nuts and bolts rather than rivets so tension can be adjusted and parts serviced. A nylon lobe knob on a stainless steel bolt, a stainless heli-coil insert in the die-cast riser so the threaded hole cannot strip, an oversized brake shoe for a positive lock-off, and padded feet to protect both the legs and the floor.

Key Specifications

• Maximum height 2.90 m
• Minimum operating height 1.00 m
• Closed length 1.01 m
• Maximum load 10 kg
• Two risers, three sections — 35mm, 30mm, 25mm
• Leg diameter 22 mm
• Stand top: 16mm (5/8″) baby receiver with detachable KS-017 universal stud
• Dual leg struts, assembled with nuts and bolts
• Footprint 109 cm
• Black anodised aluminium
• Weight 2.2 kg
• Optional caster set: KC-080R

The 169M is supplied with the KS-017 Universal 16mm Light Stud, which we also stock separately as a spare.
