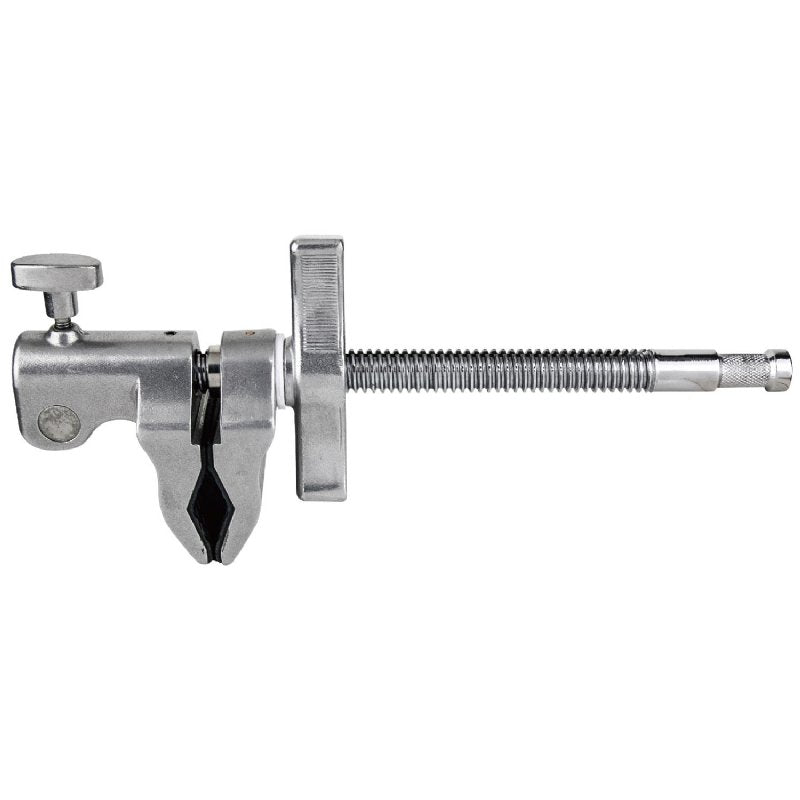

A compact Cardellini-style end-jaw clamp in die-cast aluminium, rated to 30kg. The jaws open to 101.6mm, which covers most tube, timber and plank, in a clamp short enough to work where there is no room to swing a long one.

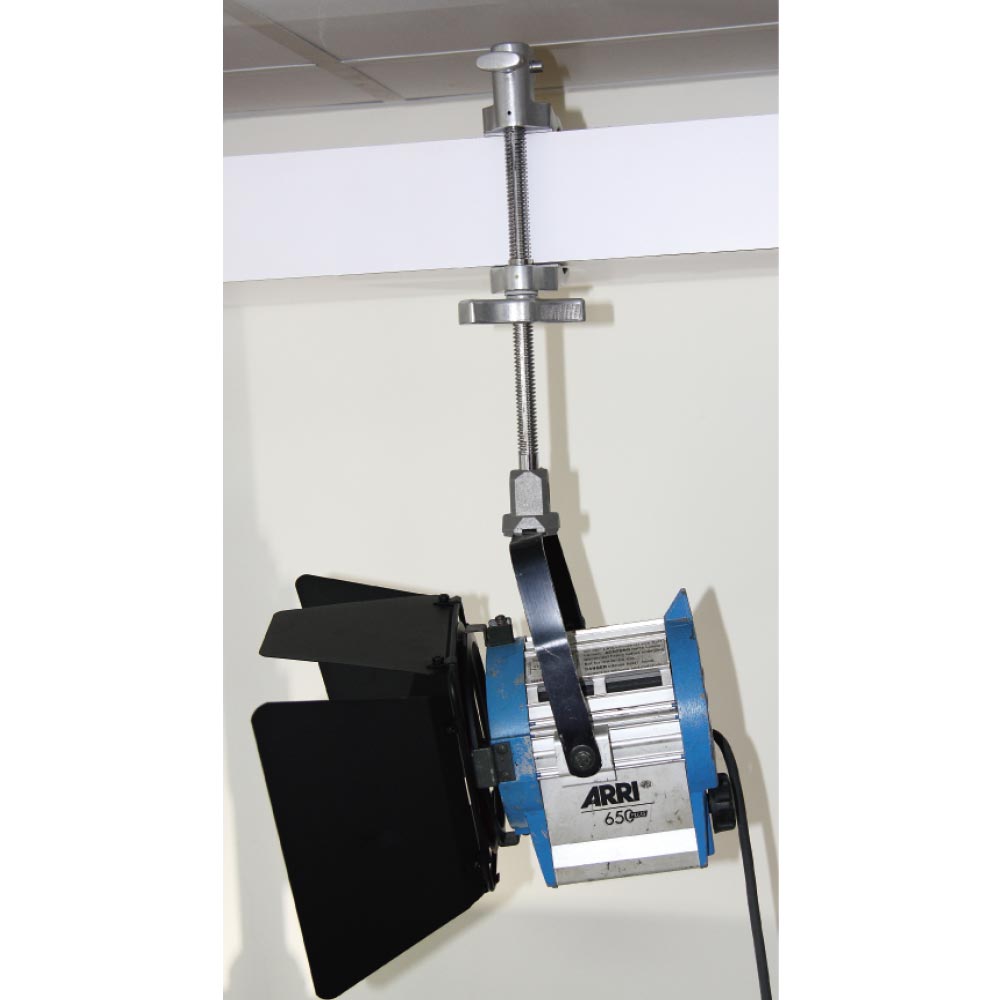

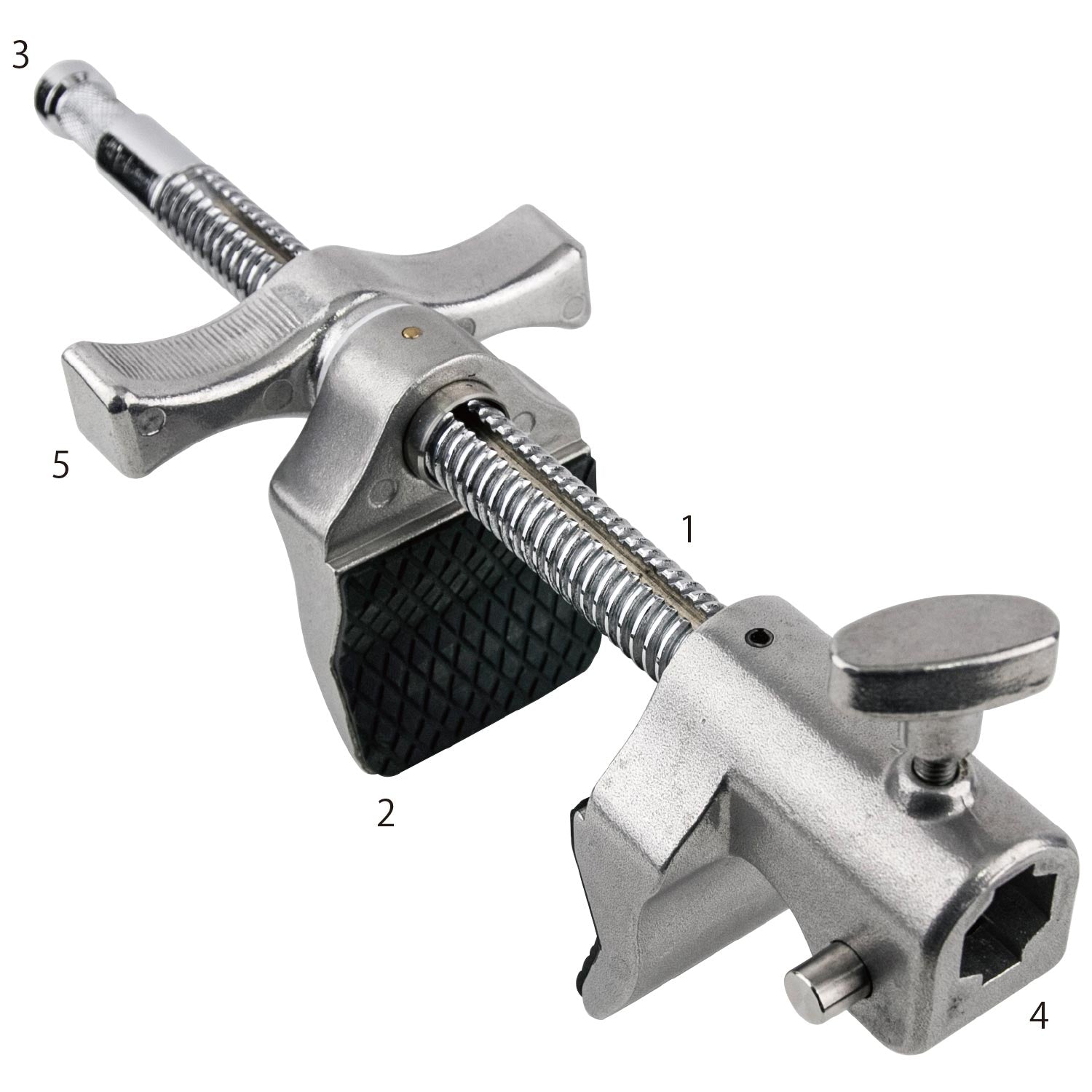

A grooved threaded shaft keeps both jaws facing the same way as you wind them in, so they close square on the work instead of twisting out of line. The rubber pads are mechanically interlocked into the aluminium jaws rather than glued on, and hold in both vertical and horizontal mounting. The oversized handle gives you the leverage to tighten it properly.

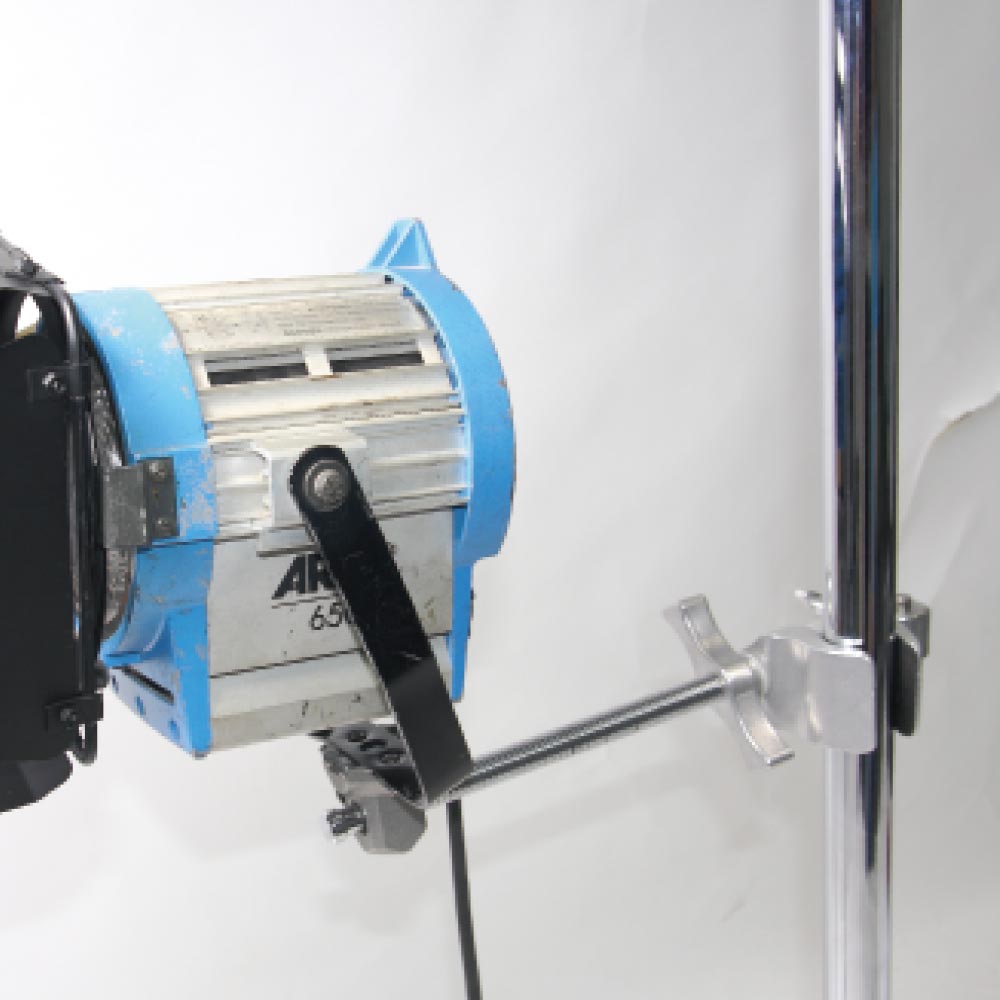

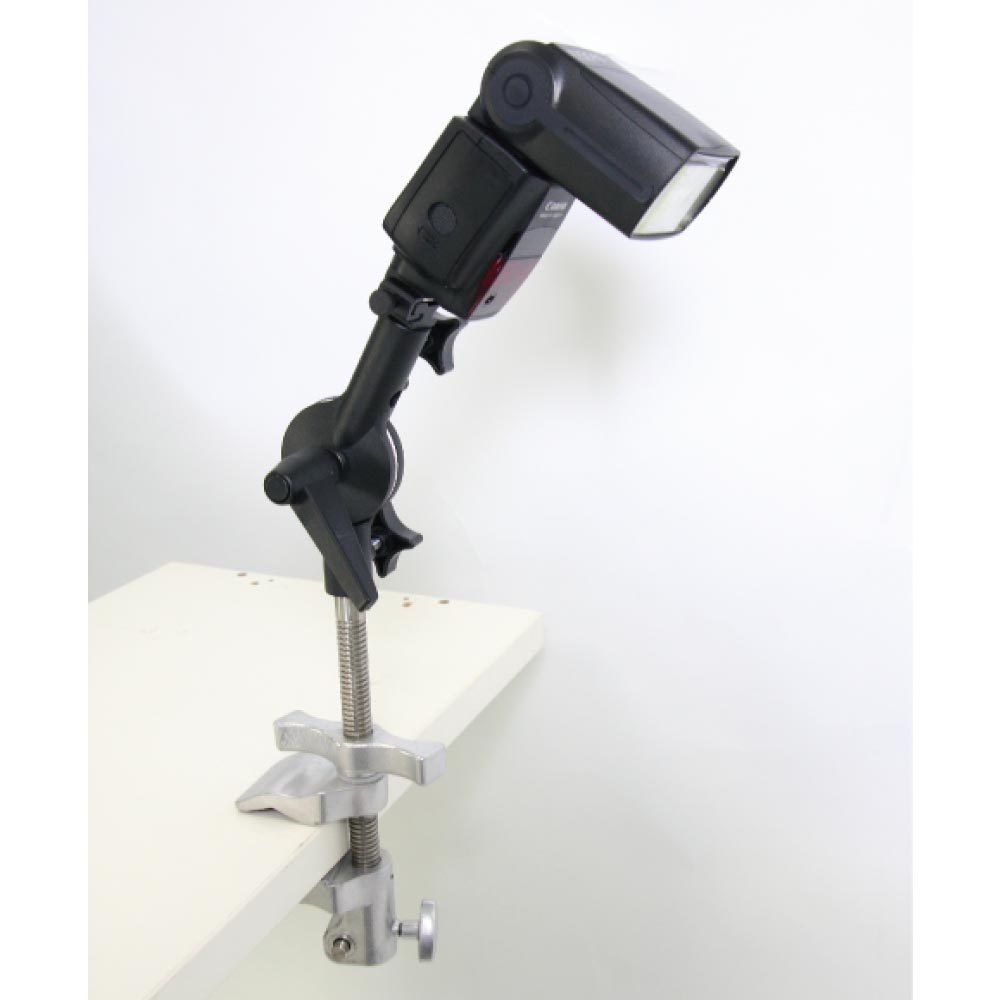

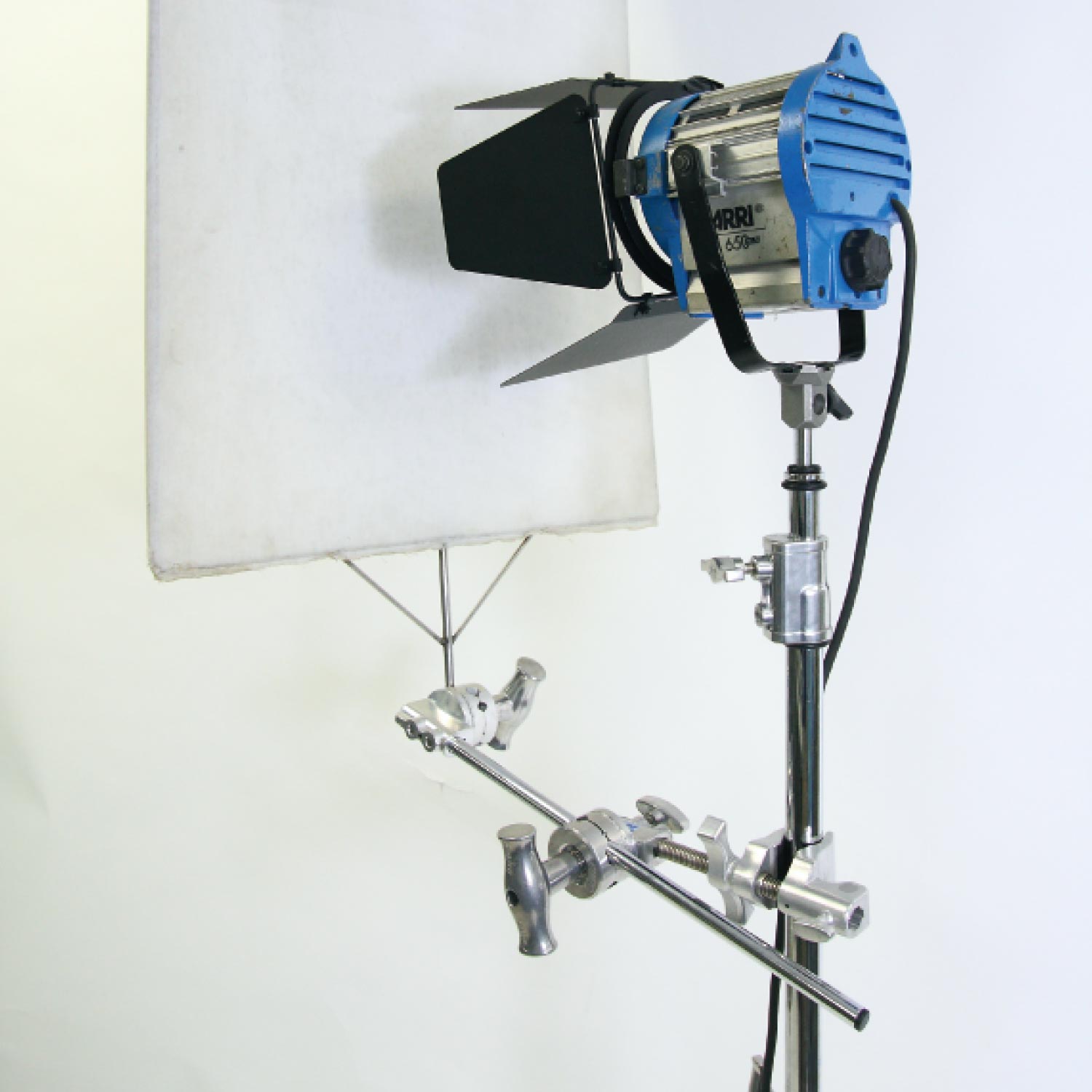

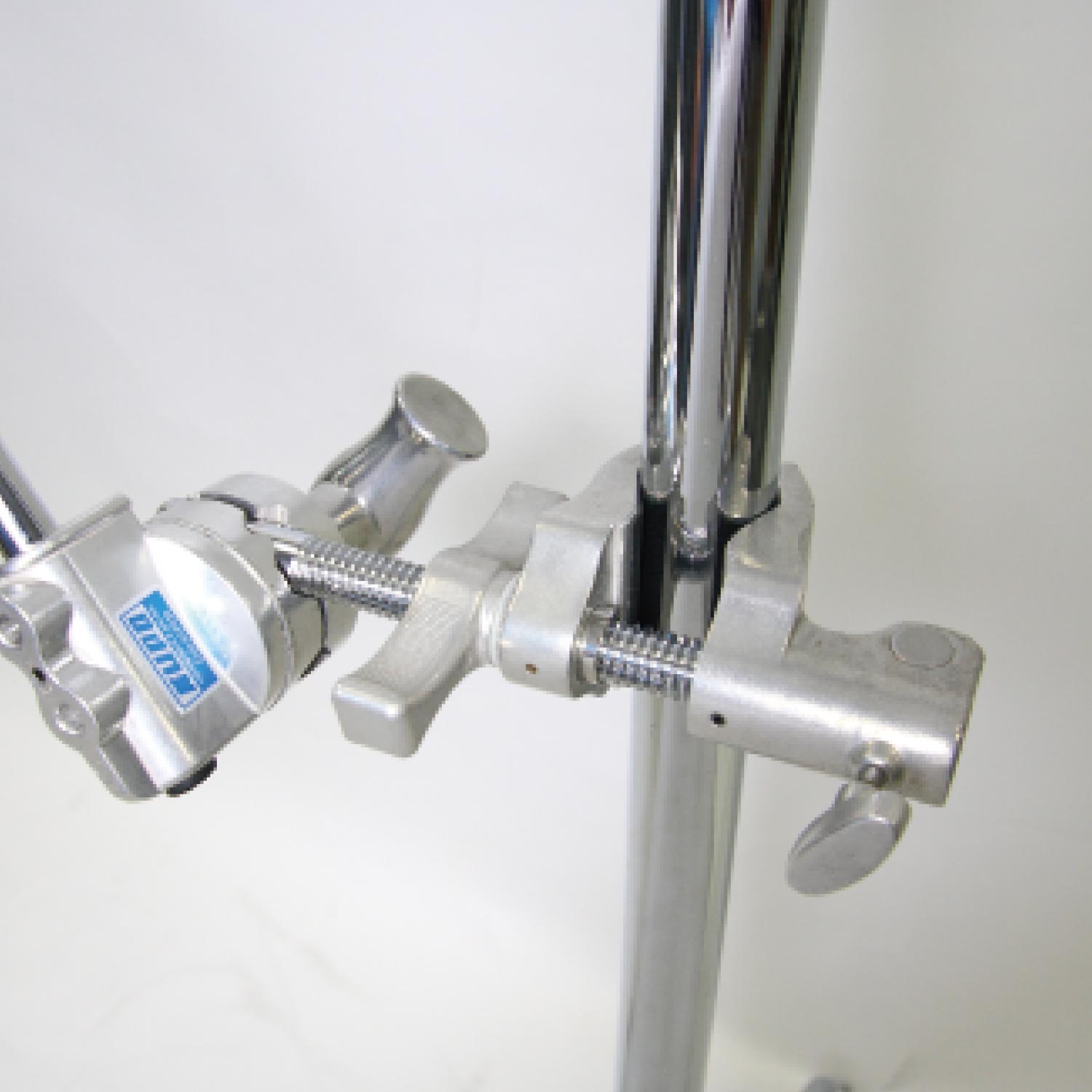

Two mounting points. The threaded shaft ends in a 16mm (5/8″) baby pin with a knurled neck, so a receiver’s locking screw bites rather than slips. The body carries a hex socket for Convi and Super Clamp accessories, and it will also take a plain round 16mm baby stud, held by the locking screw.

Key Specifications

• Jaw capacity up to 4″ (101.6mm)
• Maximum load 30 kg

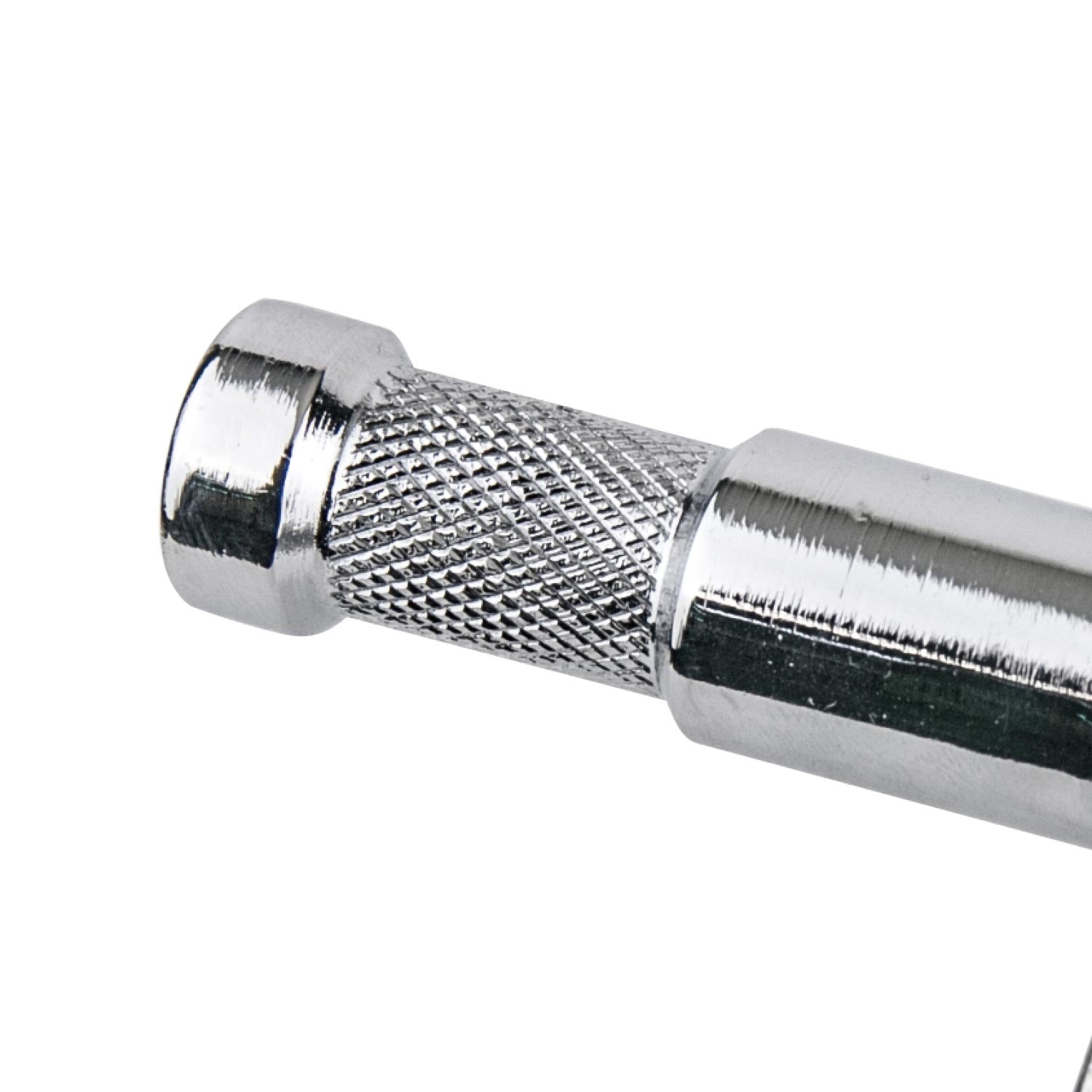

• 16mm (5/8″) baby pin on the end of the shaft, knurled neck
• Hex socket for Convi and Super Clamp accessories, also accepts a round 16mm baby stud

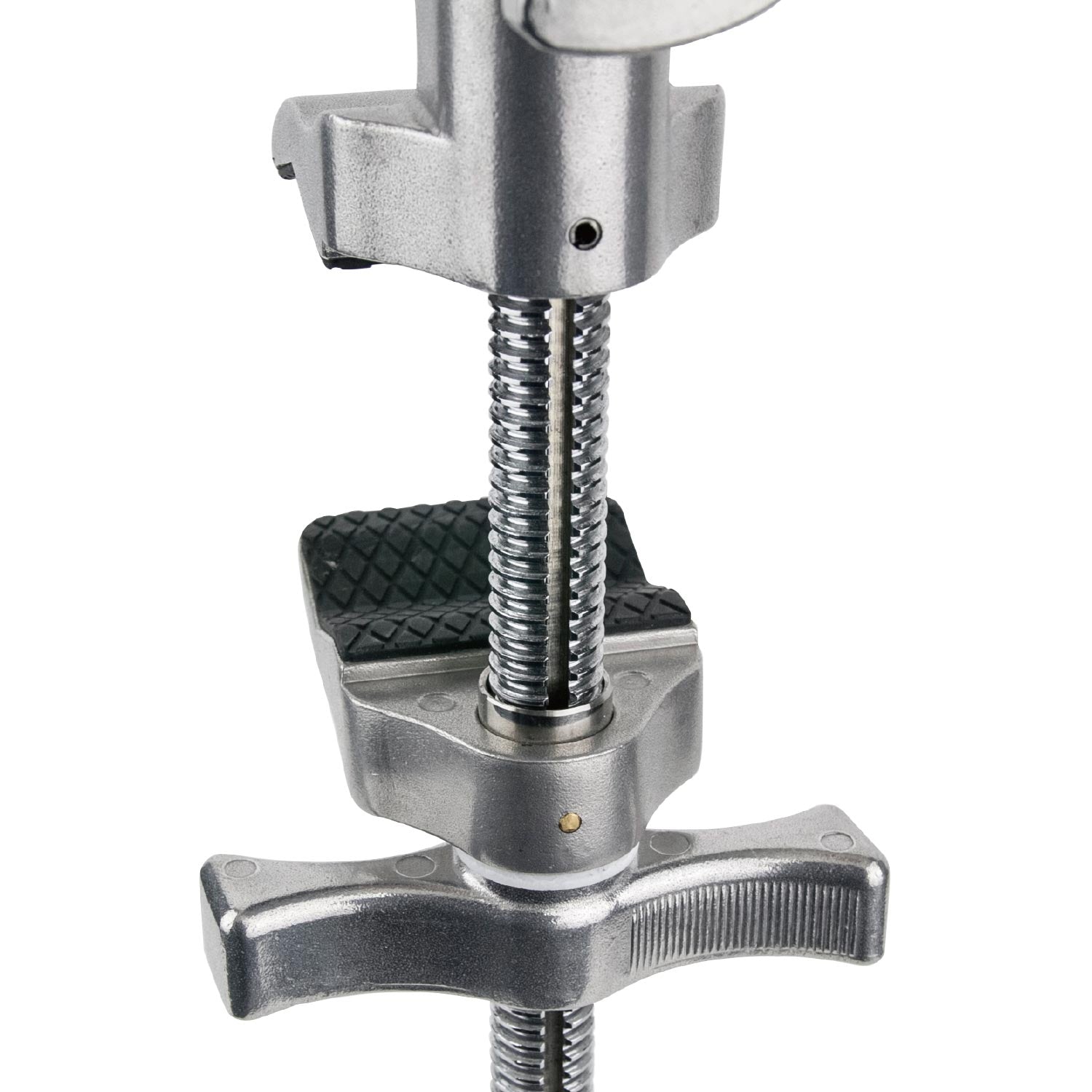

• Anti-twist grooved shaft keeps both jaws aligned

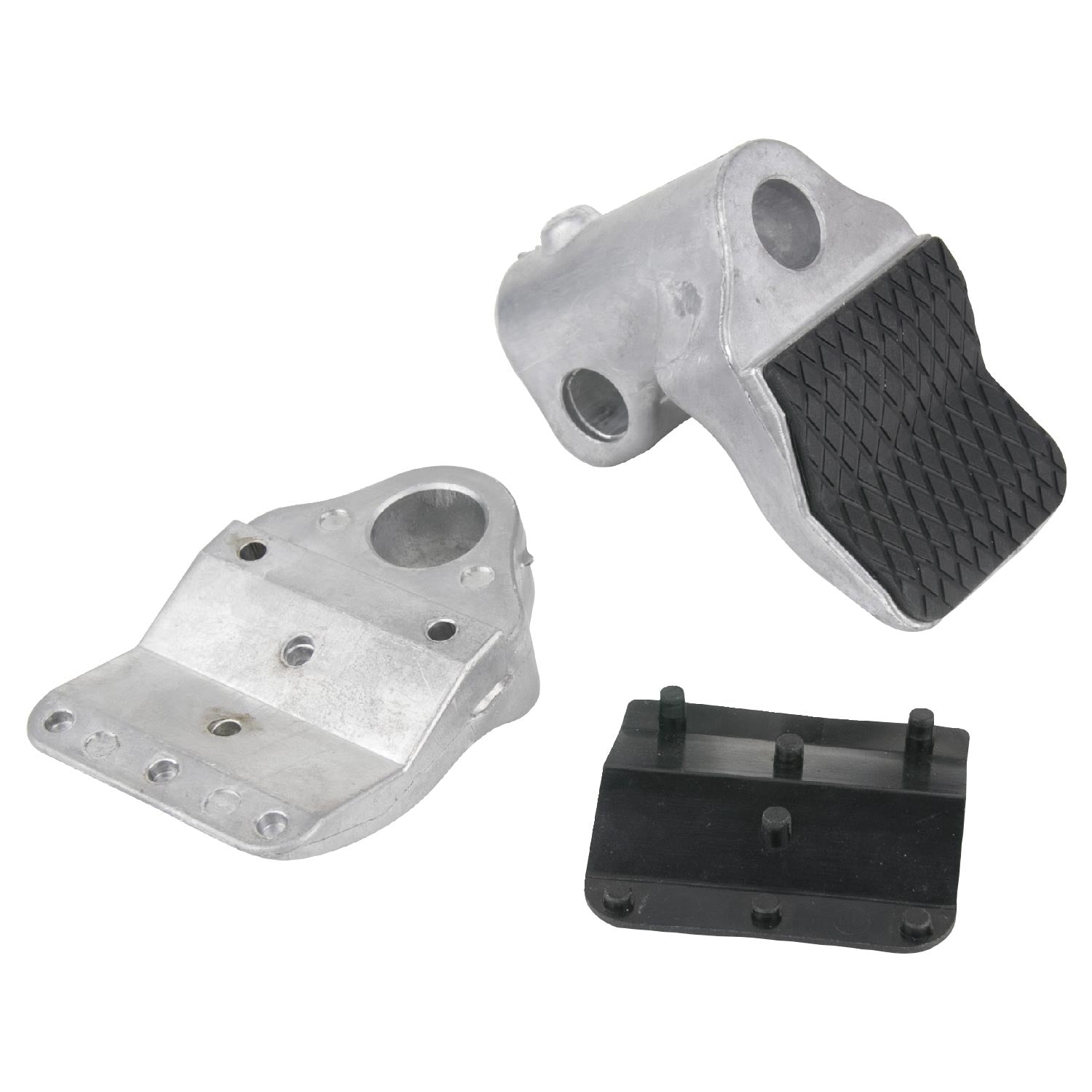

• Rubber jaw pads mechanically interlocked into the jaws
• Die-cast aluminium body

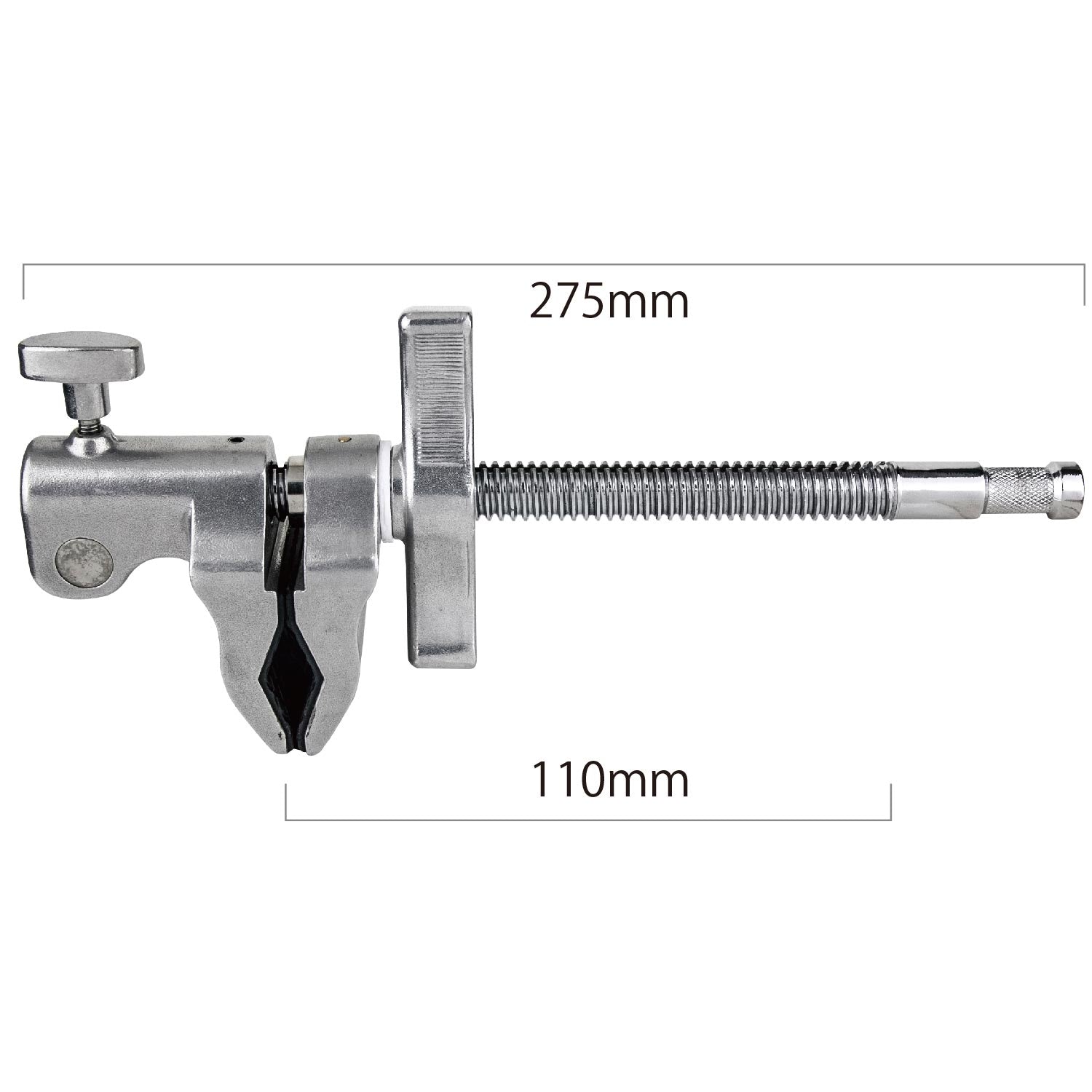

• 275 mm overall length
• Weight 0.67 kg

Note: a hex-ended accessory keys into the socket’s flats and resists rotation better under heavier loads. A round stud is held by the locking screw alone.
