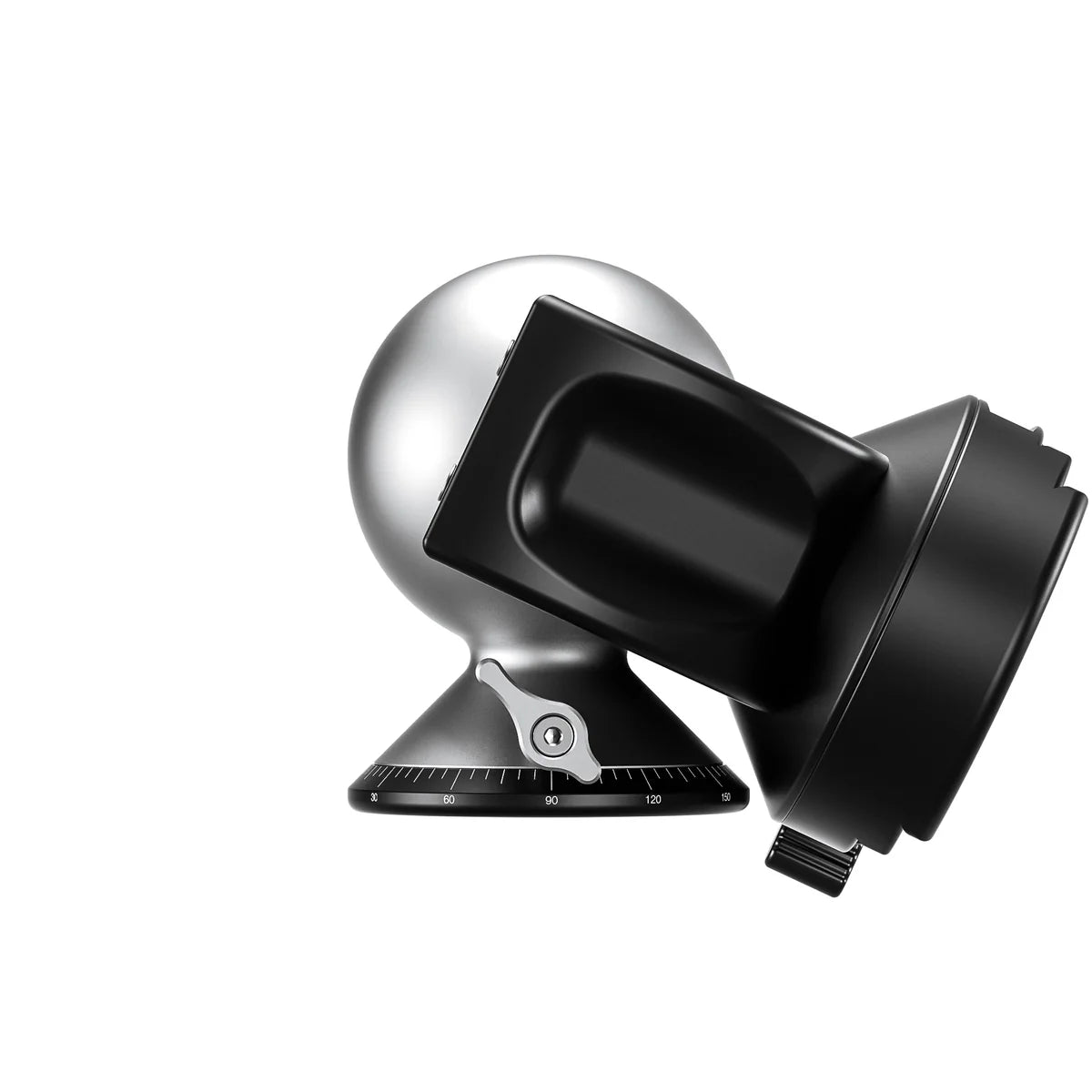

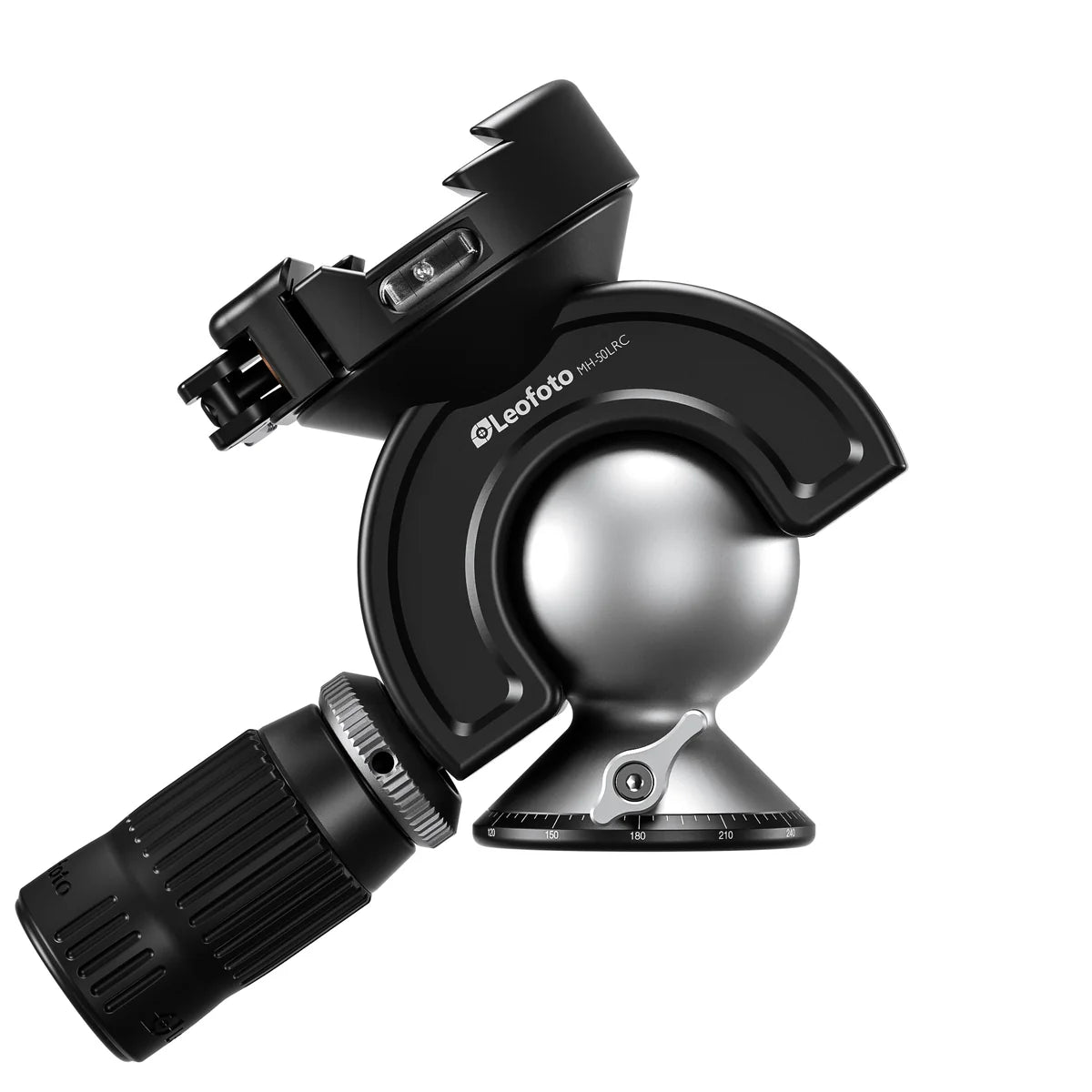

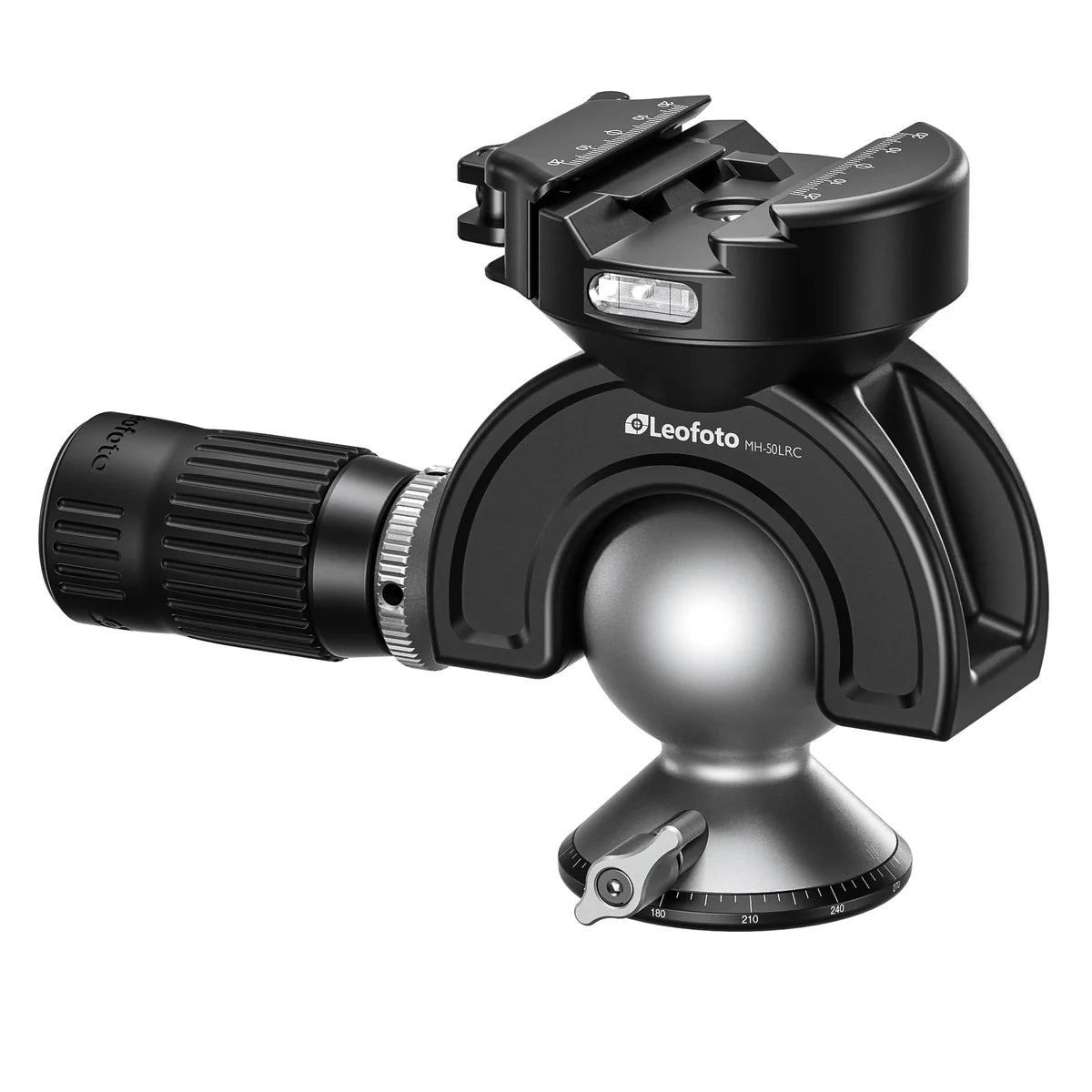

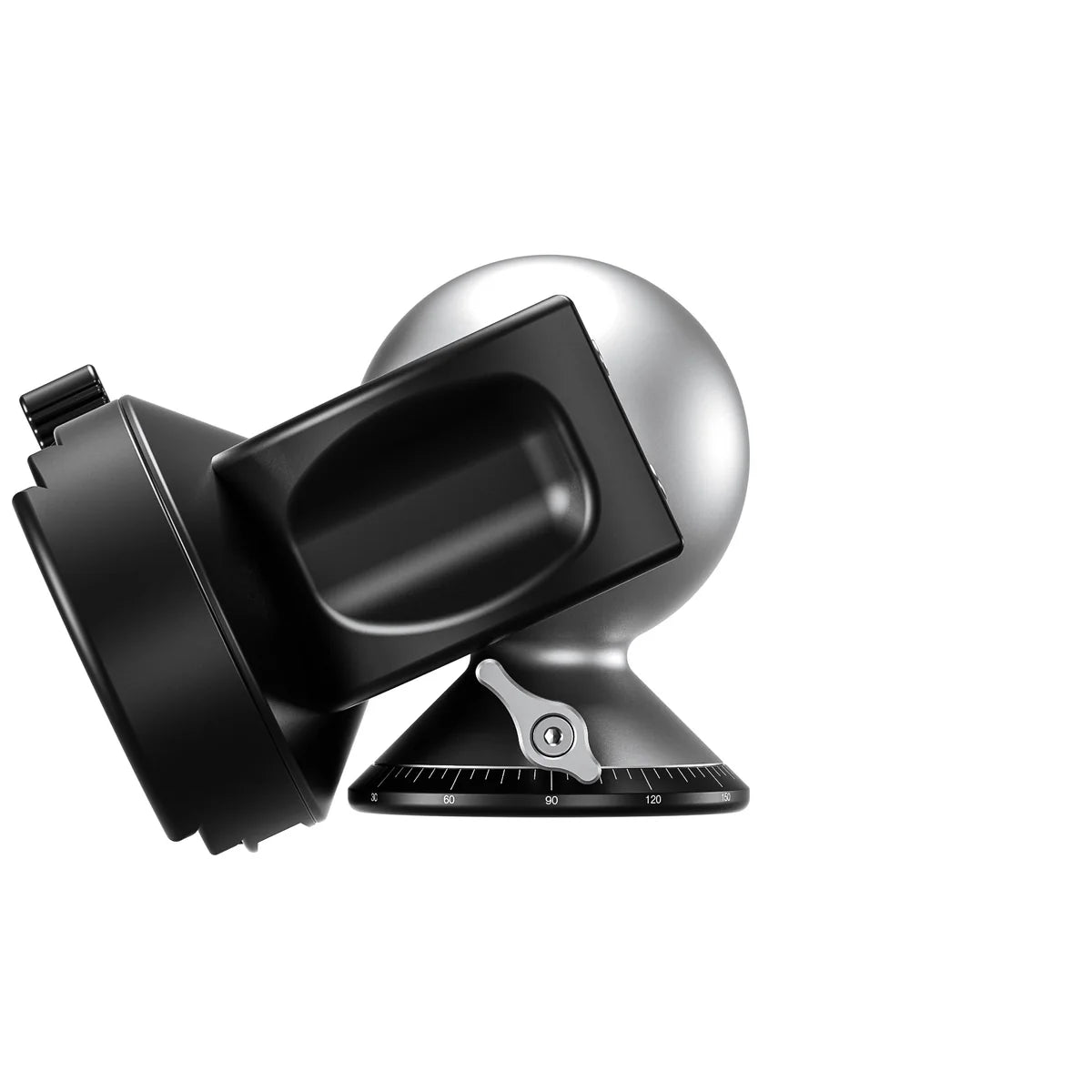

The MH-50LRC is a heavy-duty ball head designed for precision rifle shooting, observation and demanding photographic applications. Its 50mm ball provides smooth movement, a wide ±55° tilt range and a load capacity of up to 25kg.

The handlebar-style control allows the ball to be released, positioned and locked using one hand. An integrated friction adjustment lets you fine-tune the resistance, while the extendable handle provides better control when wearing gloves.

The hybrid lever-release clamp accepts both Arca-Swiss and Picatinny rails. A separate 360° panning base allows controlled horizontal tracking without releasing the main ball.

Key Features

• One-handed handlebar control
• Adjustable friction
• Arca-Swiss and Picatinny compatible
• 50mm precision-machined ball
• ±55° tilt range
• Independent 360° panning base
• 25kg maximum load capacity
• CNC-machined aluminium construction
• Quick-release plate not included

Specifications

• Maximum load: 25kg
• Ball diameter: 50mm
• Base diameter: 55mm
• Height: 117mm
• Weight: 756g
• Tripod mounting thread: 3/8″
• Clamp compatibility: Arca-Swiss and Picatinny
• Material: Aluminium
