The Evoke 150C is a 150W all-in-one full-colour spot light. Lamp head, control unit and power supply share one IP66 magnesium-alloy body of 2.11 kg, and it runs from mains, a V-mount battery via D-Tap, or a USB-C PD 3.0 source.
It uses the eight-colour Nebula C8 engine and the FE mount, whose electronic contacts let the fixture recognise FE accessories and drive the FL-12E motorised fresnel. Nanlite FM-mount modifiers also fit.

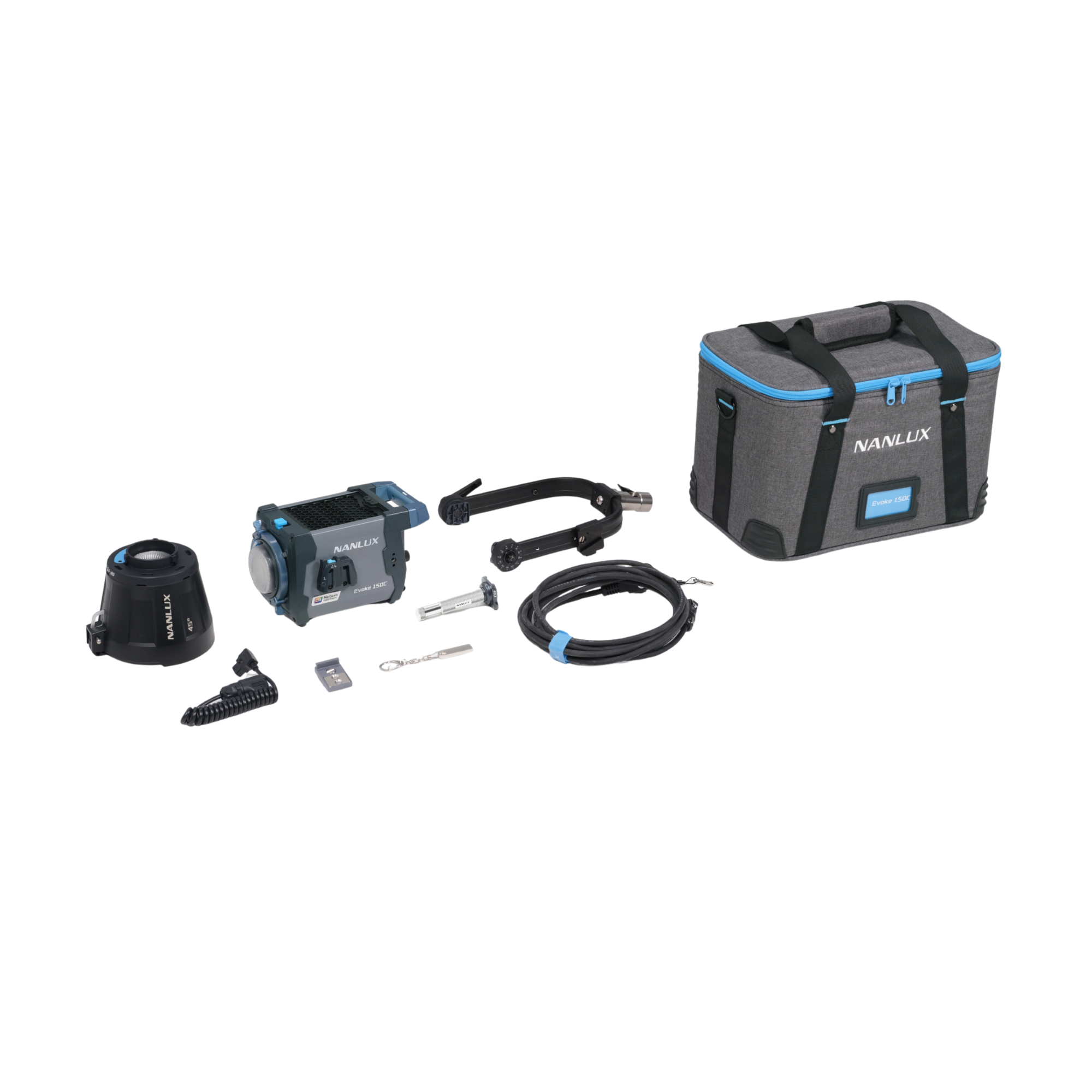

In the box
- Evoke 150C
- Yoke
- RF-FE-45 45° FE mount reflector
- AS-BP-QRS 5/8″ baby pin with quick release plate
- 4.5 m AC power cable
- D-Tap cable
- AS-MB-1 magnetic base
- USB flash drive
- Carrying bag
- User manual
Key features
- CCT 1 000K to 20 000K with ±200 green/magenta across the range
- CRI 98, TLCI 98, TM-30 Rf 96 / Rg 100 (Nanlux average values)
- 22 230 lux at 1 m (5600K) with the included 45° reflector; 83 500 lux with the optional 25°
- Dimming 0.0–100.0% in 0.1% steps, fully linear
- Control: on-board, Nanlink app 2.0, built-in CRMX, NFC, optional WS-RC-C2 remote and WC-EXT wired controller; DMX/RDM and Art-Net/sACN via the AS-EXT adapters
- Smart fan averages 24 dB(A); fan-off mode limits output to 15%
Specifications
| Rated power | 150W |
|---|---|
| Input | AC 100–240V 50/60Hz 2A max; DC 14.4–28V; USB-C PD 3.0 (12–28V) 60W min |
| Beam angle | 47° (bare) |
| Light engine | Nebula C8 (dR, R, A, L, G, C, B, I) |
| CCT | 1 000K – 20 000K, G/M ±200 |
| CRI / TLCI | 98 / 98 (average) |
| TM-30 | Rf 96 / Rg 100 (average) |
| Dimming | 0.0–100.0% in 0.1% steps |
| IP rating | IP66 |
| Mount | FE (FM compatible) |
| Size | 209 × 147 × 127 mm |
| Weight | 2.11 kg head; 2.65 kg with yoke |
