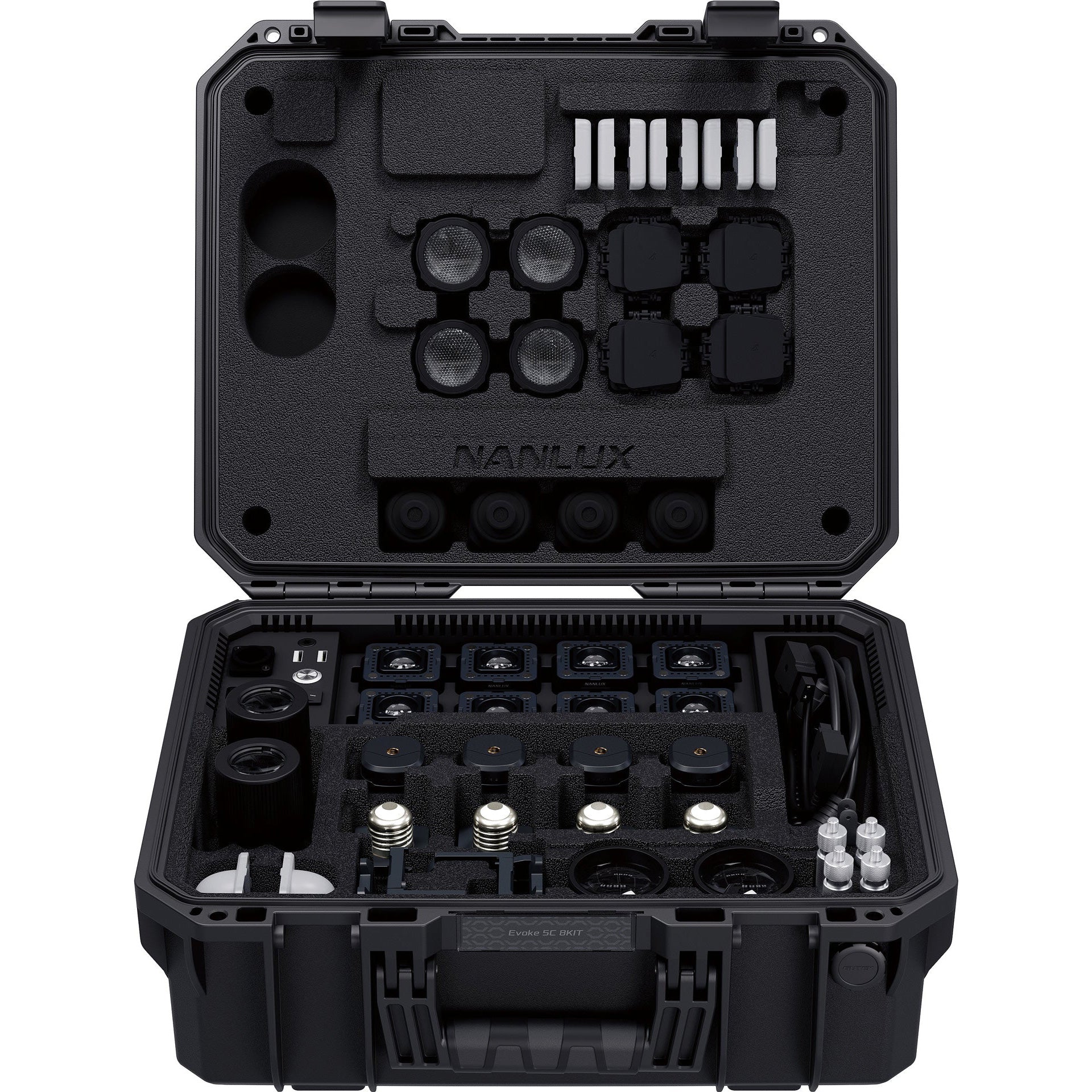

The Evoke 5C 8KIT holds eight Evoke 5C fixtures, each with a CRMX module for wireless DMX, plus modifiers, mounts and power accessories in a charging case with a slot for every item. The case is based on the GUTEK T-230, is IP67 rated and impact resistant, and charges all eight fixtures and four battery grips at once from mains, D-Tap or USB-C PD.

The Evoke 5C is a 6W full-colour point source measuring 56 × 44 × 45 mm and weighing 160 g, IP67 rated, running the eight-colour Nebula C8 engine on a built-in battery.

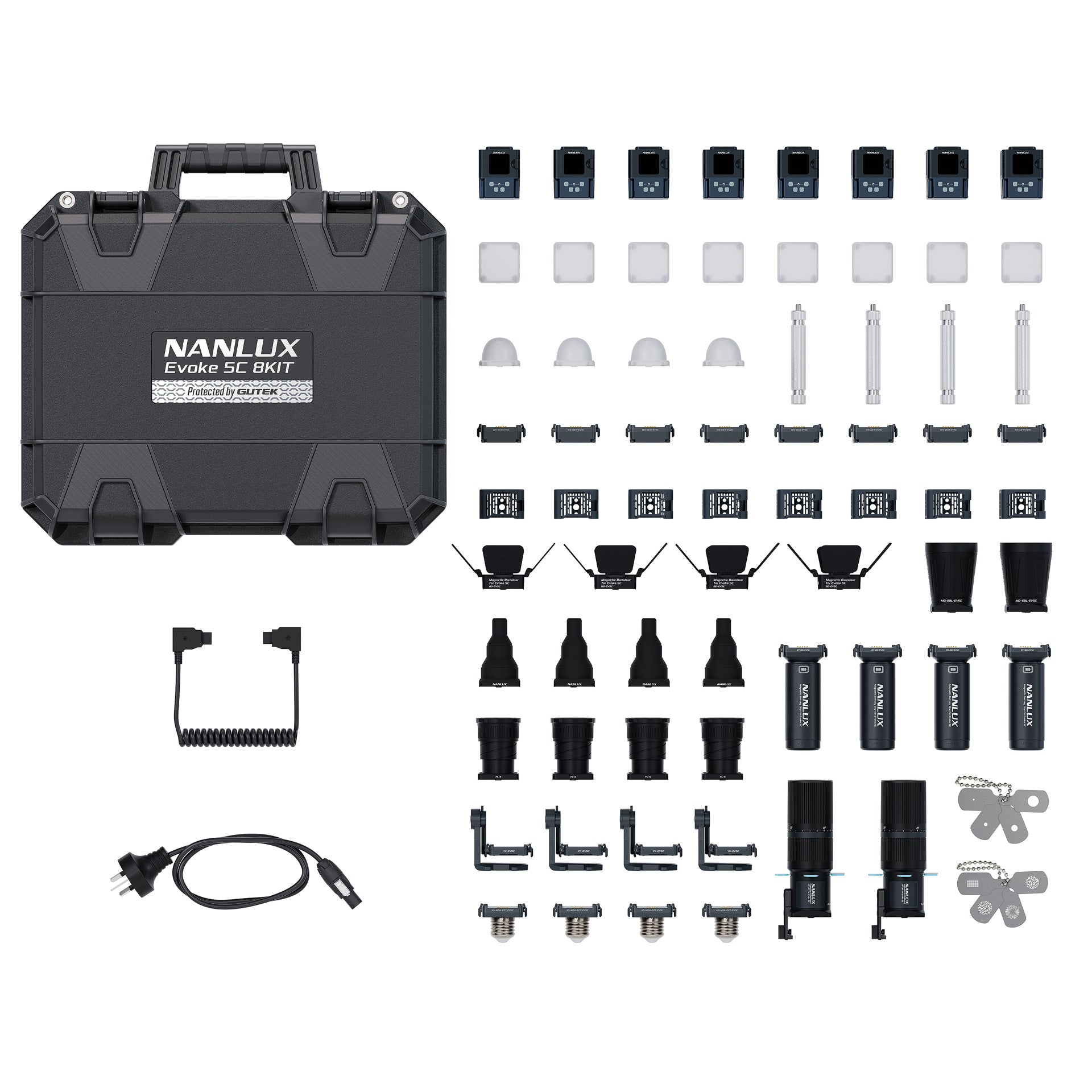

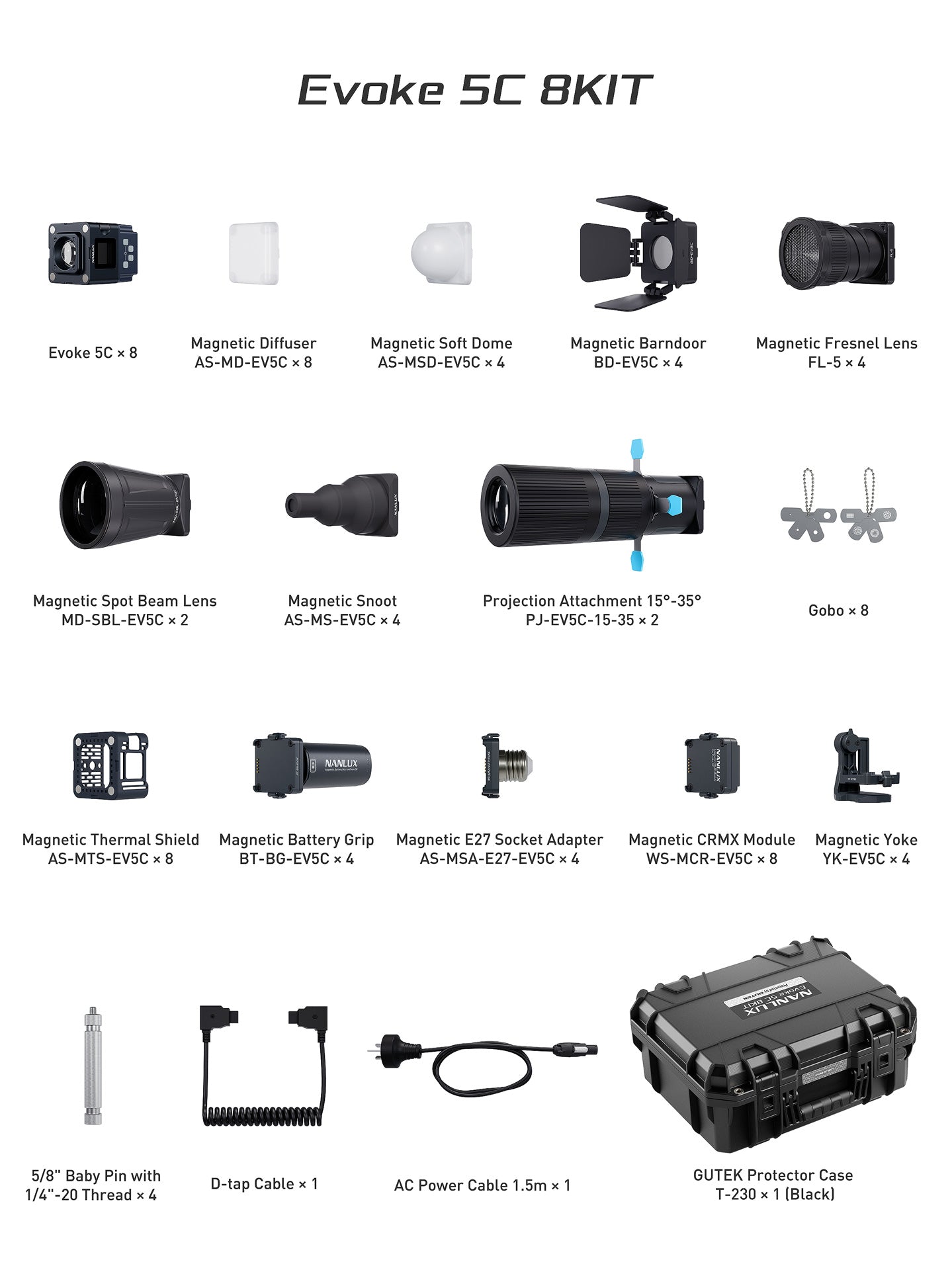

In the box

• 8 × Evoke 5C
• 8 × magnetic diffusers
• 4 × FL-5 magnetic fresnel lenses
• 4 × magnetic soft domes
• 4 × magnetic barndoors
• 4 × magnetic snoots
• 2 × magnetic spot beam lenses
• 2 × projection attachments 15°–35°
• 8 × gobos
• 4 × magnetic yokes
• 8 × magnetic thermal shields
• 4 × magnetic battery grips
• 4 × magnetic E27 socket adapters
• 8 × magnetic CRMX modules
• 4 × 5/8″ baby pins with 1/4″-20 thread
• 1.5 m AC power cable
• D-Tap cable

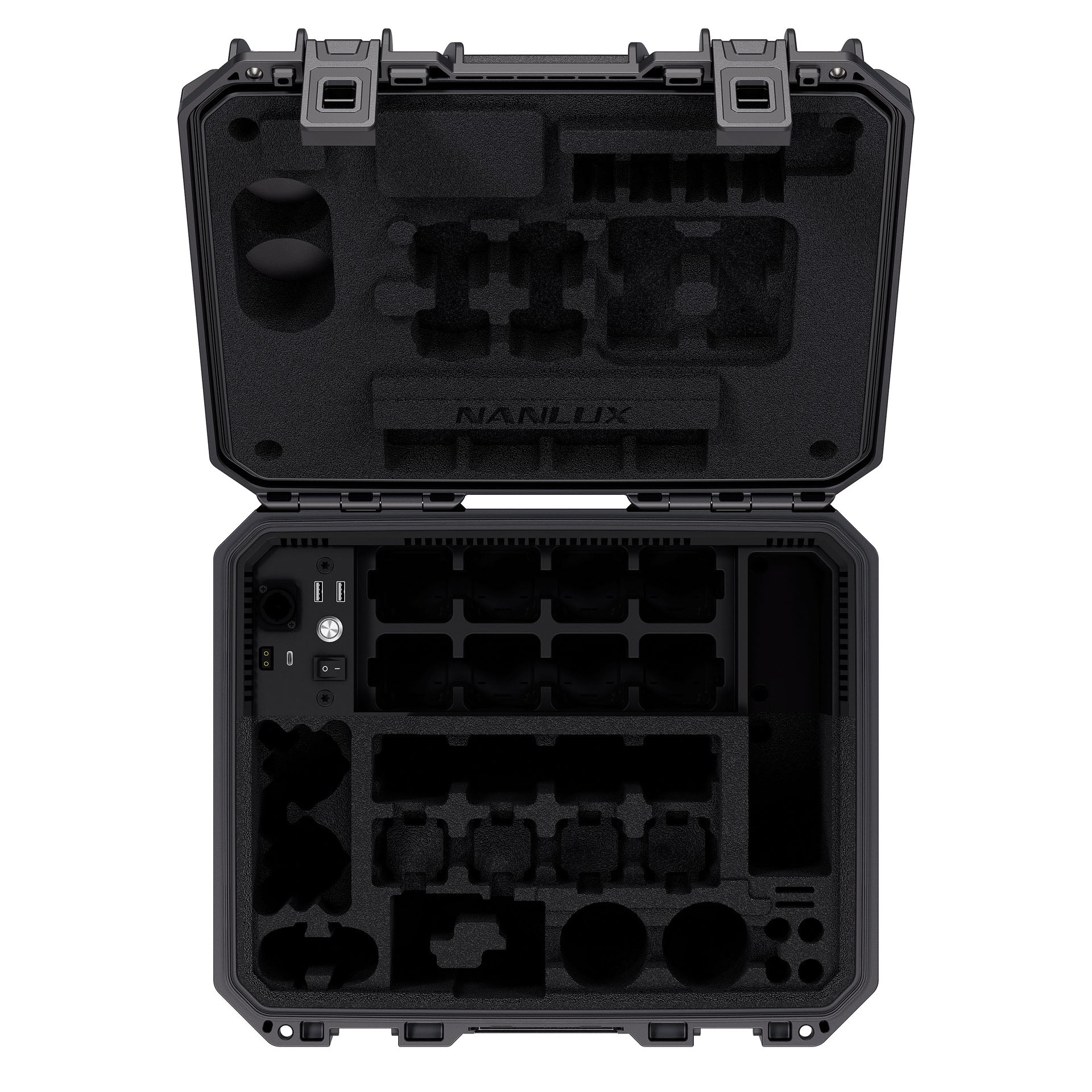

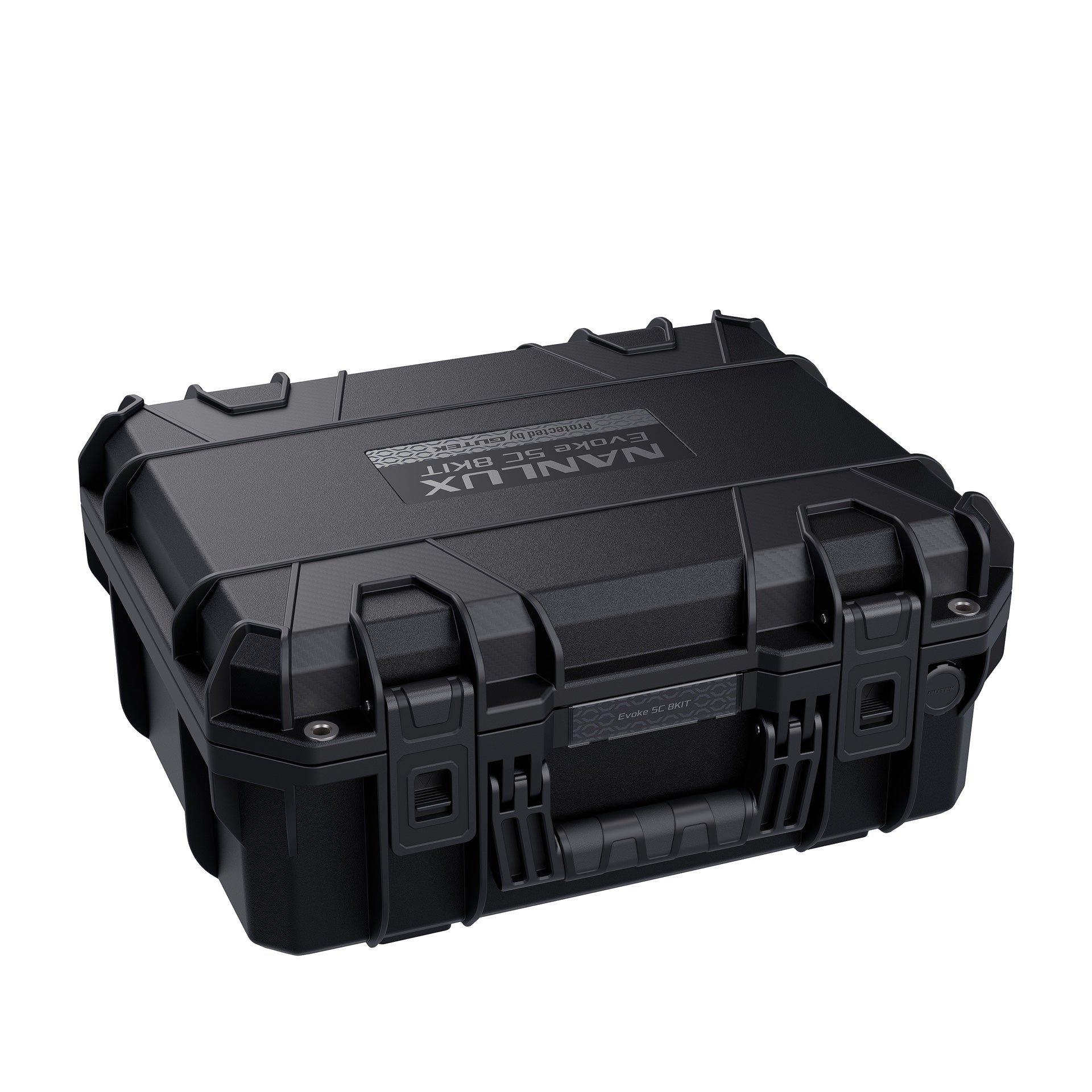

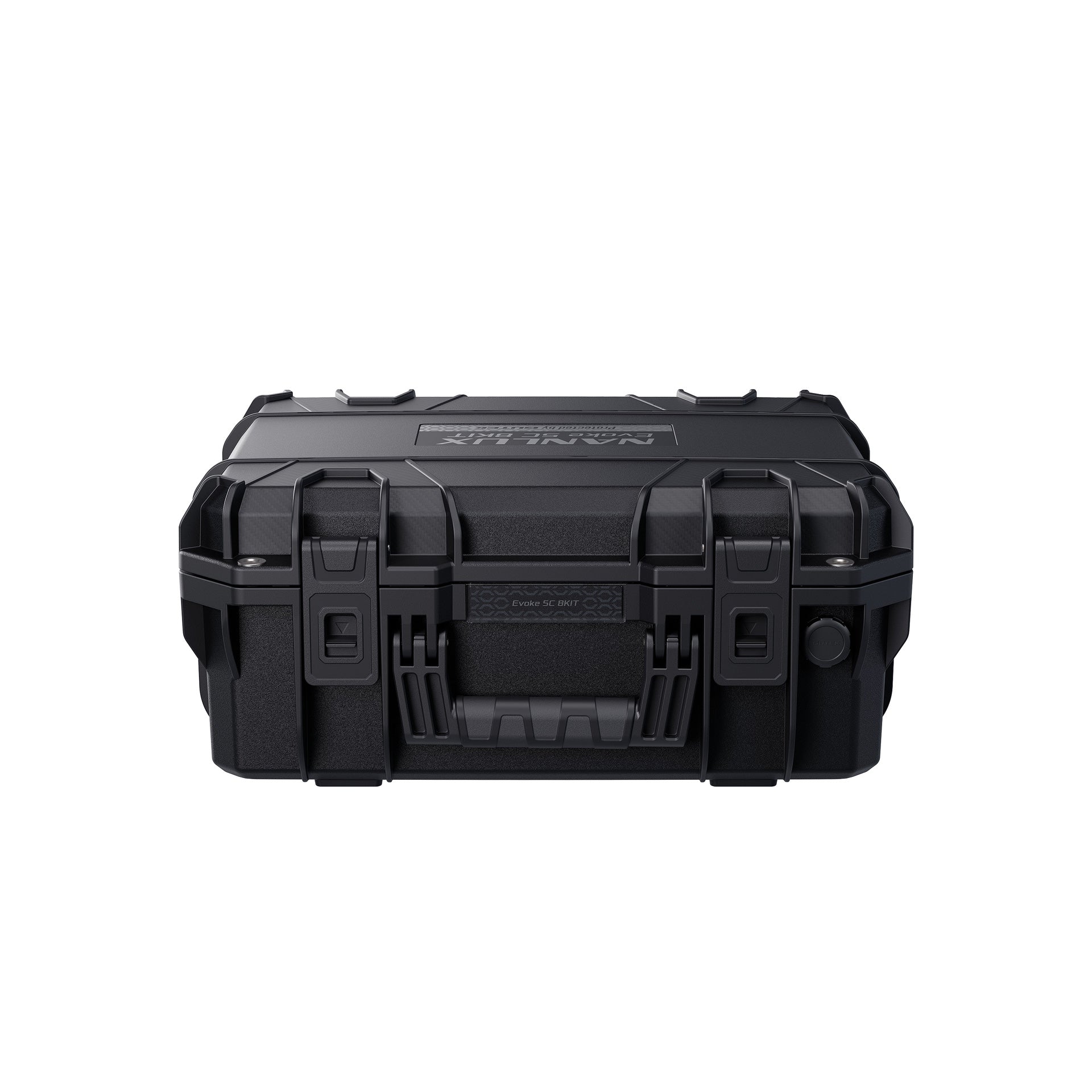

• GUTEK T-230 based charging case
• User manual

Key features

• Nebula C8 engine; CCT 1 000K to 20 000K with ±200 green/magenta
• CRI 98, TLCI 98, TM-30 Rf 96 / Rg 100 (Nanlux average values)
• Seven modes: CCT, HSI, HSIW, RGBW, XY, Gel (460 LEE and Rosco) and 15 effects
• Battery: about 50 min at 100%, about 2 h 36 min at 1%
• Control: on-board buttons, Nanlink app (Bluetooth), NFC, DMX/RDM via USB-C adapter cable, CRMX module fitted to every fixture

Specifications
