The Evoke 600C KIT adds the CC-ST-EV600C wheeled trolley case, so the fixture, reflector and wired controller travel together in one case.

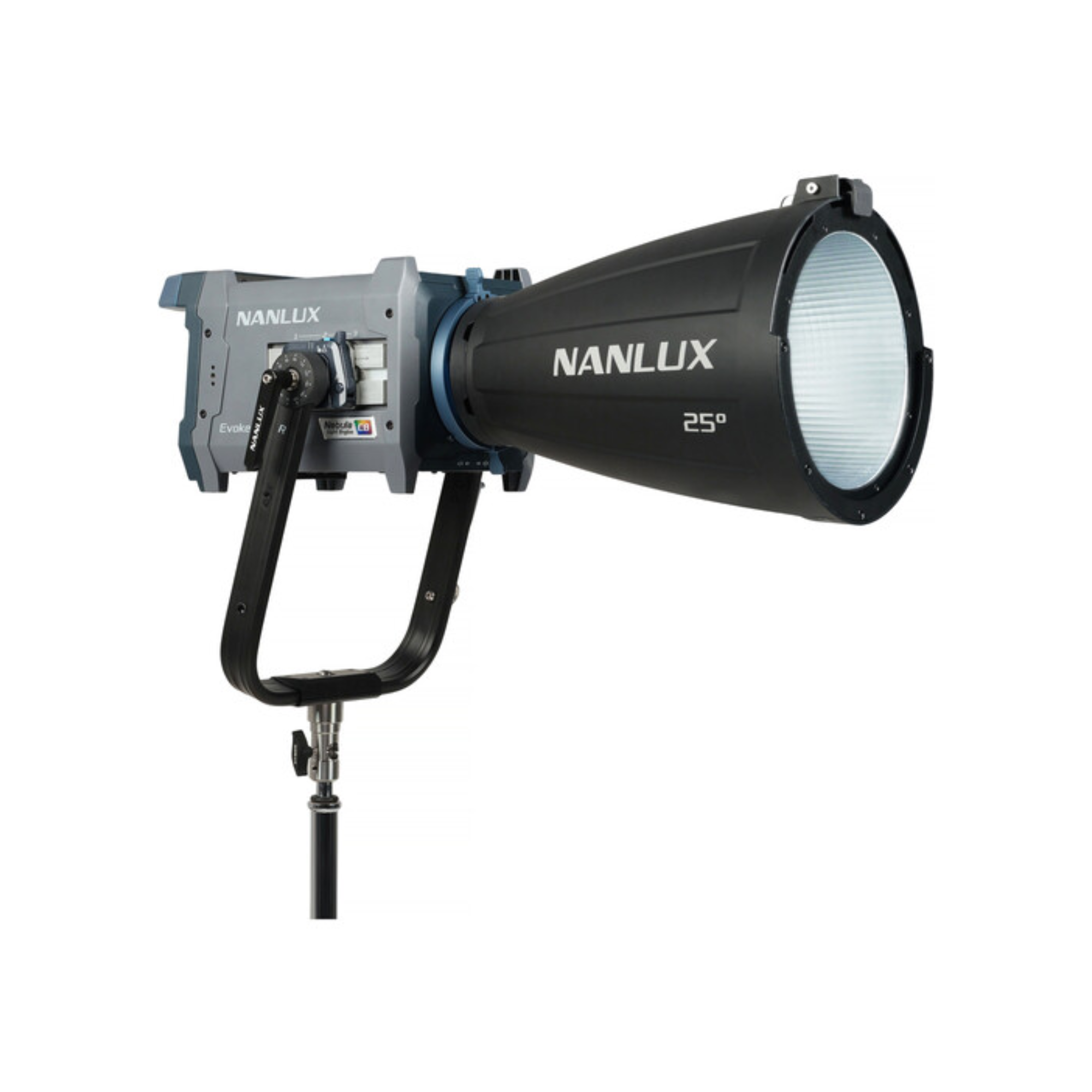

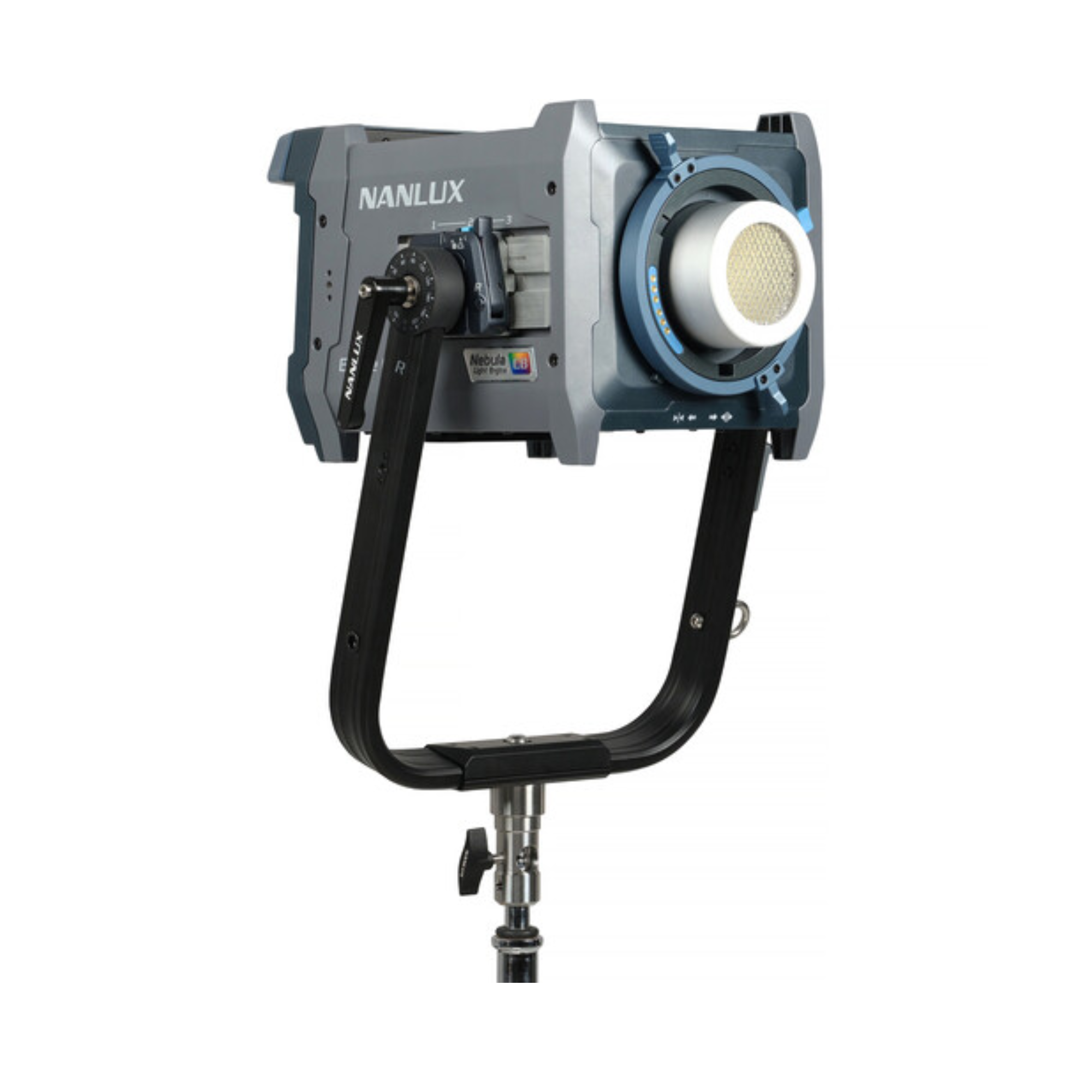

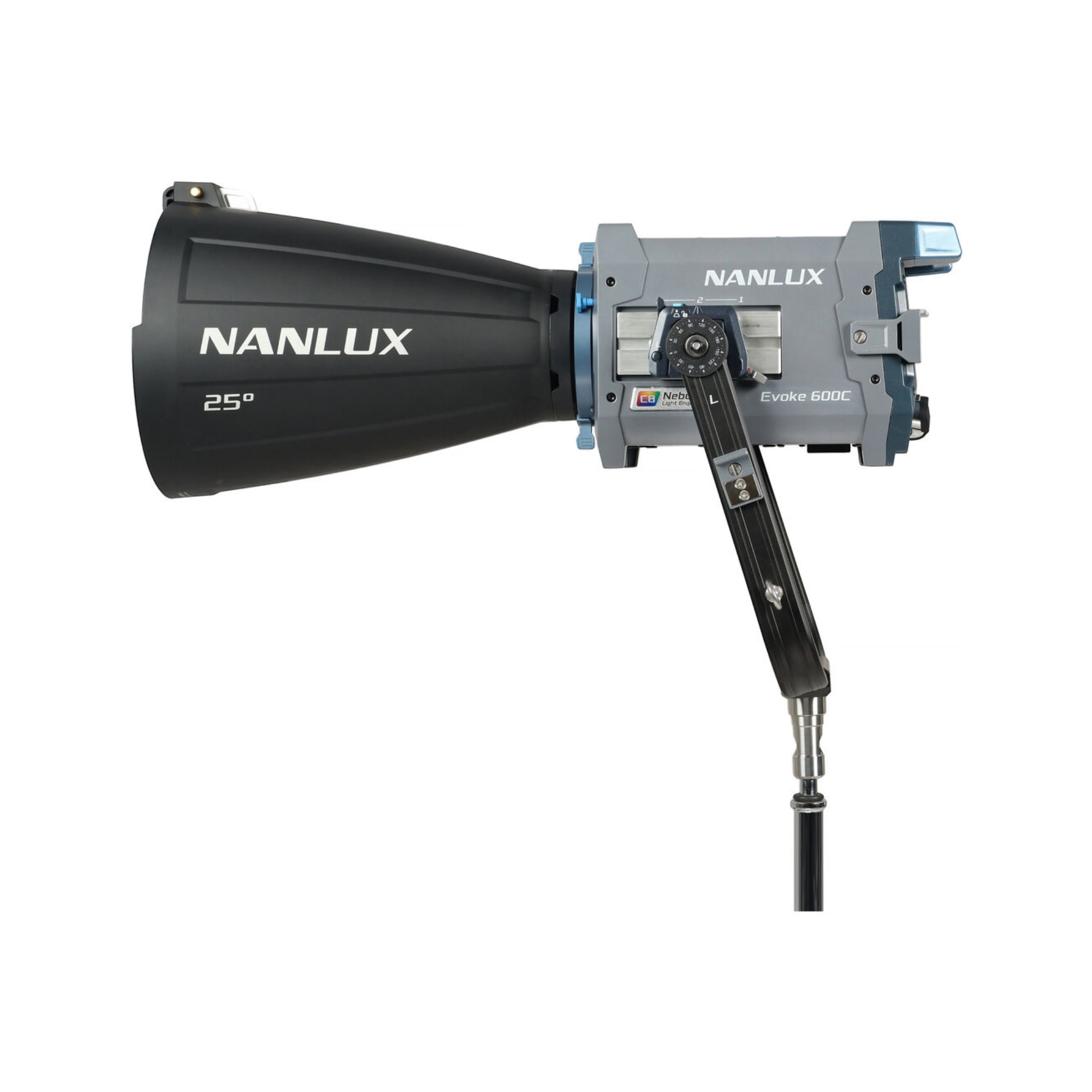

The Evoke 600C is a 600W full-colour point source with no external ballast: head, control unit and power supply share one IP66 magnesium-alloy housing of 7.26 kg, on mains or 48V DC. It uses the eight-colour Nebula C8 engine and the BE mount, a Bowens mount with electronic contacts that powers and controls the FL-22E motorised fresnel. Standard Bowens modifiers fit, and NL-mount accessories through the AS-NLA-BE adapter.

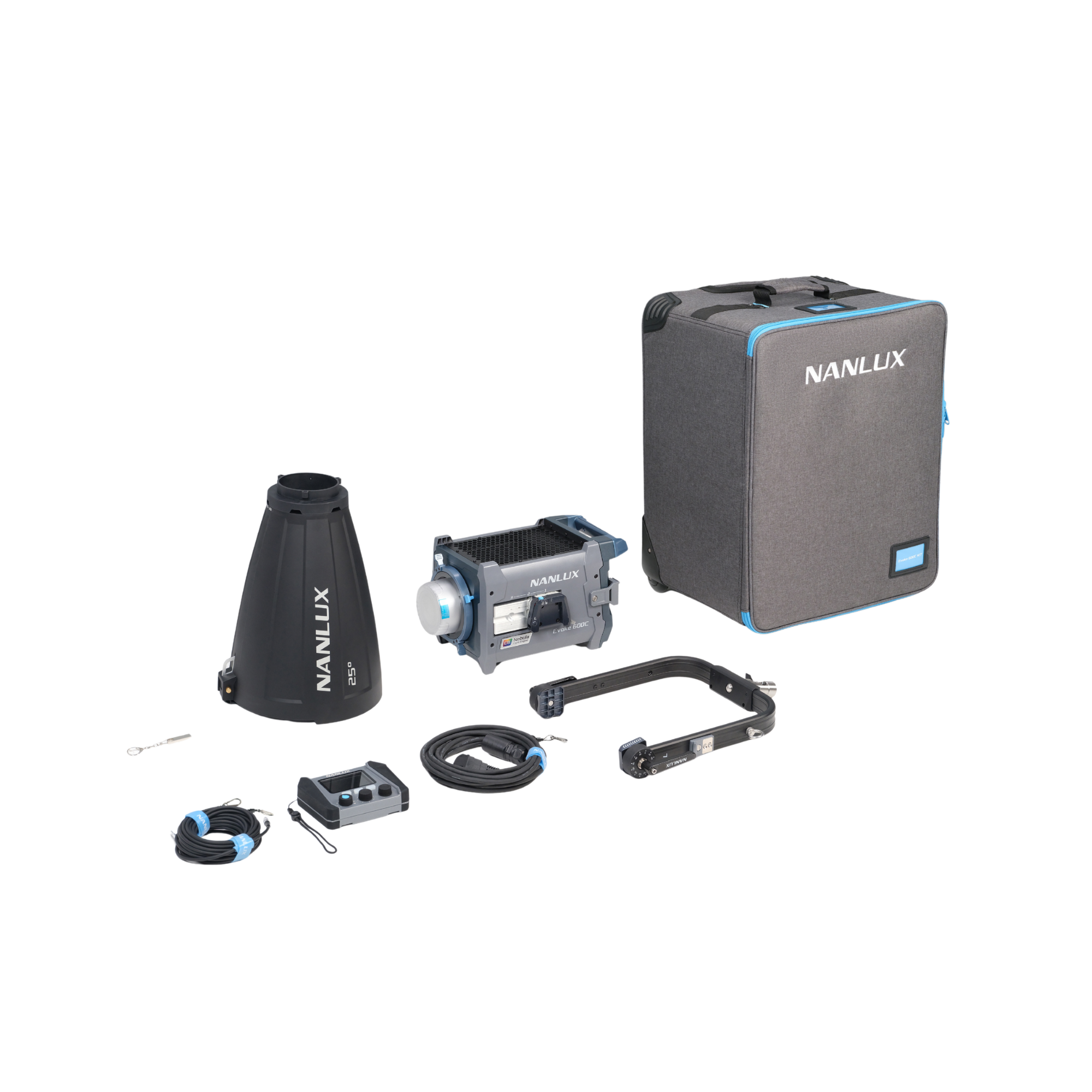

In the box
- Evoke 600C with yoke
- RF-BE-25 25° BE mount reflector
- WC-EXT wired controller (with 8 m cable)
- CC-ST-EV600C trolley case
Key features
- CCT 1 000K to 20 000K with ±200 green/magenta
- CRI 98, TLCI 98, TM-30 Rf 96 / Rg 100 (Nanlux average values)
- 20 820 lux at 3 m (5600K) with the included 25° reflector
- Dimming 0.0–100.0% in 0.1% steps
- Control: on-board, WC-EXT wired controller, Nanlink app, remote, built-in CRMX, NFC; DMX/RDM and Art-Net/sACN via the extension-port adapters
Specifications
| Rated power | 600W |
|---|---|
| Input | AC 100–240V 50/60Hz 8A max; DC 48V / 12.5A |
| Beam angle | 65° (bare) |
| Light engine | Nebula C8 (dR, R, A, L, G, C, B, I) |
| CCT | 1 000K – 20 000K, G/M ±200 |
| CRI / TLCI | 98 / 98 (average) |
| TM-30 | Rf 96 / Rg 100 (average) |
| Dimming | 0.0–100.0% in 0.1% steps |
| IP rating | IP66 |
| Mount | BE (Bowens compatible) |
| Size | 358 × 246 × 205 mm |
| Weight | 7.26 kg head; 1.35 kg yoke |
