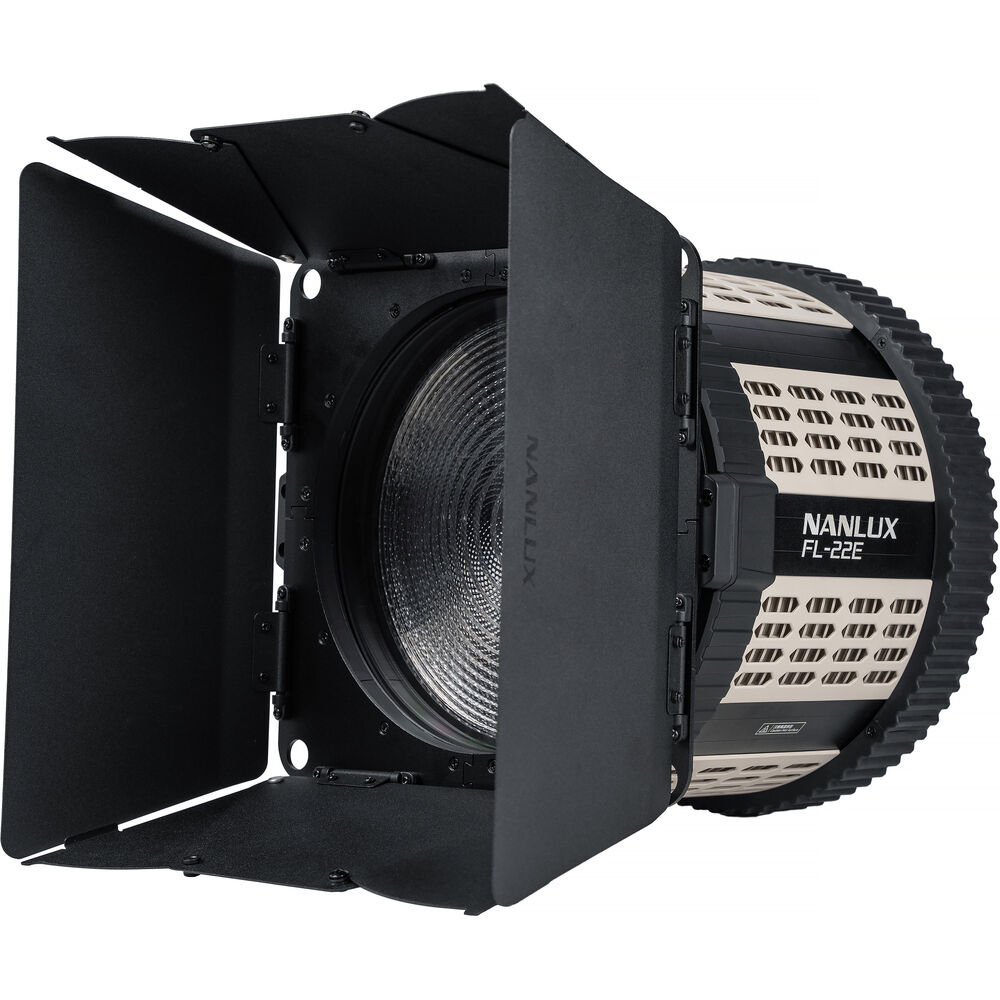

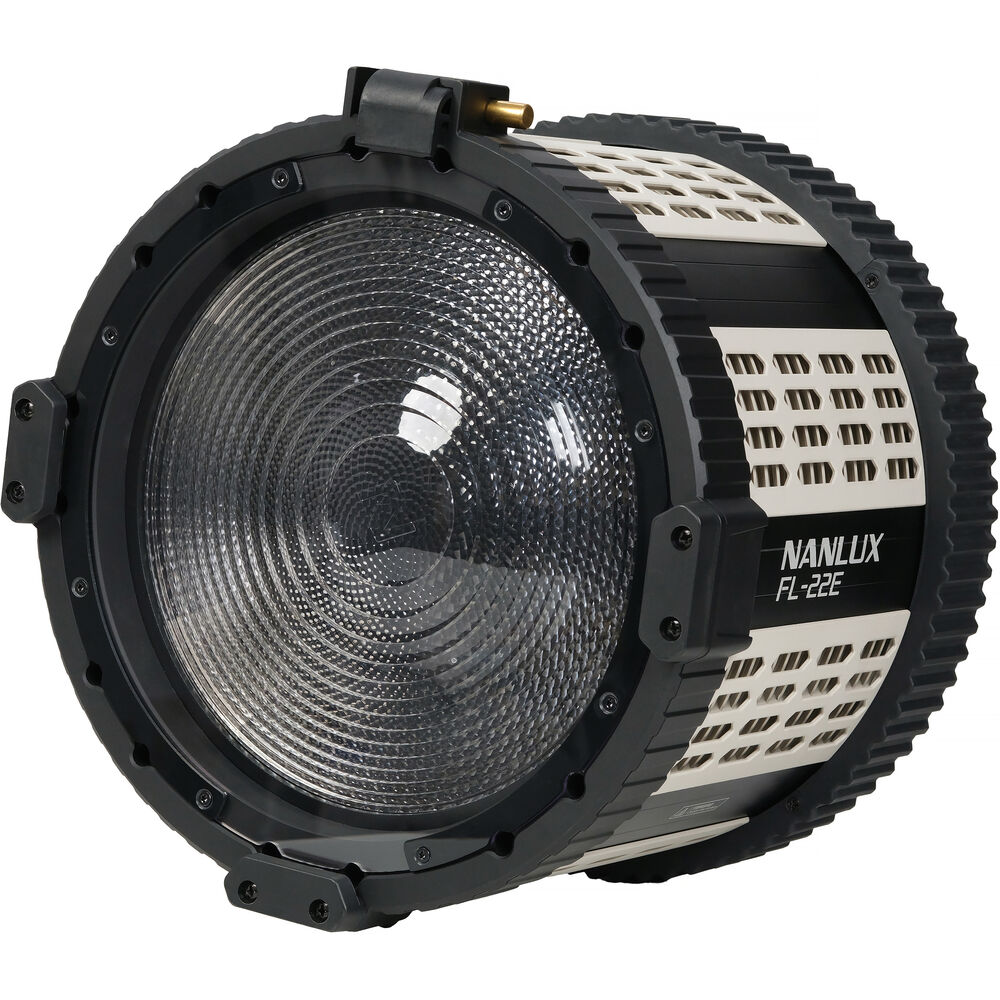

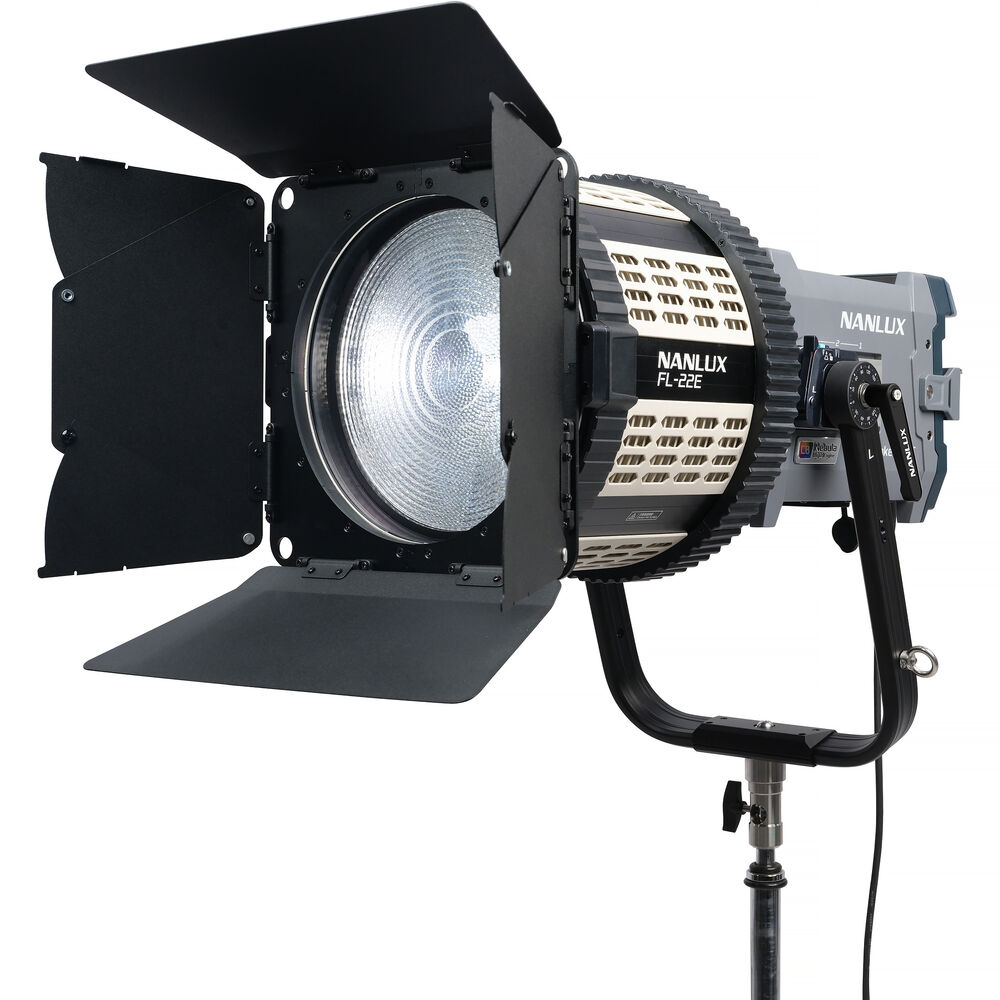

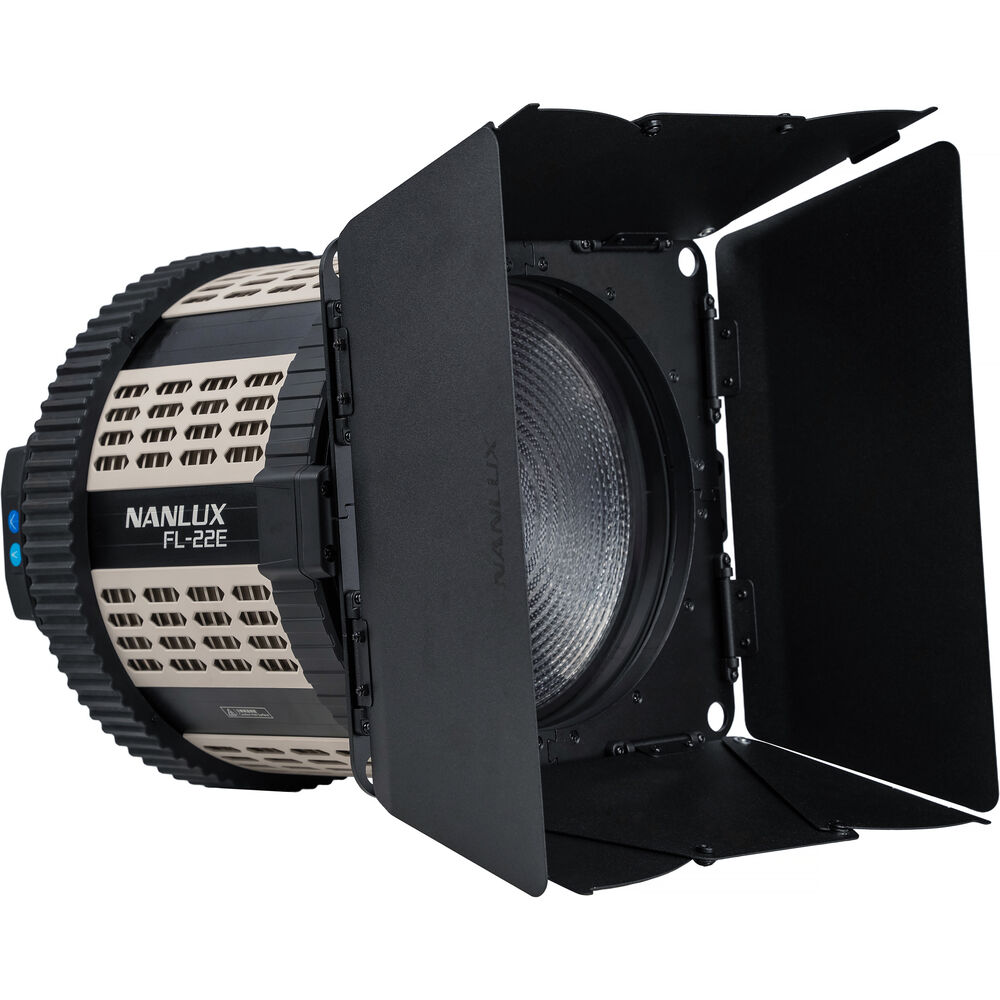

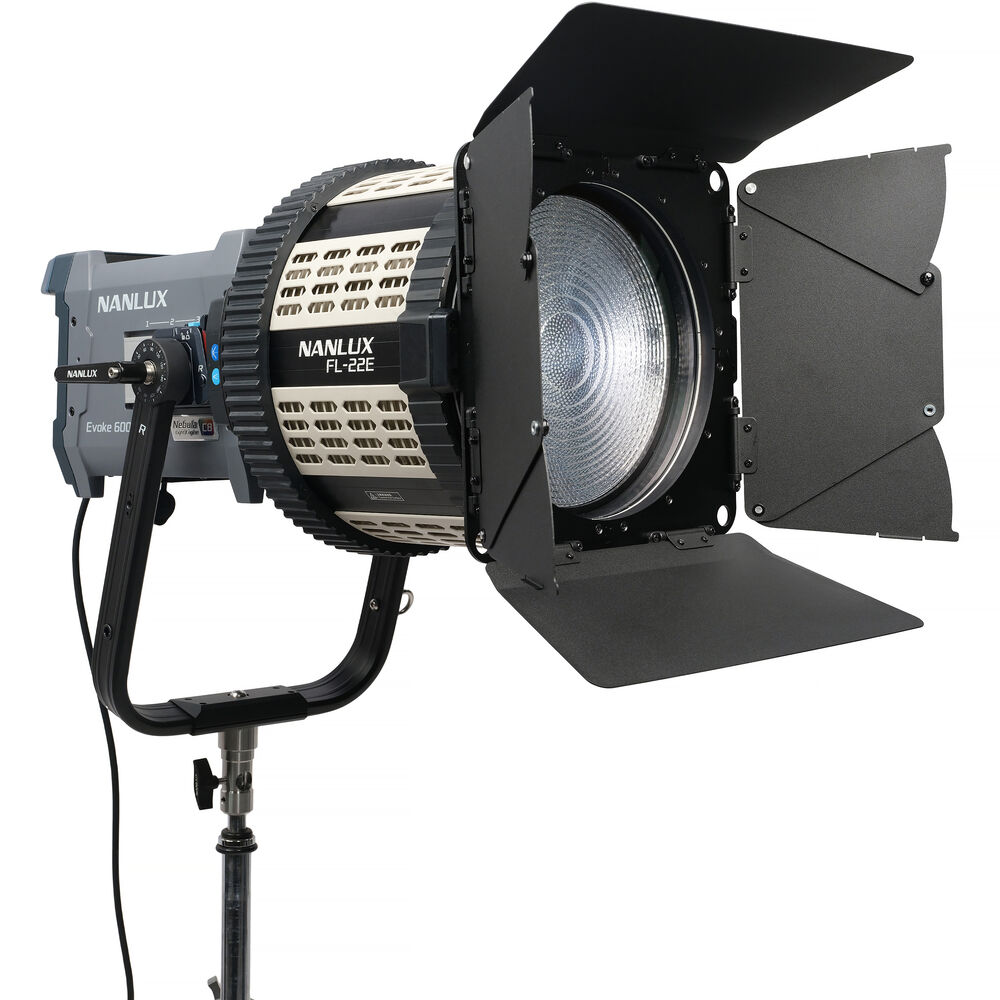

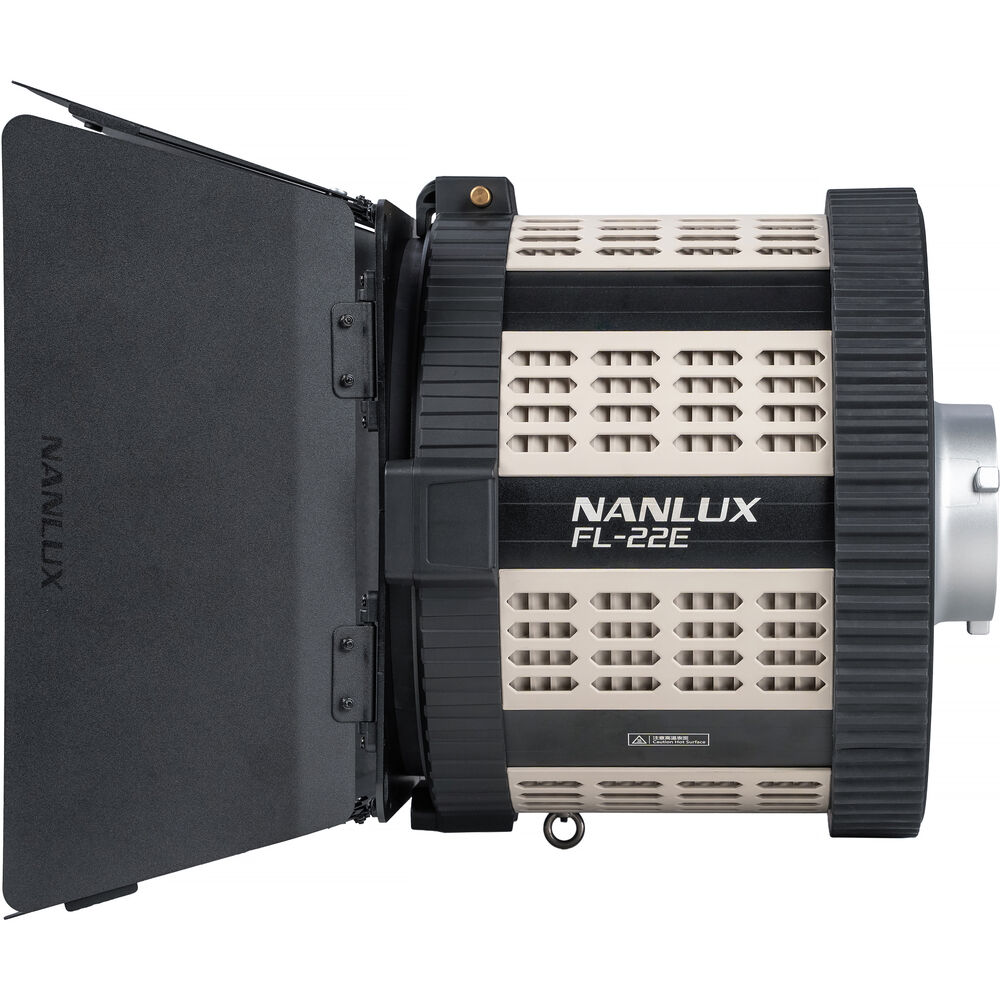

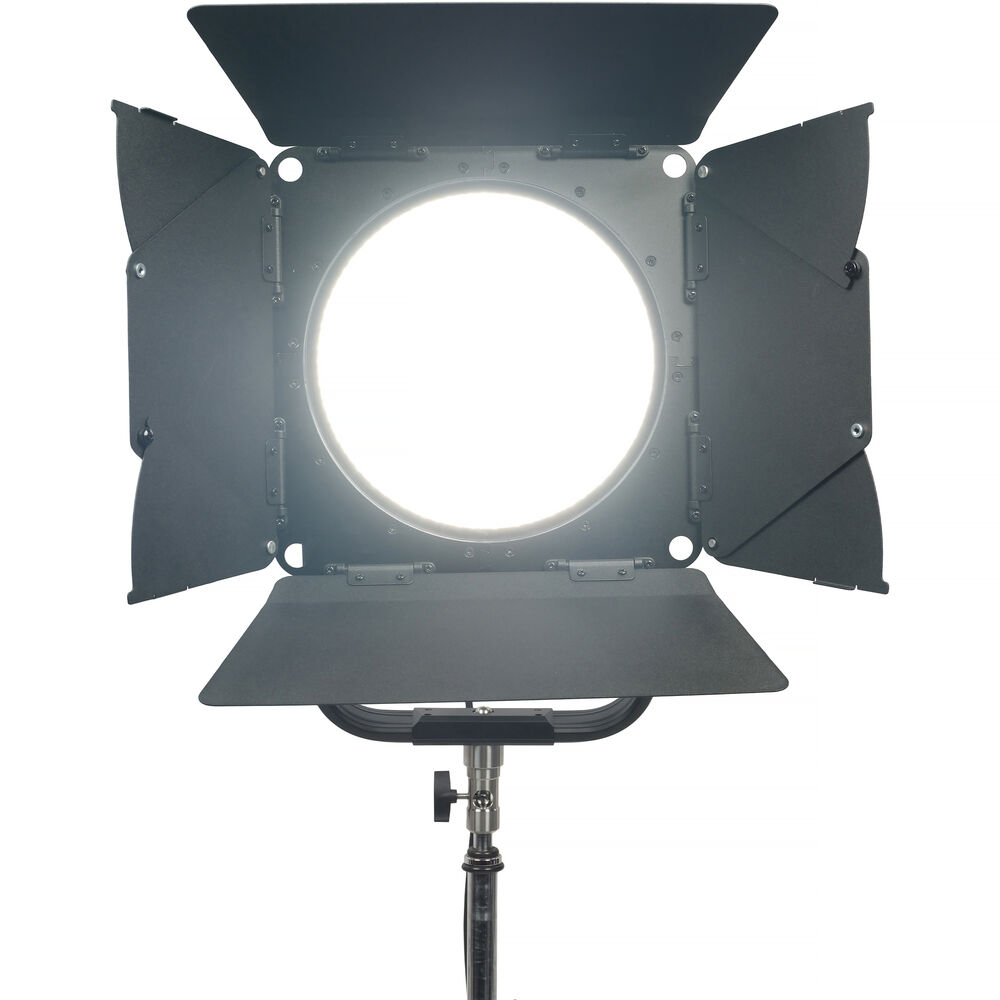

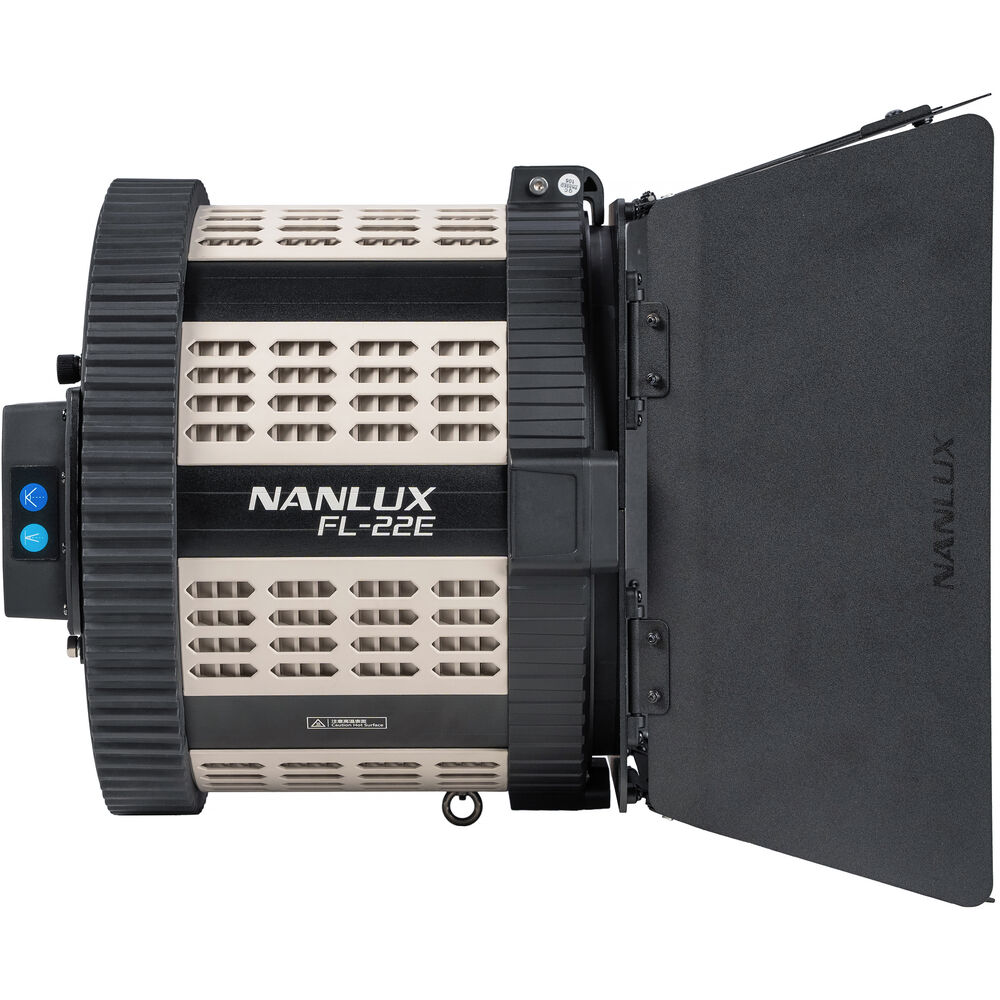

A motorised 22 cm fresnel with a BE mount for the Evoke 600C and other BE fixtures, zooming from 15° to 50°. On the 600C at 15° it gives 22 110 lux at 3 m (5600K), about 8 times the bare light, with a soft-edged, even pool.

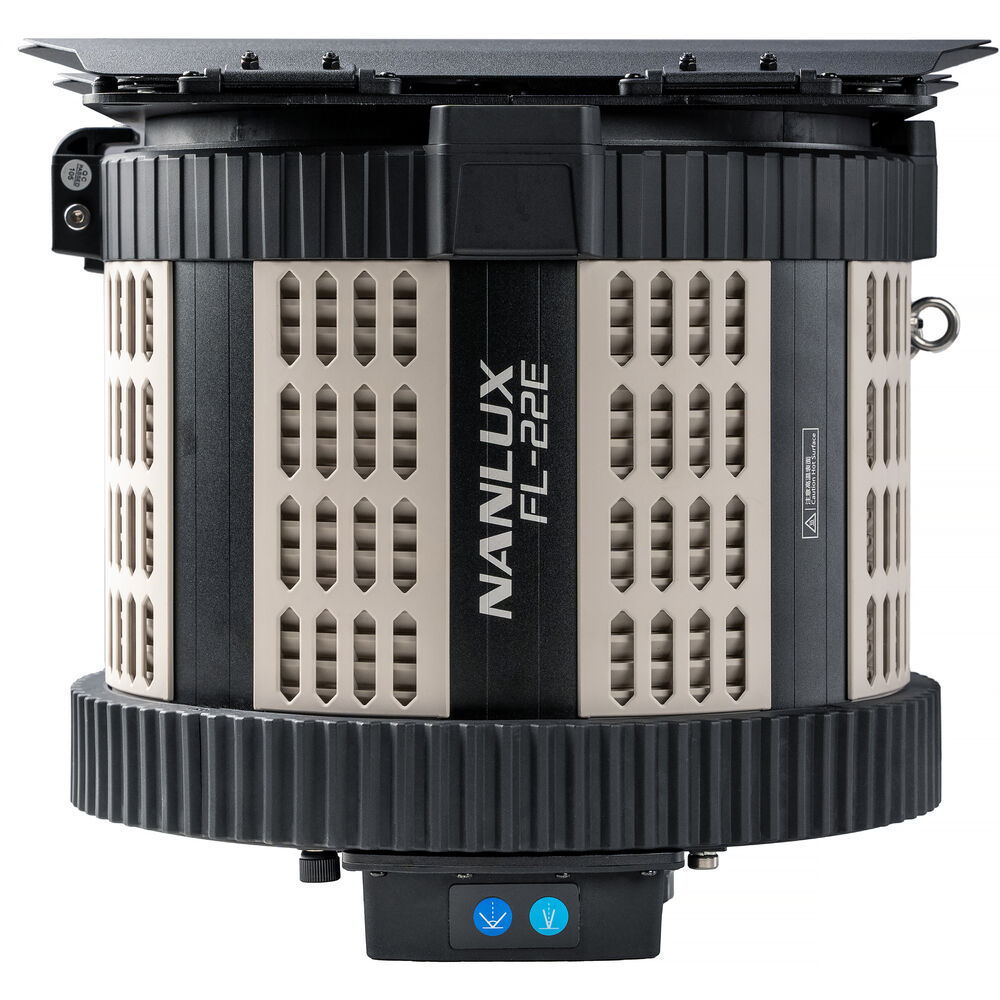

Zoom from the lens buttons, the fixture, wired control (wired controller, DMX, Ethernet) or wirelessly (Nanlink app 2.0, LumenRadio CRMX). IP66 rated.
Specifications
| Zoom range | 15°–50° |
|---|---|
| IP rating | IP66 |
| Size | 311 × 296 × 265 mm |
| Weight | 3.94 kg (barndoor 1 kg) |
Compatibility

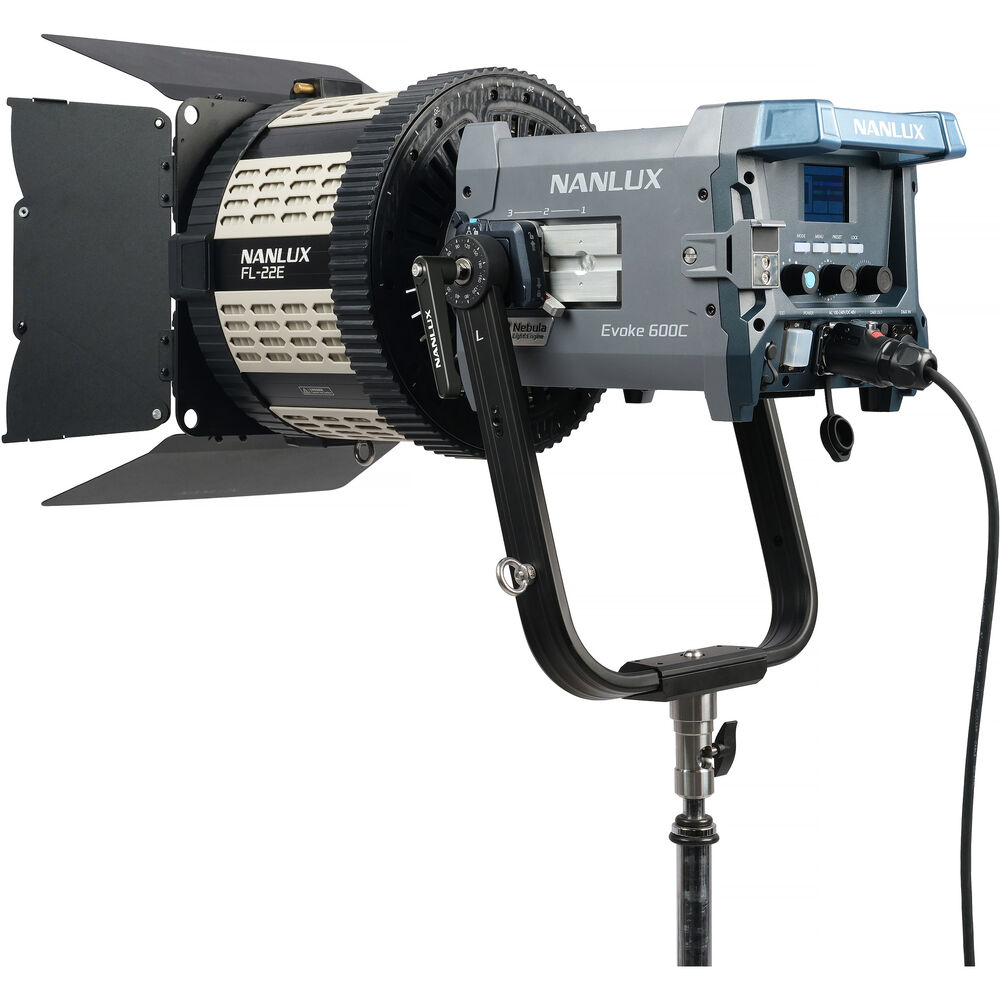

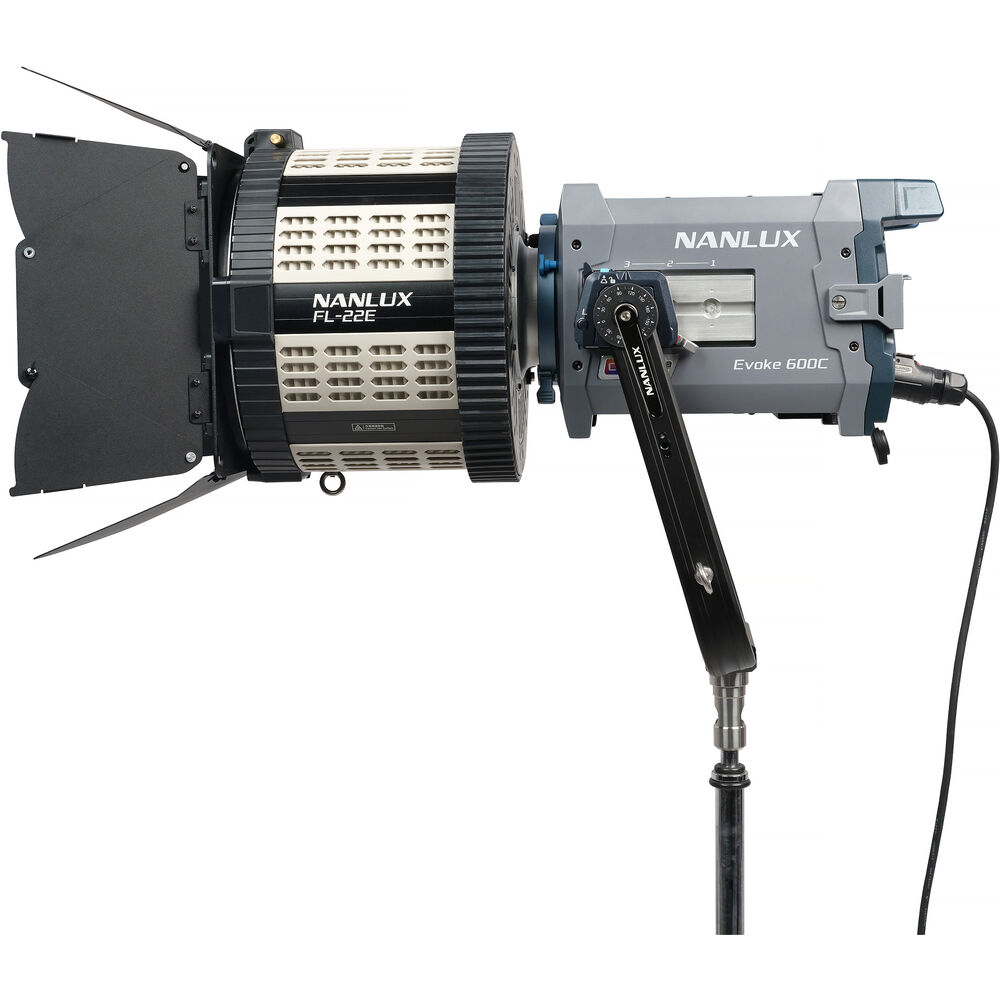

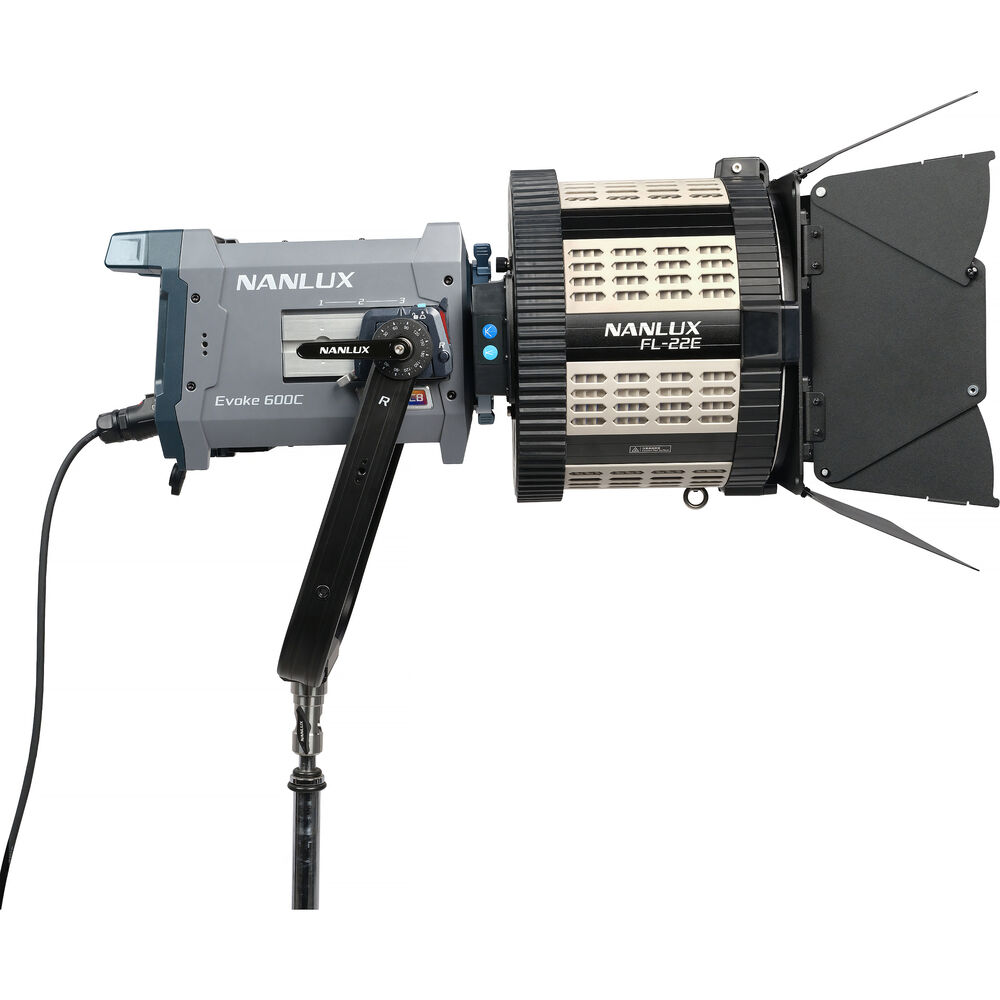

BE-mount fixtures (e.g. Evoke 600C): the fixture powers and controls the zoom through the mount’s electronic contacts.

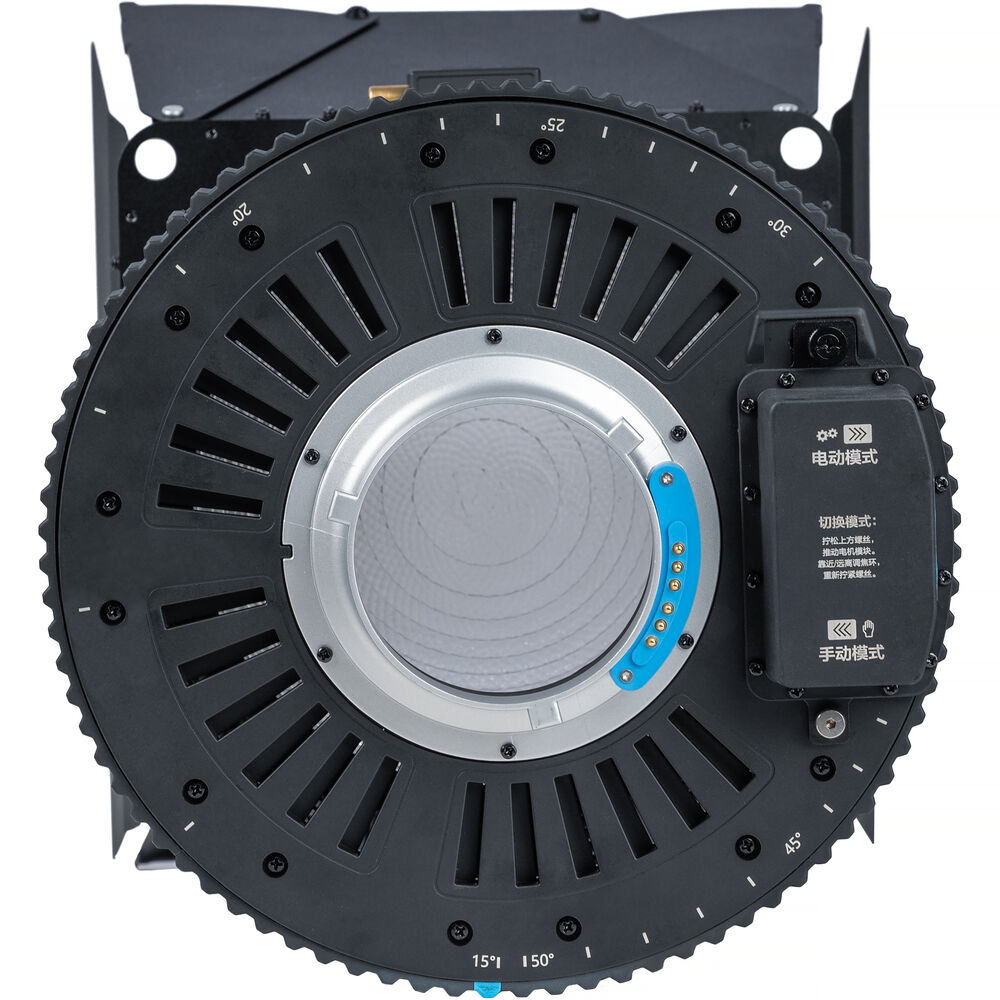

Bowens-mount fixtures up to 800W: no electronic contacts, so the zoom is not powered — switch the motor box to manual and zoom by hand.
Not compatible: Nanlite FC-300B / 500B / 500C.
In the box
- FL-22E motorised fresnel
- Barndoor
- Carrying bag
- User manual
