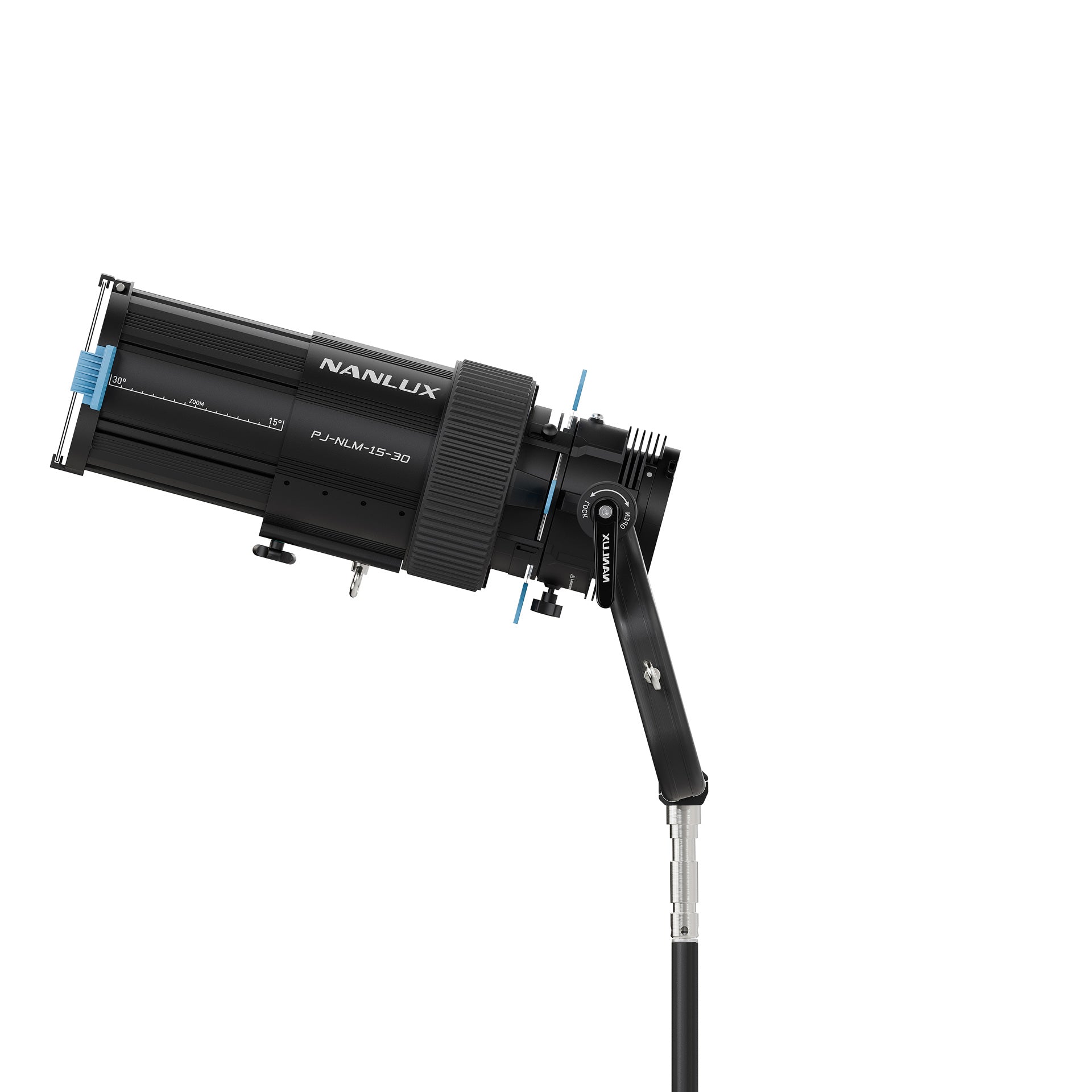

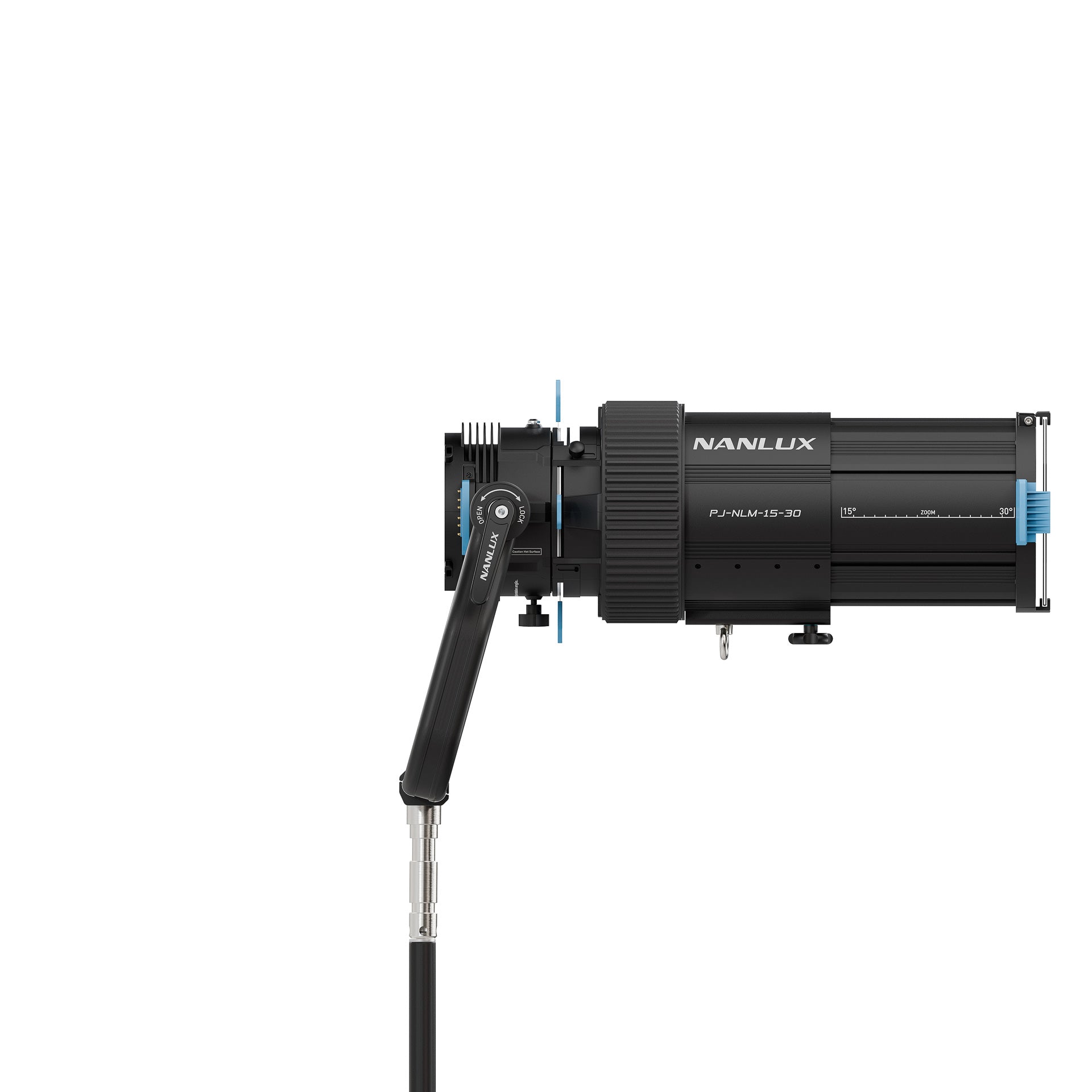

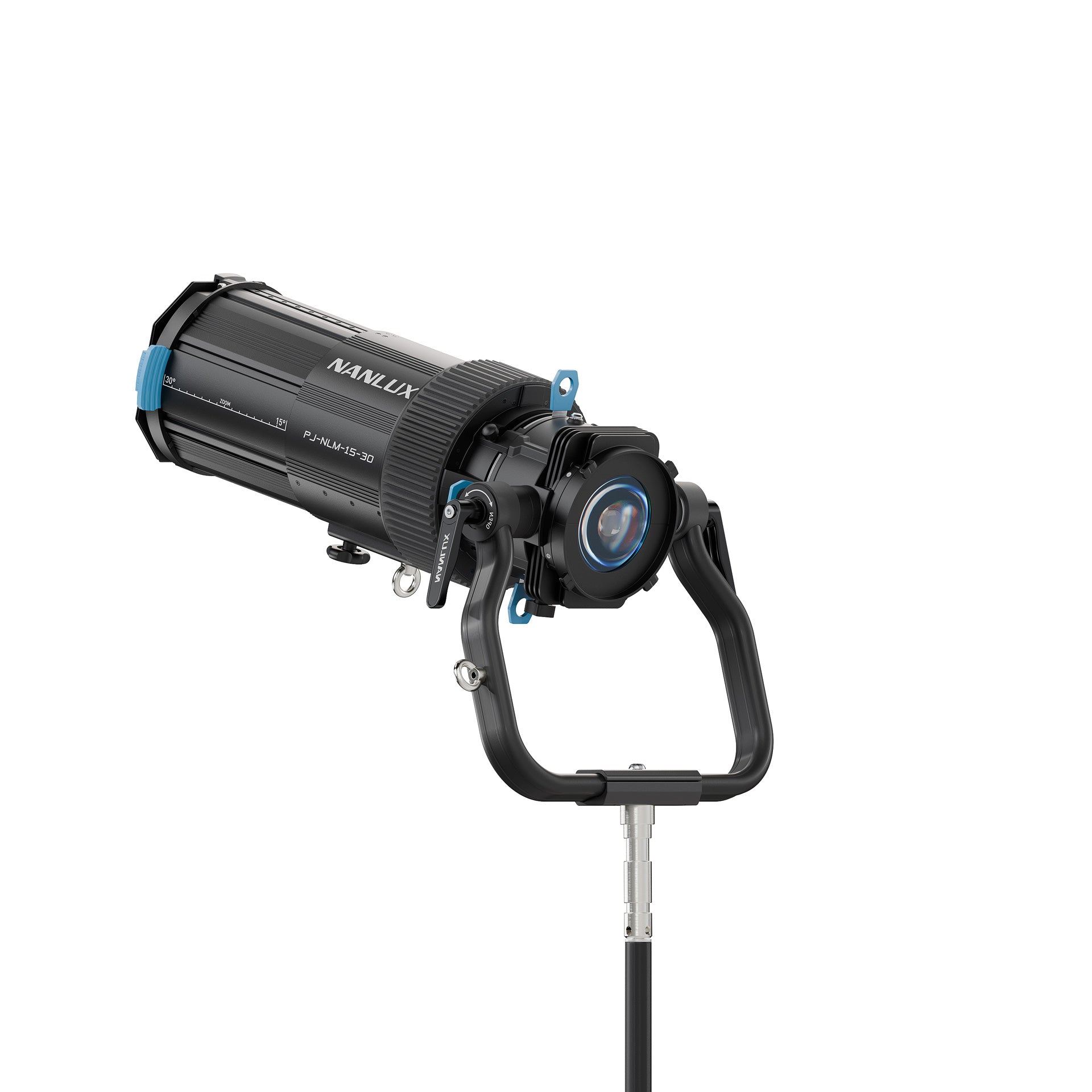

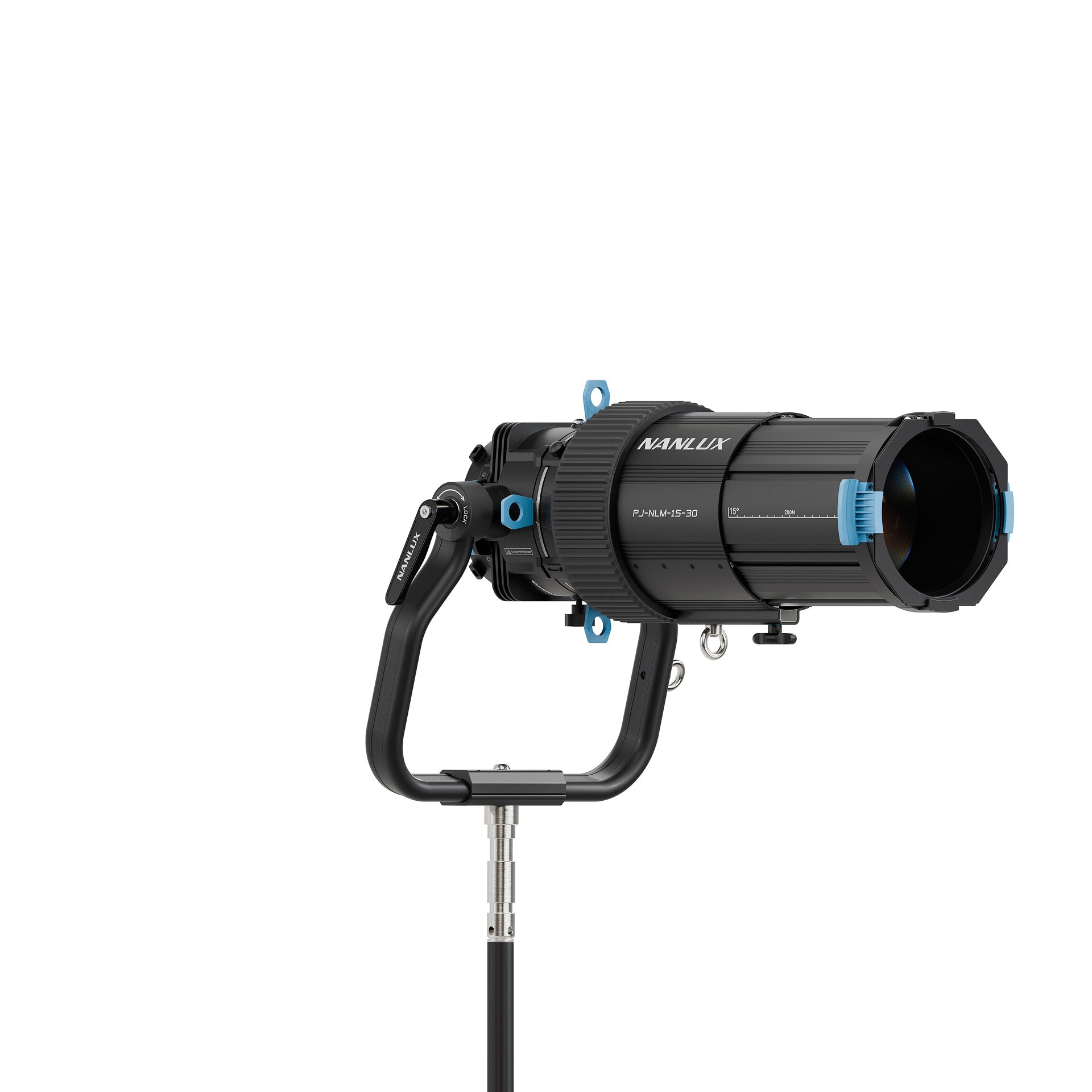

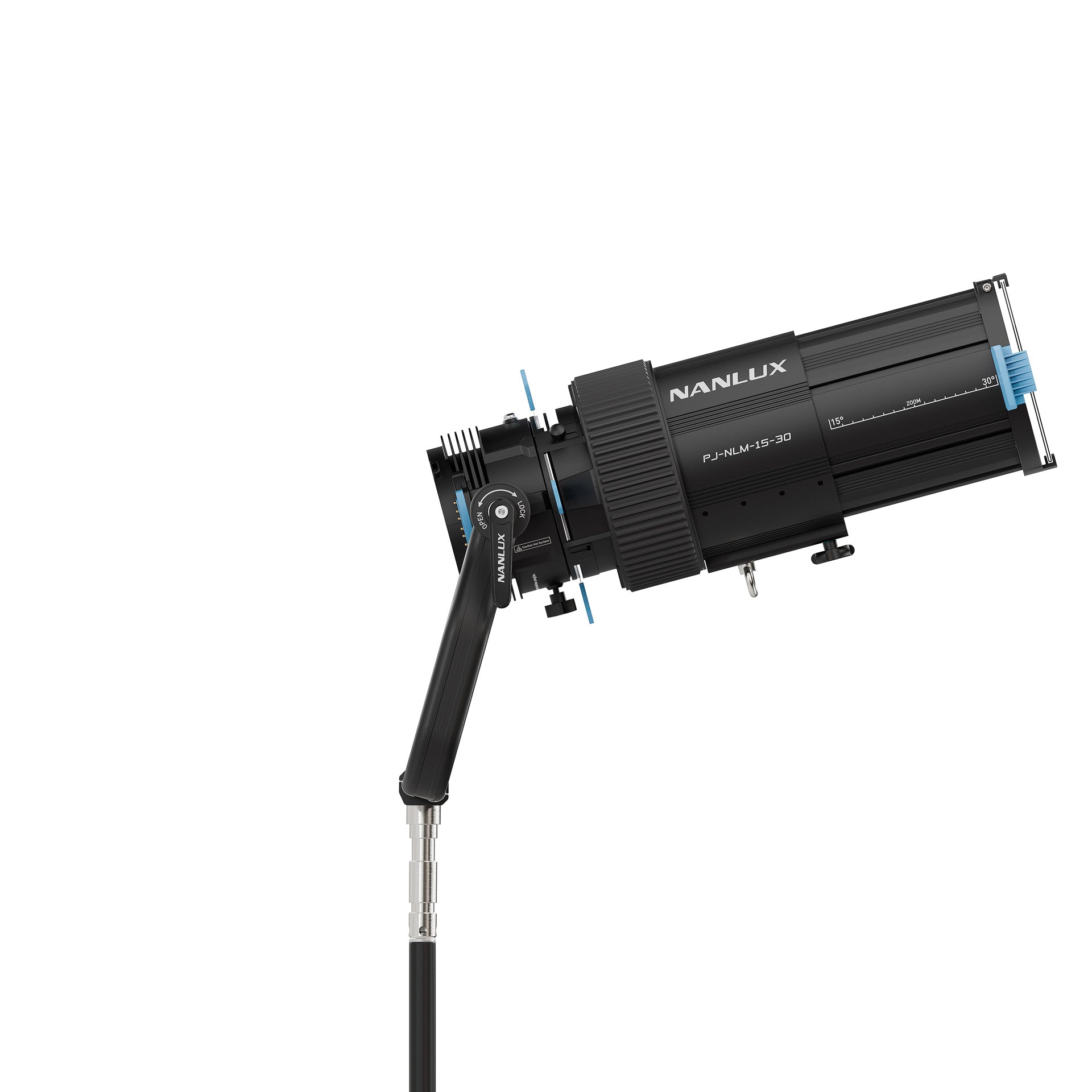

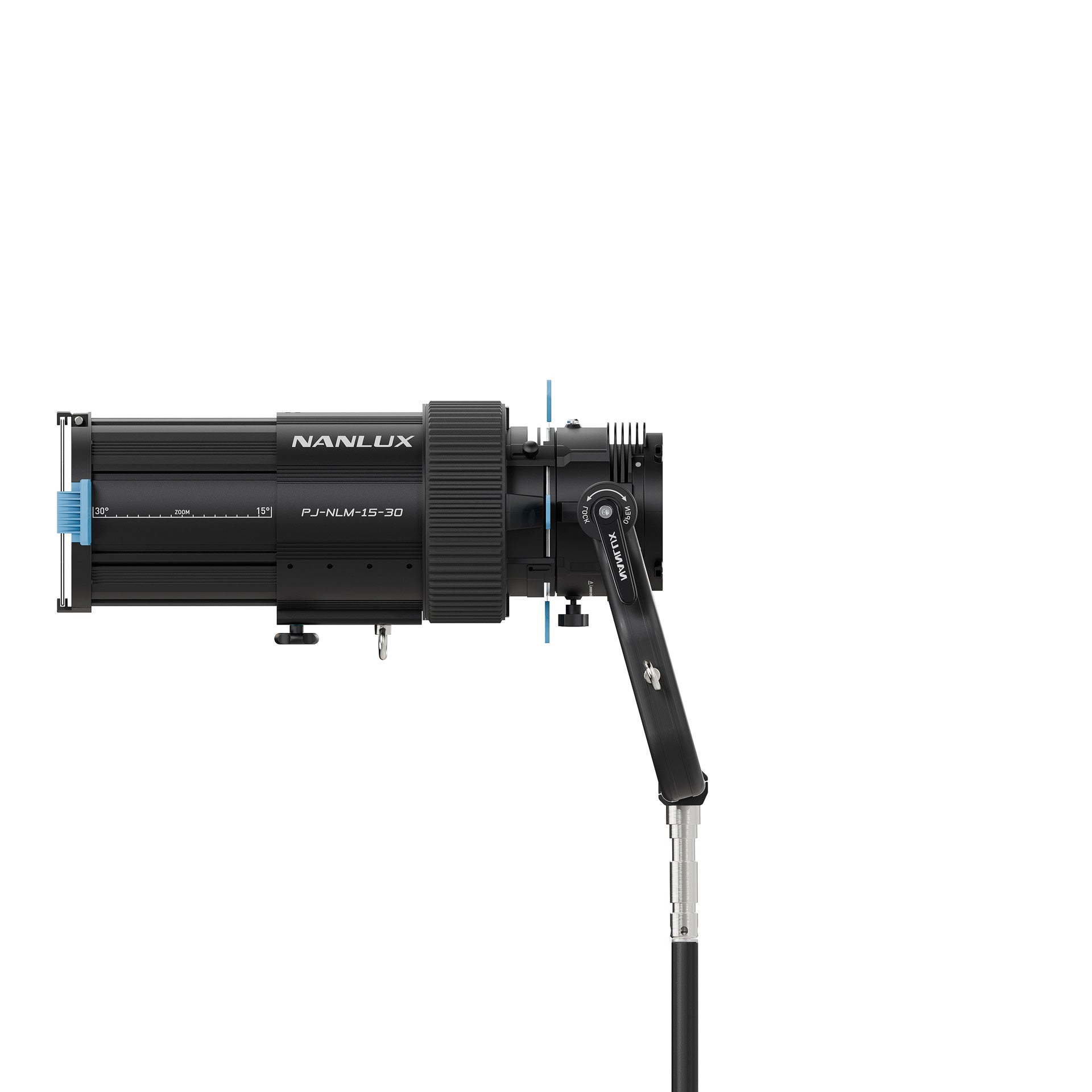

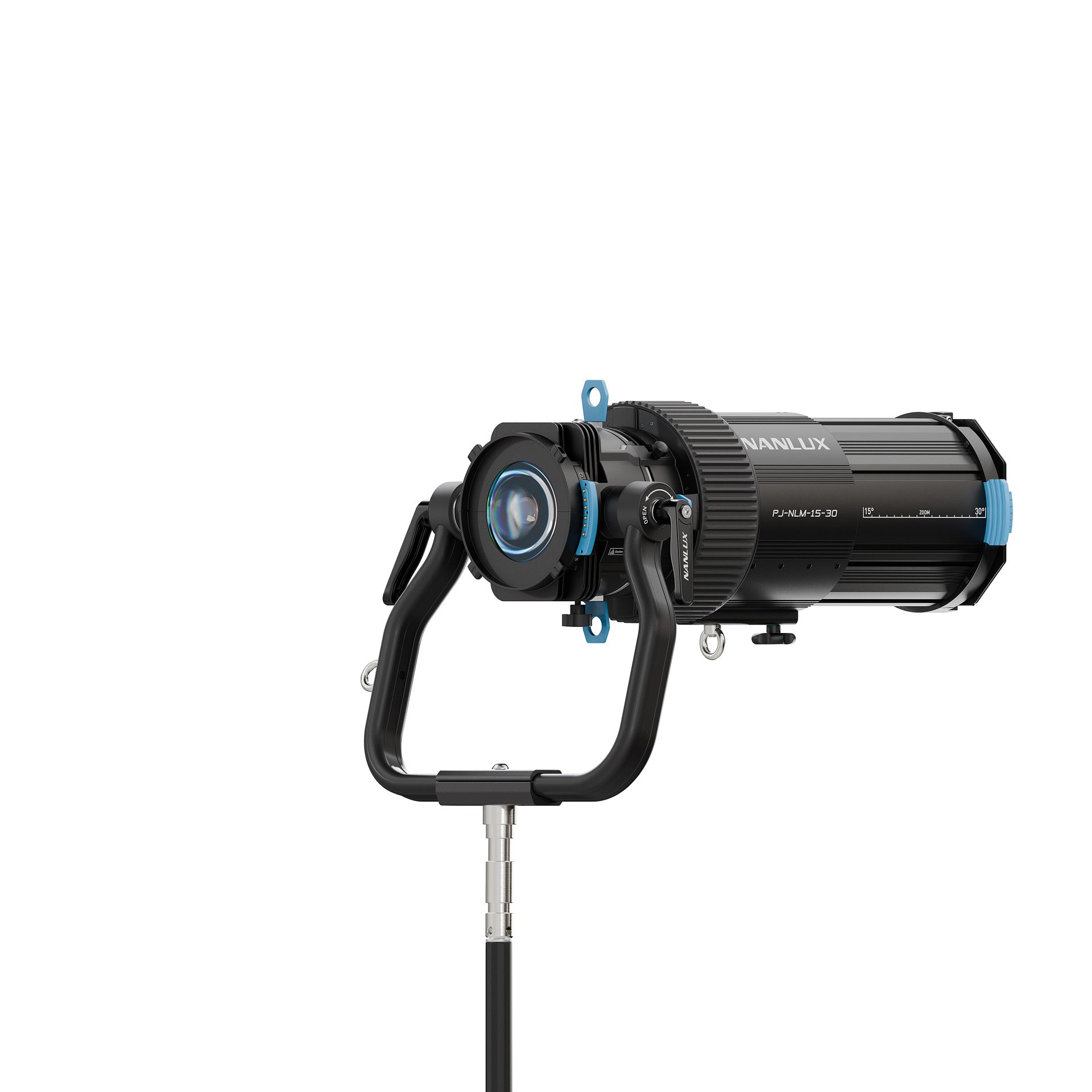

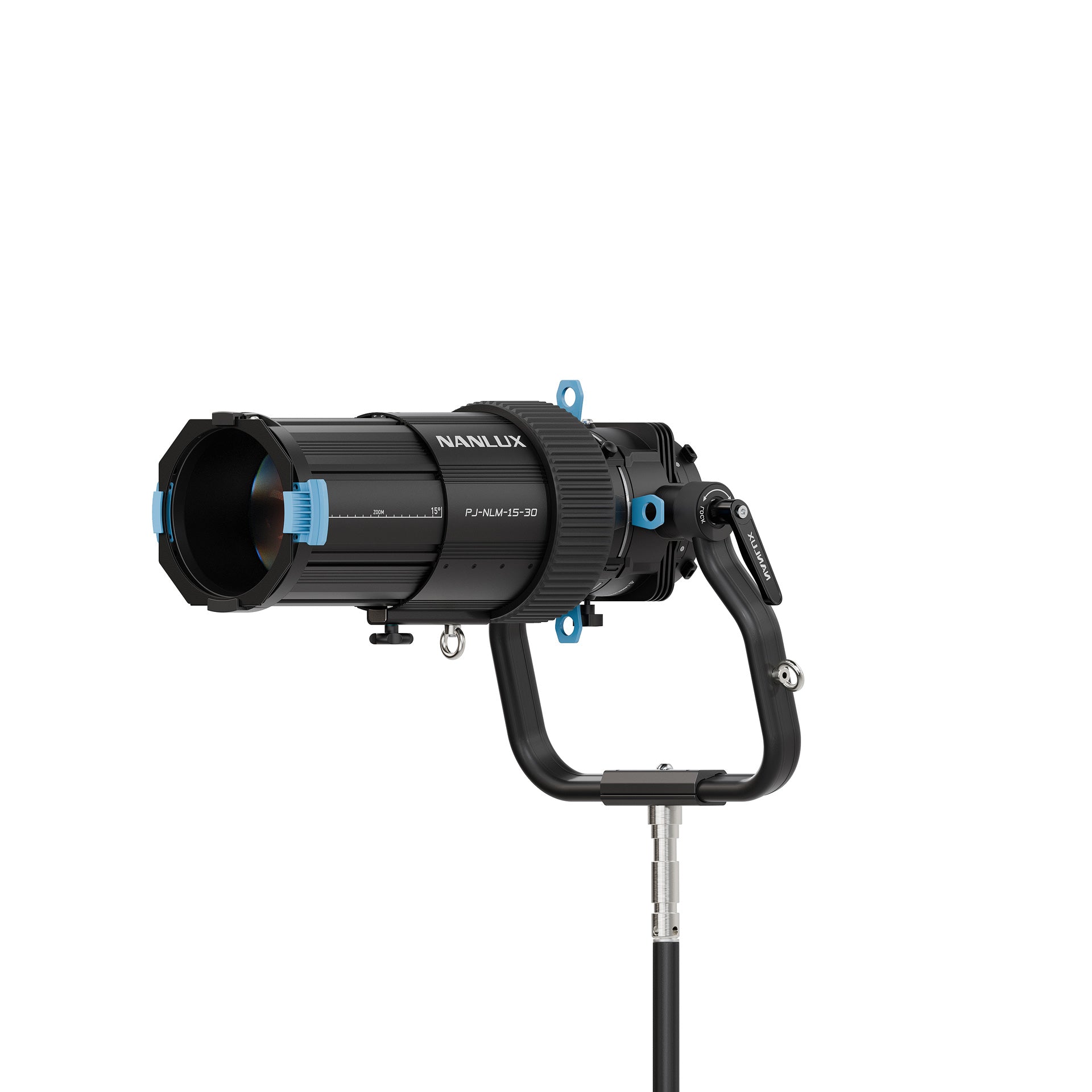

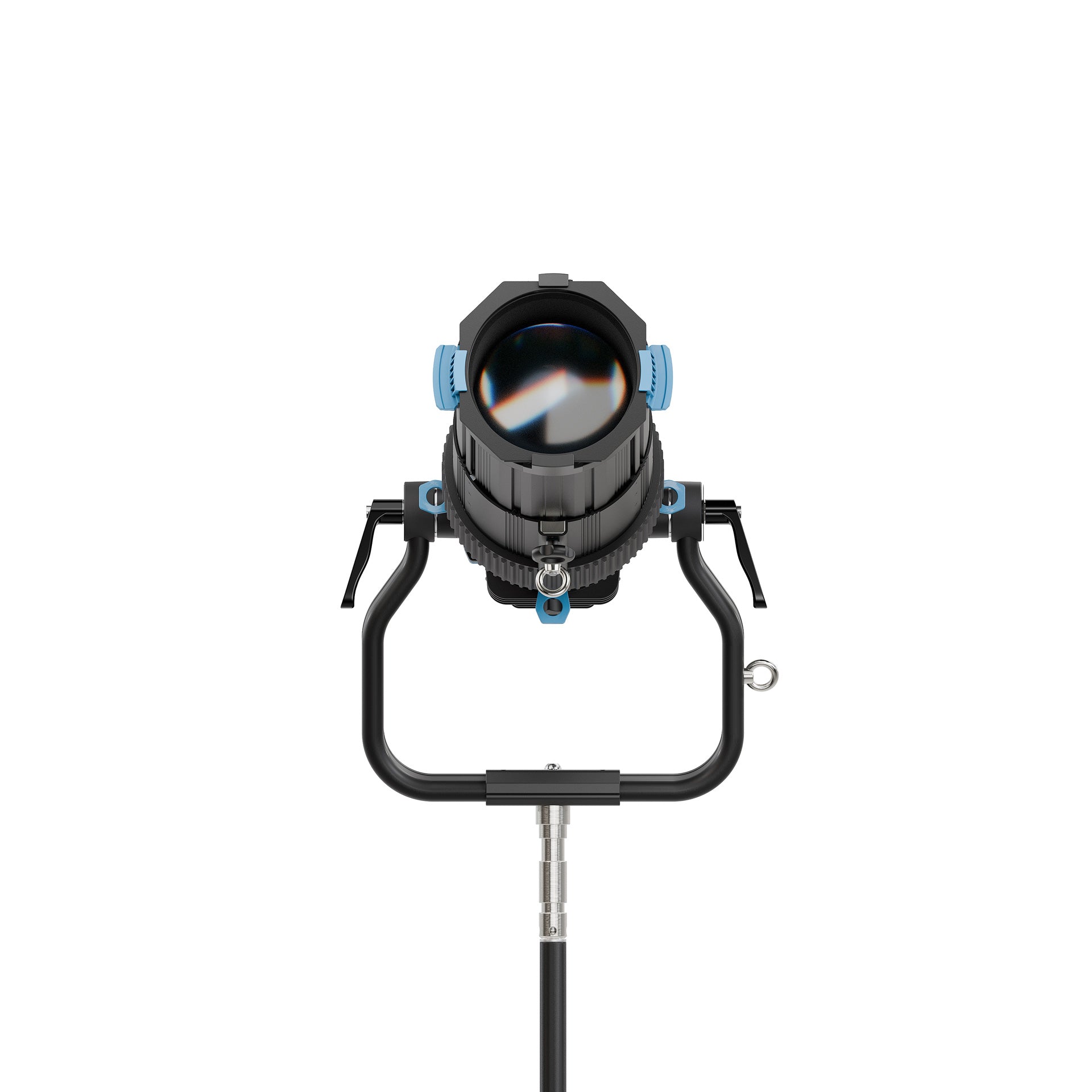

A zoom projection attachment for Evoke NL-mount fixtures that gives theatre-style control on set: zoom from 15° to 30°, focus, framing shutters and gobo projection. It adds shapes, patterns and accents to backgrounds without moving the light.
The aspherical optics with anti-reflective coating and edge blackening keep the beam even and sharp (Nanlux measures 78% uniformity and 0.88% distortion at 3 m and 15°). The barrel rotates 90°, and the holder accepts third-party barrels and lenses. Aluminium and nylon construction keeps it under 12 kg, with passive cooling for quiet running on high-power fixtures.
Key features
- Evoke 900C: 32 720 lux at 3 m at 15° (5600K), about 7.5 times the bare light
- Evoke 2400B: 39 920 lux at 3 m at 15° (5600K)
- Independent framing shutters, built-in 18-blade iris, A-size gobo holder, gel frame

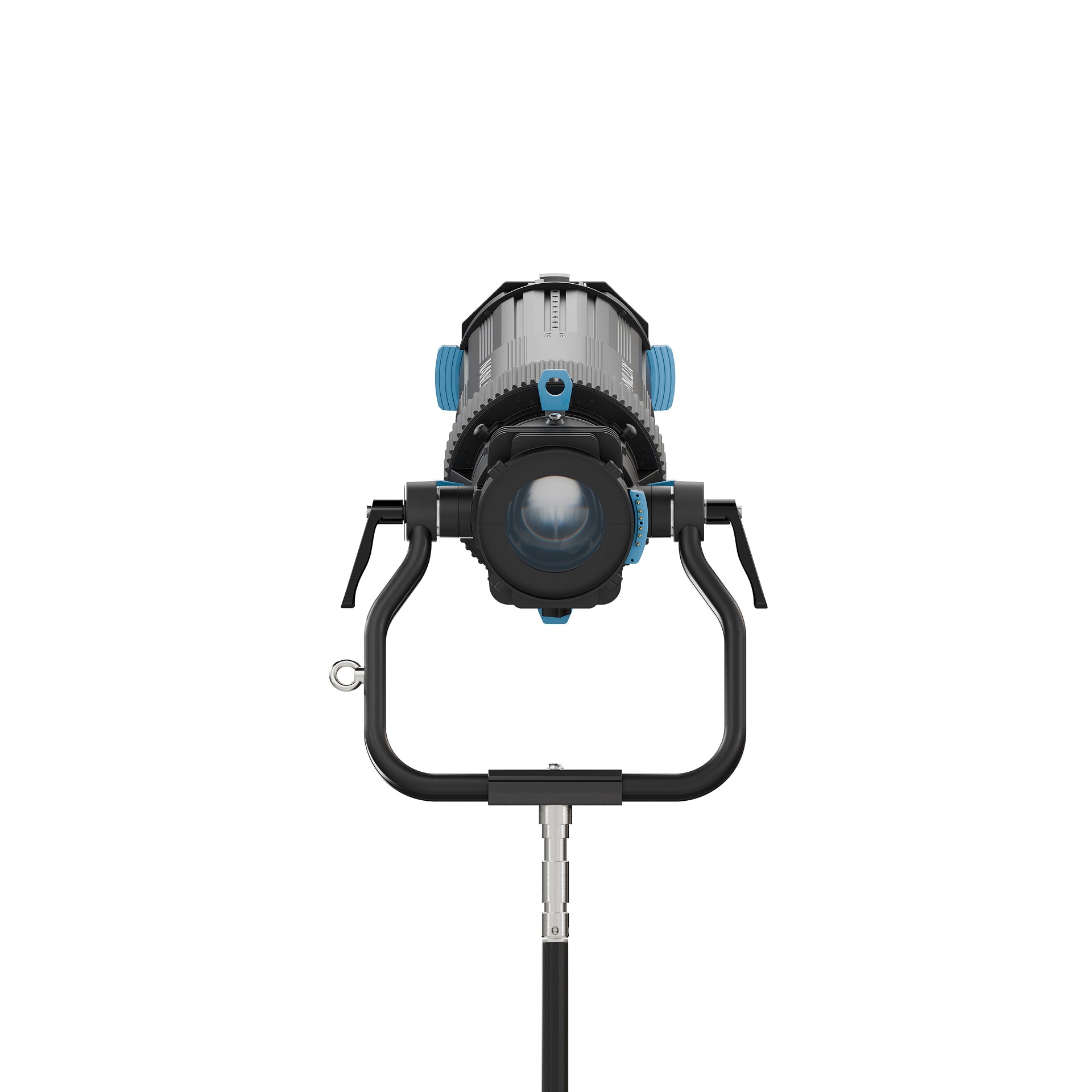

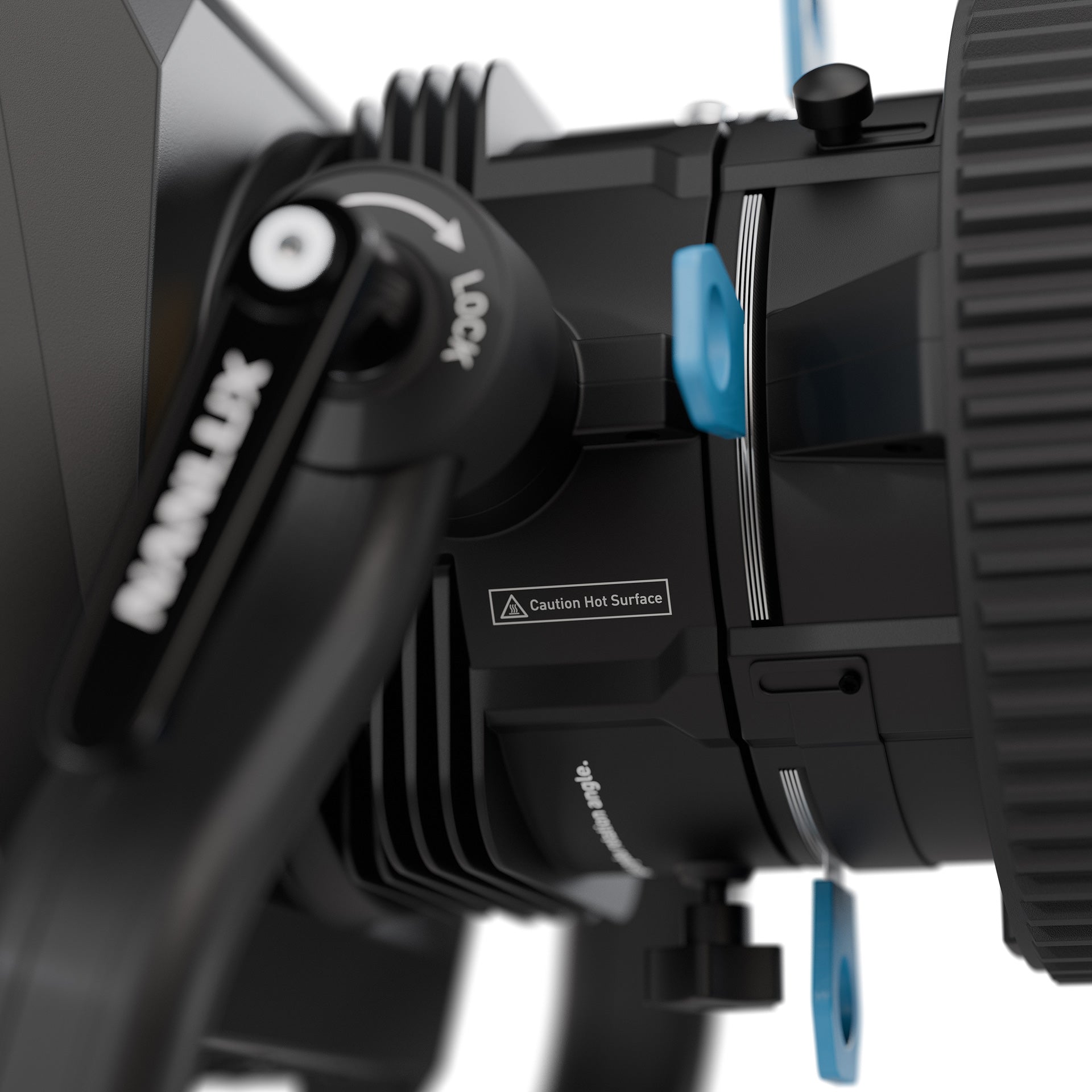

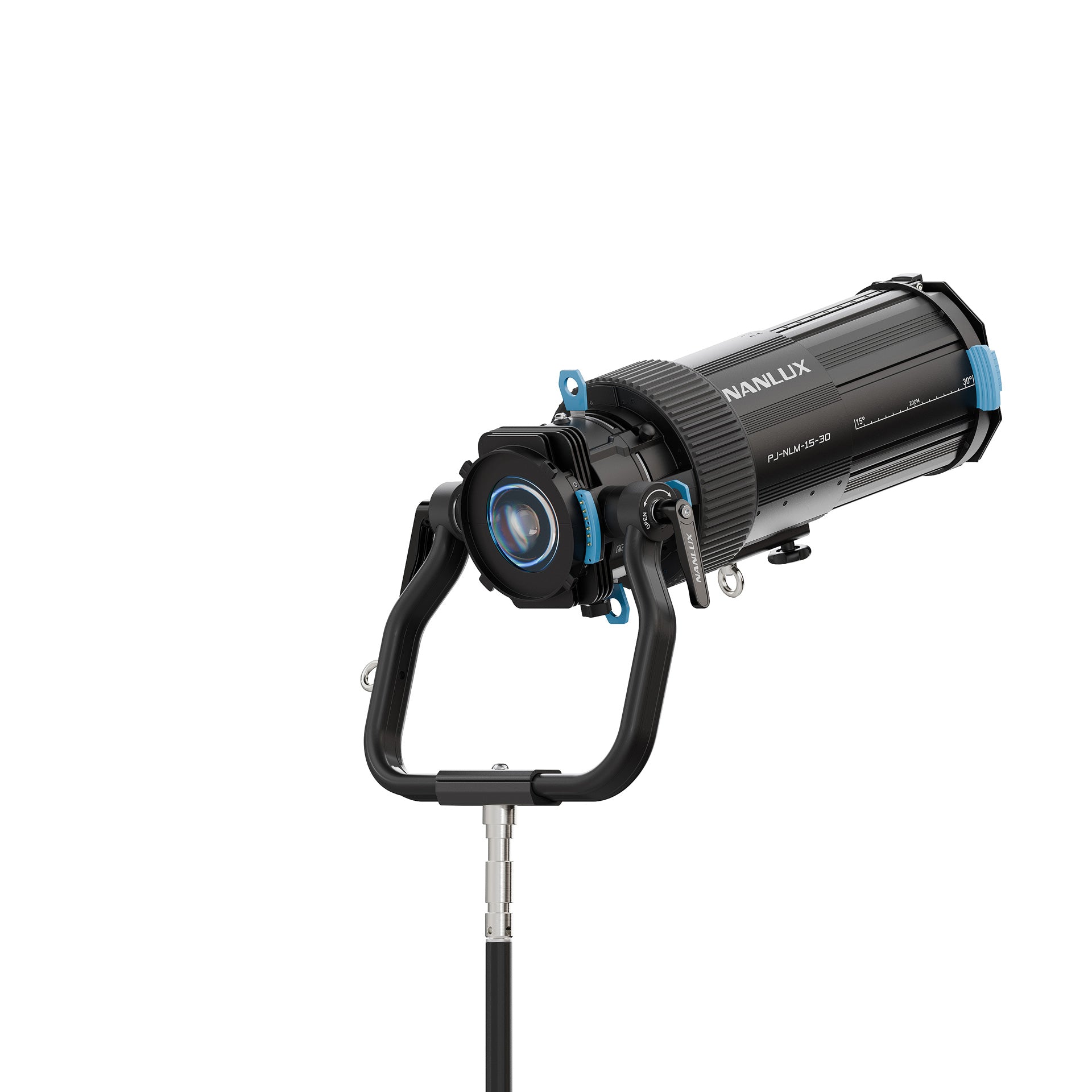

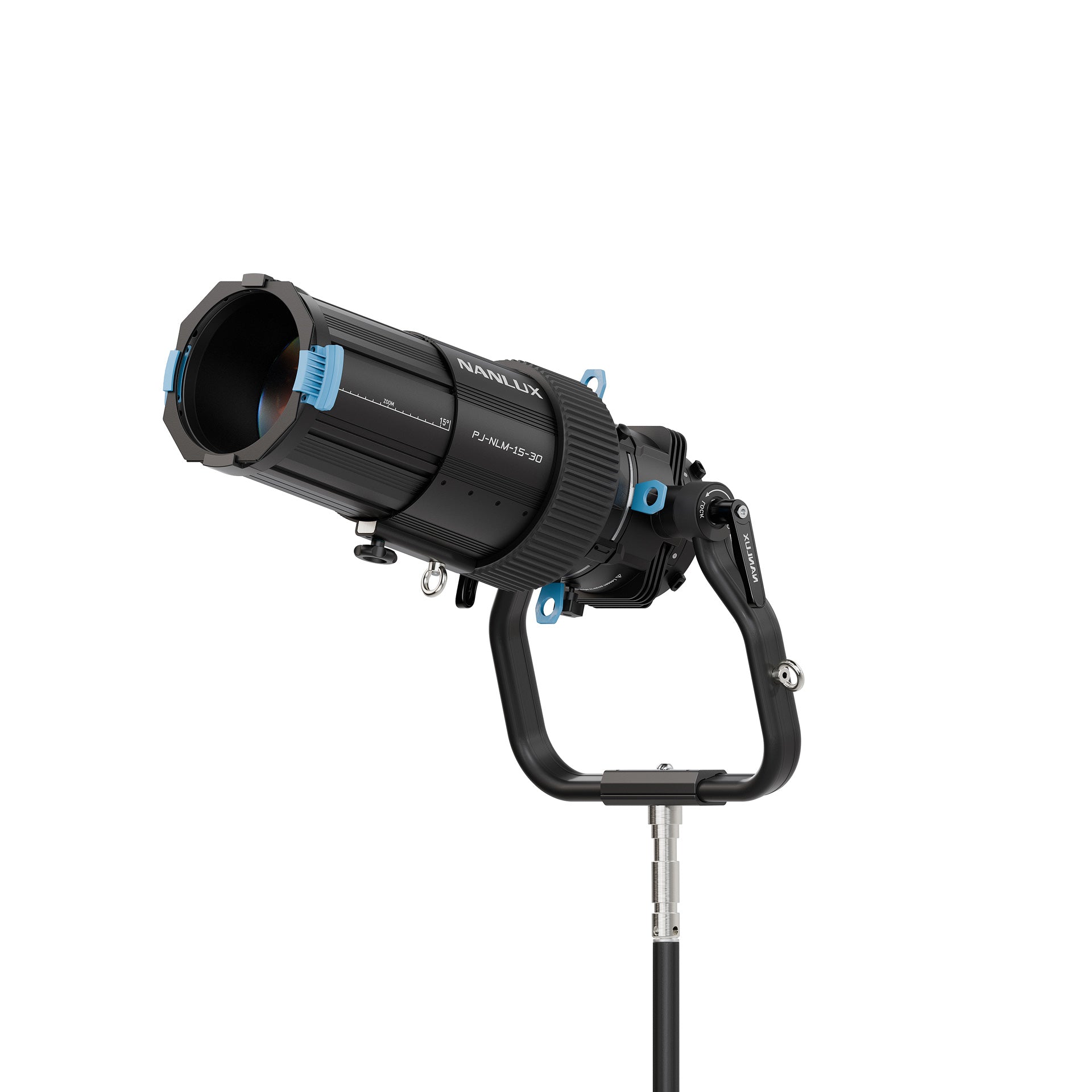

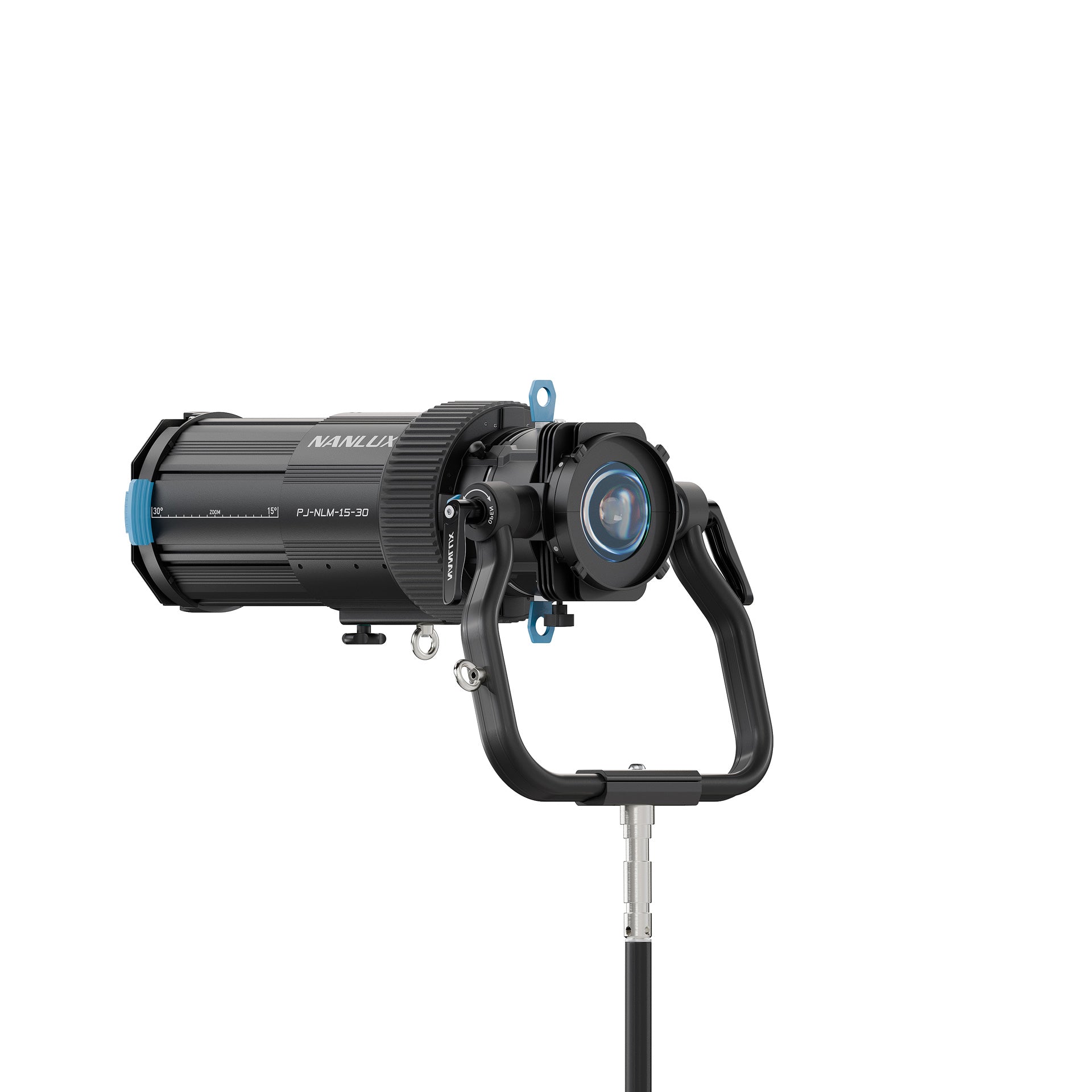

- Integrated yoke with 15° offset, locking handles, safety-cable eyebolts and anti-sway knob
Specifications
| Zoom range | 15°–30° |
|---|---|
| Size | 629.5 × 392.5 × 514.7 mm at 15°; 451.5 mm long at 30° |
| Weight | 11.85 kg (flight case 12.55 kg) |
Compatibility

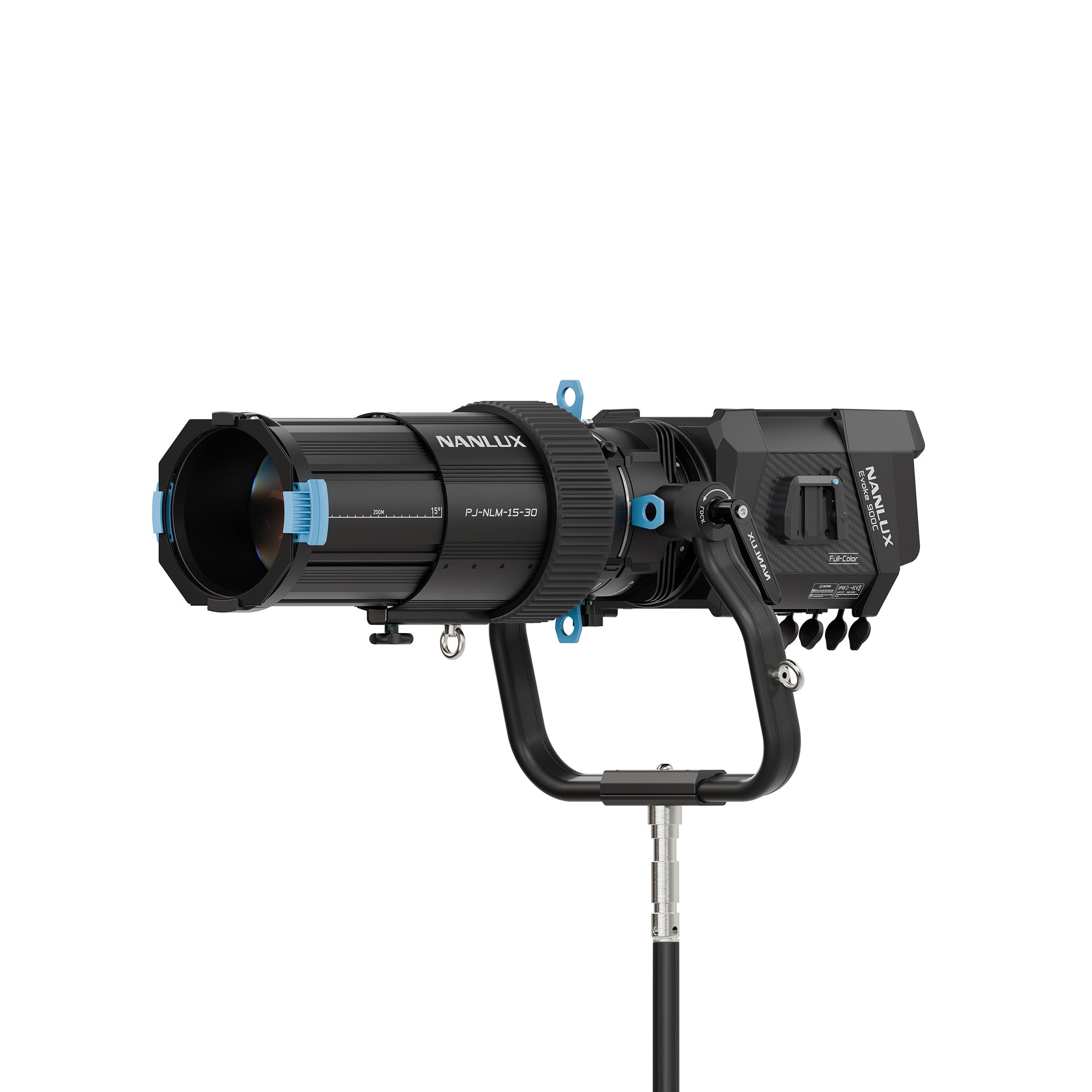

Evoke 900C / 1200 / 1200B / 2400B / 5000B. On the 5000B the fixture limits its output automatically.

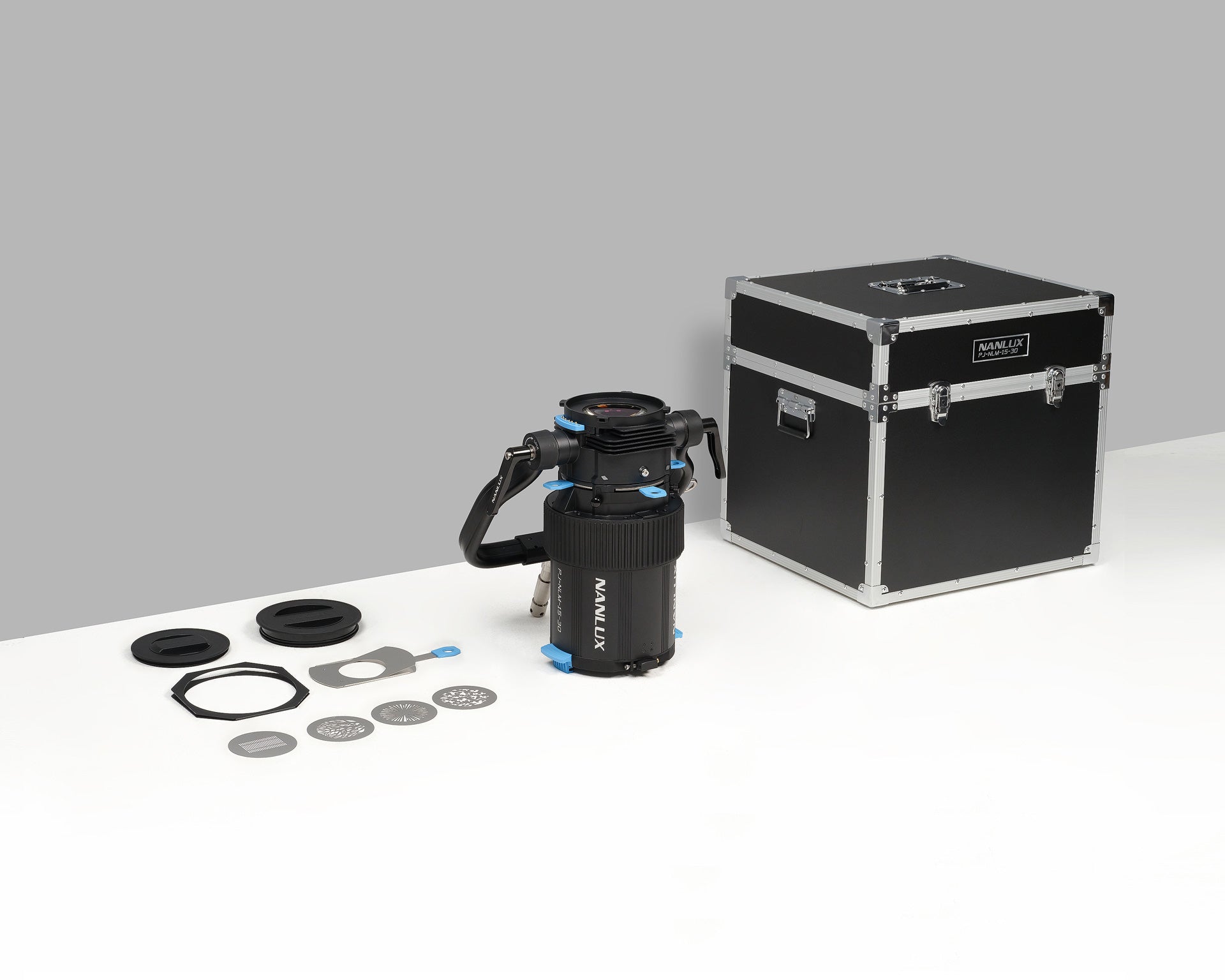

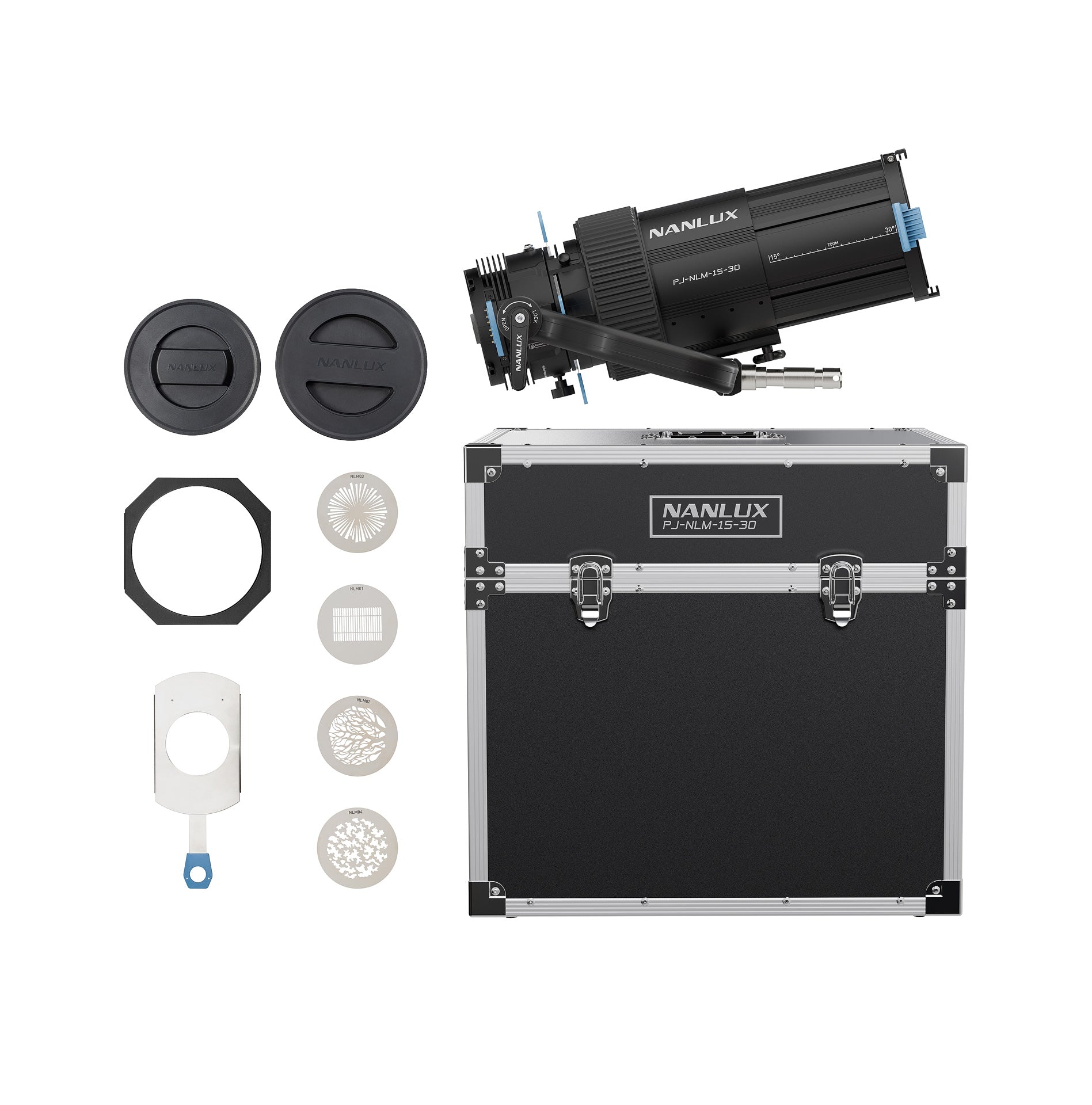

In the box
- Projection attachment 15–30°
- Front and back protective covers
- 4 × A-size gobos
- Gobo holder
- Gel frame

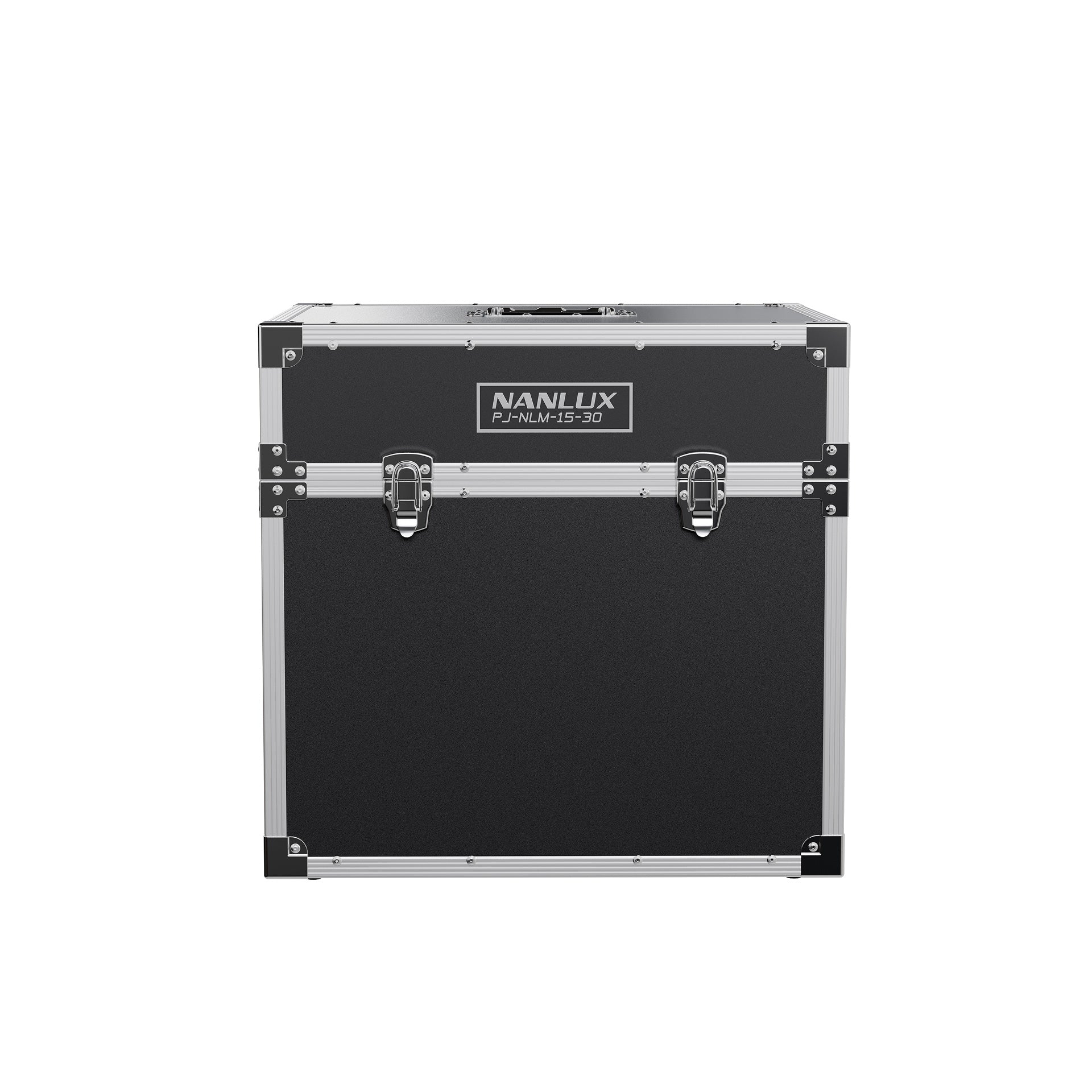

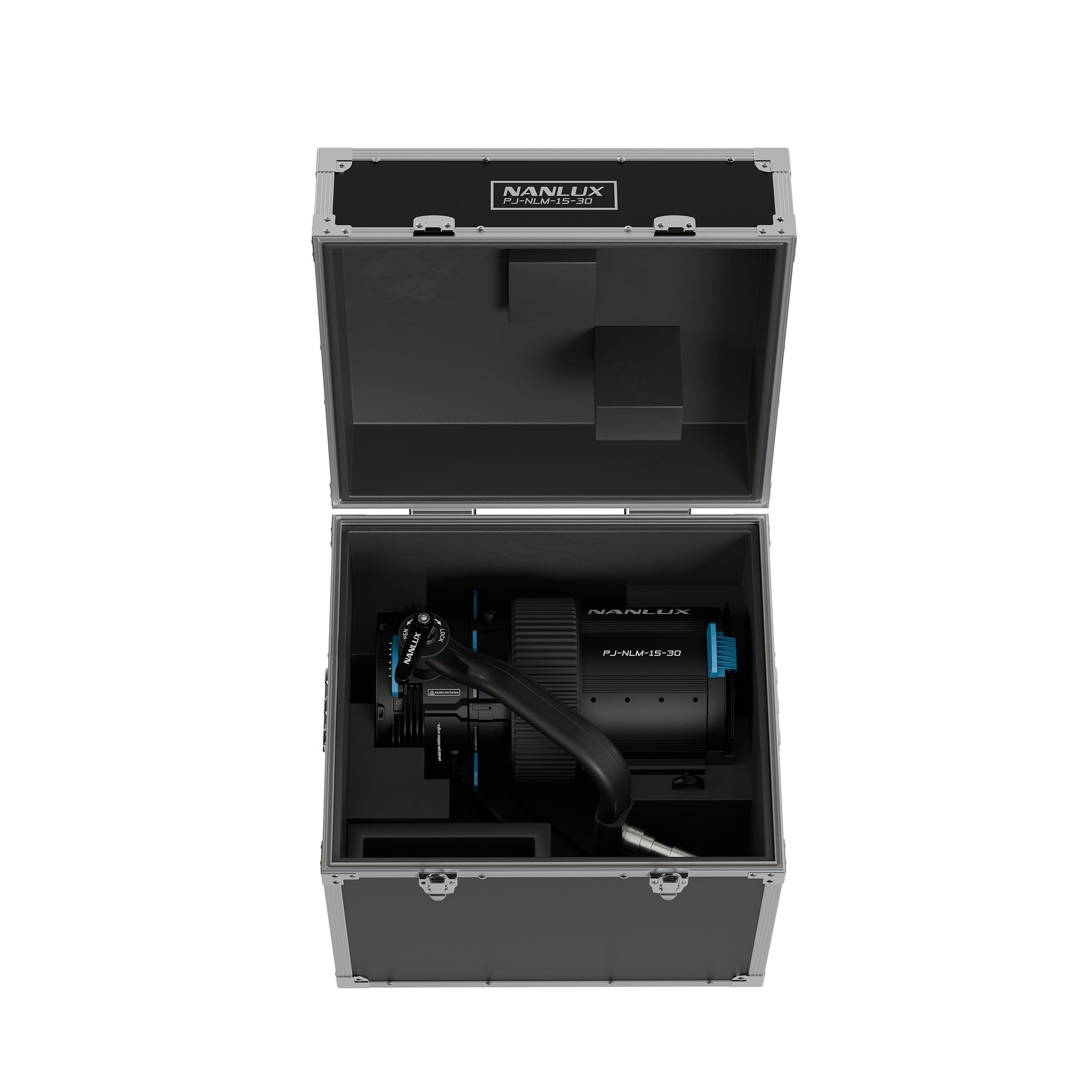

- Flight case
- User manual
