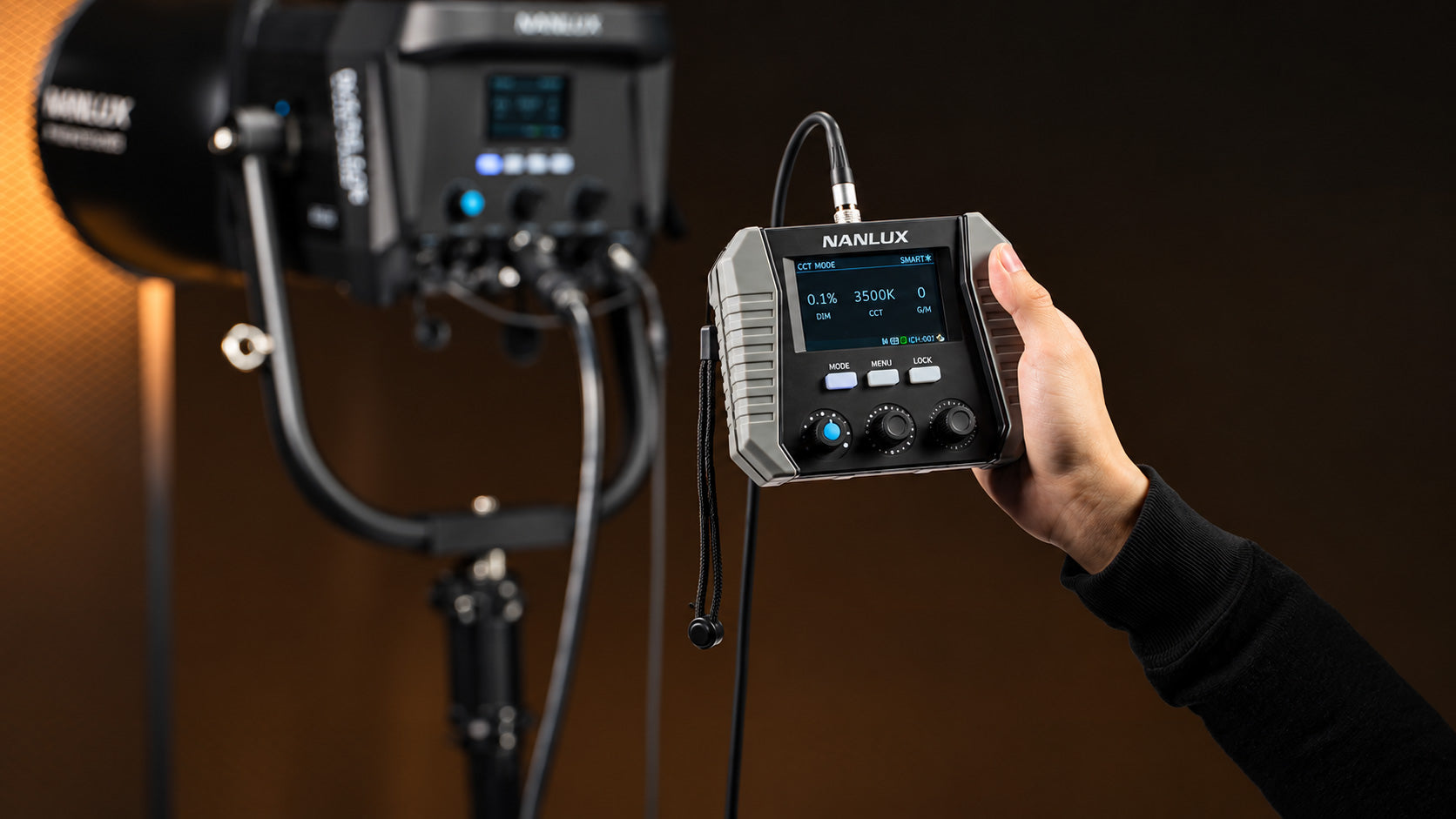

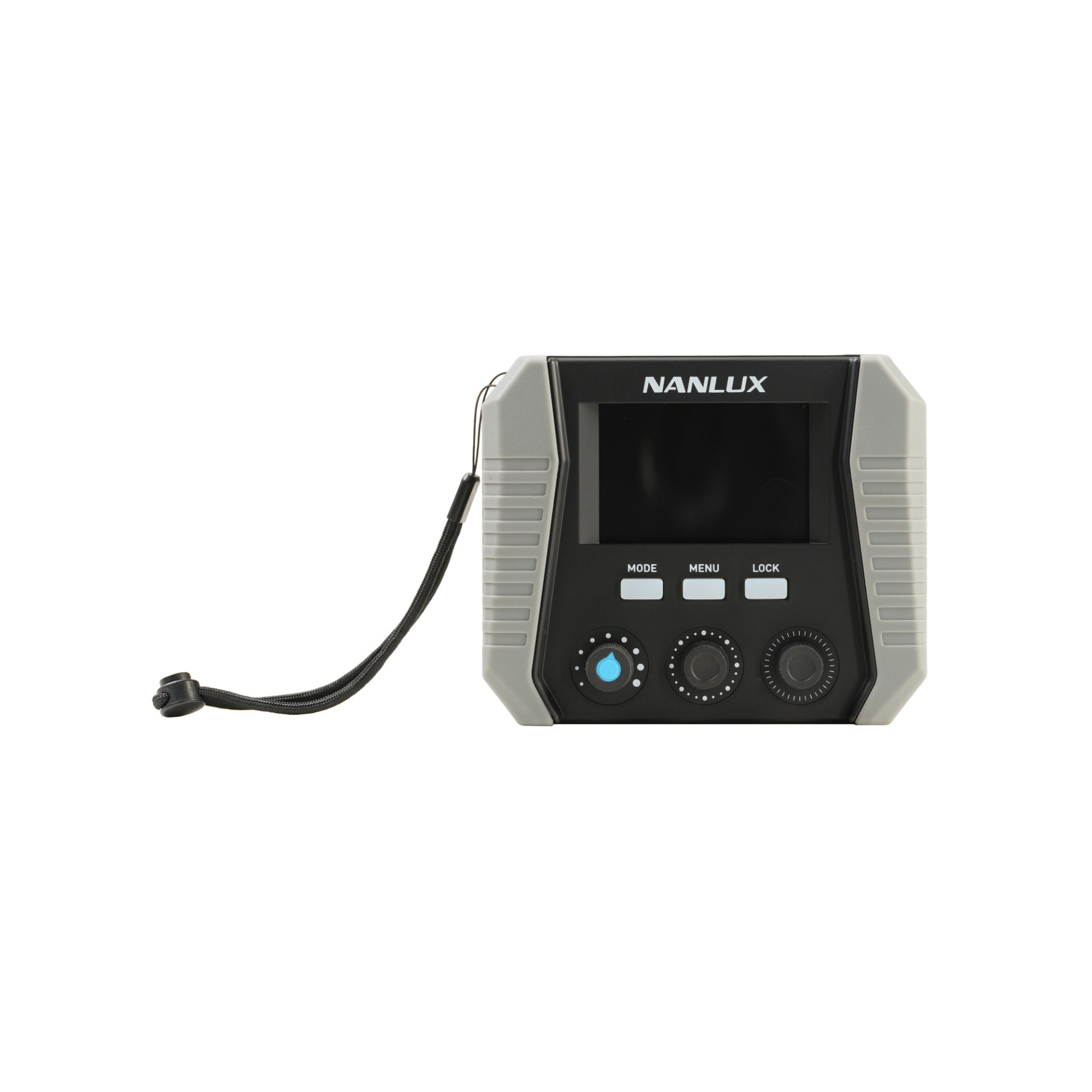

A wired controller that copies the physical controls of Evoke and Dyno fixtures, so the light can be run from up to 8 m away when it is rigged high. The left knob sets brightness in 0.1% steps, the middle knob sets CCT, and the right knob sets green/magenta. A short press toggles between zero and the current level.
The 8 m cable has self-latching 6-pin aviation connectors plus a USB connector. The Evoke 2400B powers the controller through the aviation plug alone; other fixtures also need the USB lead connected.
Specifications
| Display | 3.2″ |
|---|---|
| Controls | 3 knobs, 3 buttons |
| Cable | 8 m, 6-pin aviation + USB |
| Size | 142.5 × 120.5 × 40 mm |
| Weight | 0.29 kg |
Compatibility
Evoke 900C / 1200 / 1200B / 2400B / 5000B and Dyno series fixtures with a 6-pin wired control port.

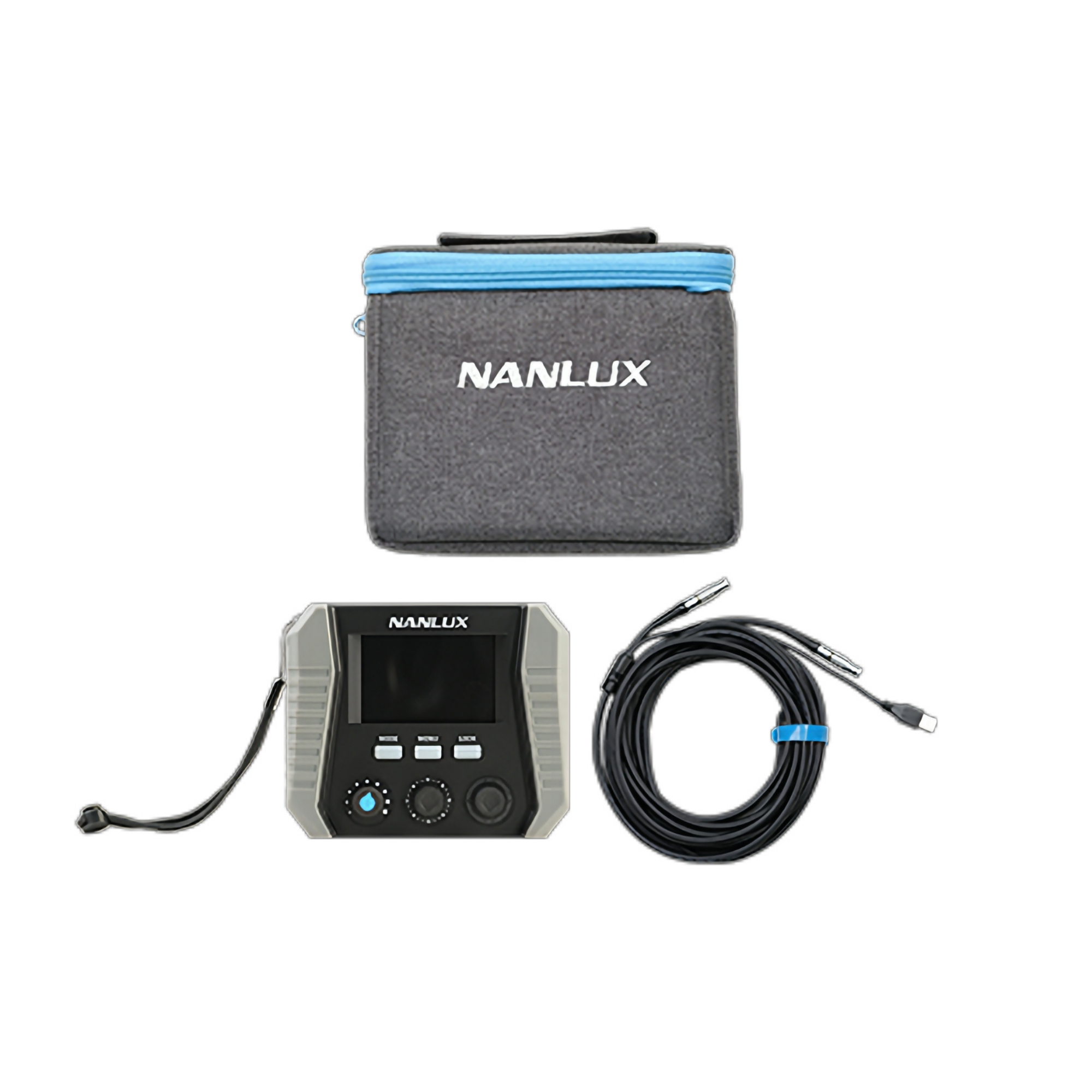

In the box
- 6-pin wired controller
- 8 m connection cable
- Carrying bag
- User manual
